Laser Beam Perimeter Fence Detectors
Commercial perimeter fence security system based on laser beam technology, accurate intrusion detection, the laser travels up to 500 meters, multiple beams and advanced signal processing technology can greatly filter false detection caused by environmental changes. Durable aluminum, fully-sealed, waterproof/weatherproof design offer reliable performance under harsh weather condition.
Perimter Intrusion Detection
Smart alarm monitoring system brings you peace in mind.

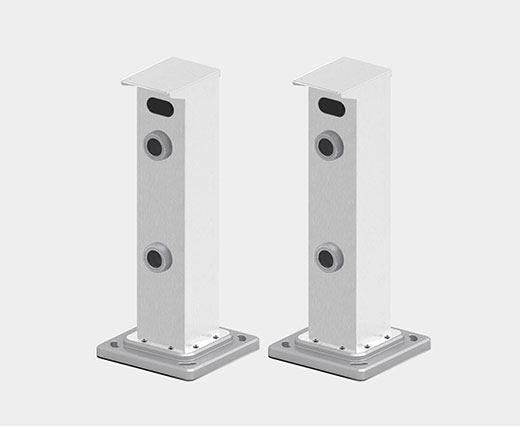

Alumnium enclosure
Plug-in optical lens module

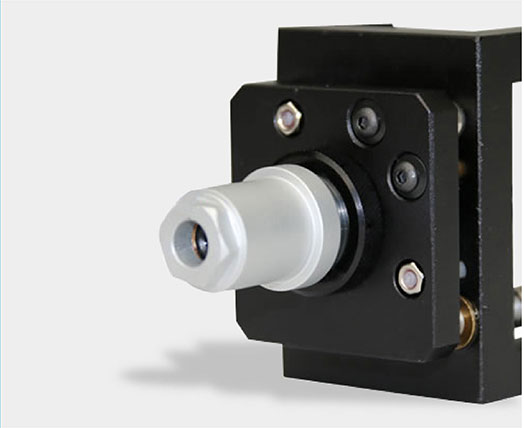

Laser Module

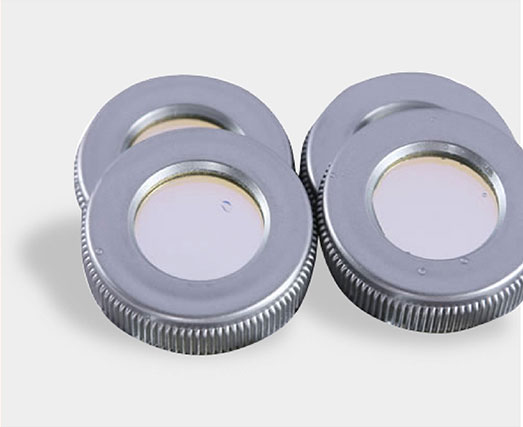

Special coated lens
Special coated lens
Class I Laser Radiation
Product Specification
- Model: ABF-2, ABF-4, ABF-6
- Laser wavelength: 808nm/980nm
- Transmission distance: 0-500 meters
- Beams: dual, triple, quadruple
- Detection method: beam transmission interrupted
- Working voltage: DC12V
- Working current: 180mA (emitter), 75mA (receiver)
- Lens angle: emission <3°, reception>10°
- Optical adjustable angle: horizontal ±30°, vertical ±30°(adjustable)
- Product dimension: 60x80x490mm, 60x80x644mm, 60x80x790mm
- Enclosure material: durable aluminum alloy
- Alarm time: 2s±1s (1-30s optional)
- Response time: 5ms – 500ms (adjustable)
- Working temperature: -40°C - 70°C
- Ingress protection: IP67
- Laser type: Class I
- MTBF: >120000 hour
- Anti-Explosion: Exibmb IIBT4 Gb
