Tuya central control panel with Zigbee Gateway

Tuya Smart Control Panel with Zigbee Gateway

The central control panel has built-in Zigbee 3.0 gateway that connecting up to 100+ smart devices. It supports seamless Tuya integration, you can control home appliances, smart devices, scenes through this panel. Based on Android 8.1 system, it's also your multimedia system that connecting up to 4 speakers.

Smart Home Hub with Music Amplifier

All-in-one smart home and multimedia system solution, can be easily installed inside a 2-gang electrical box.

5.5-inch IPS Screen with Knob Button

5.5-inch IPS Screen with Knob Button

Sleek modern central control panel for your house and office. Based on Rockchip Quadcore 2GB+16GB industrial standard hardware design ensuring high reliability and truly smooth operation. Tuya central control panel with knob button, it offers precise control for volume, music, light, temperature...etc. Furthermore, you're able to assign scenes to the knob button for quick and convenient operation.
4CH Audio Amplifier

4CH Audio Amplifier

It's not only a smart home hub, but also a music player with 120W audio amplifer. The amplifier can connect up to 4 speakers, it supports dual audio zones. Each audio zones can be controlled separately, you're able to play different music in each zones.

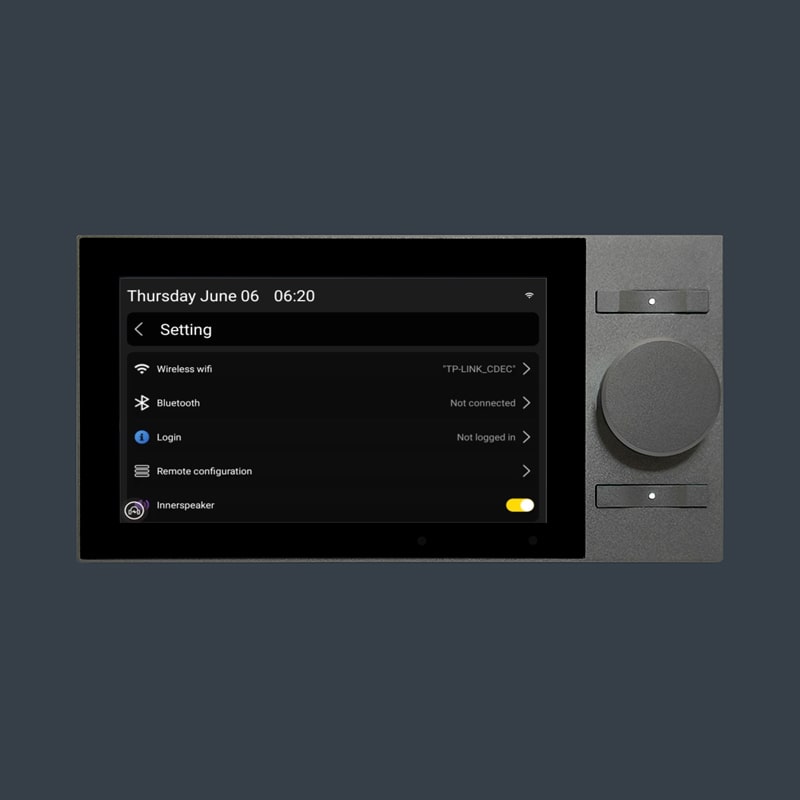

Tuya Zigbee 3.0 Gateway

Tuya Zigbee 3.0 Gateway

The central panel has Tuya Zigbee gateway built-in, hence it can connect 100+ smart devices such as security sensors, light switches, smart sockets/plugs, thermostats...etc various kinds of wireless devices based on Zigbee wireless technology.

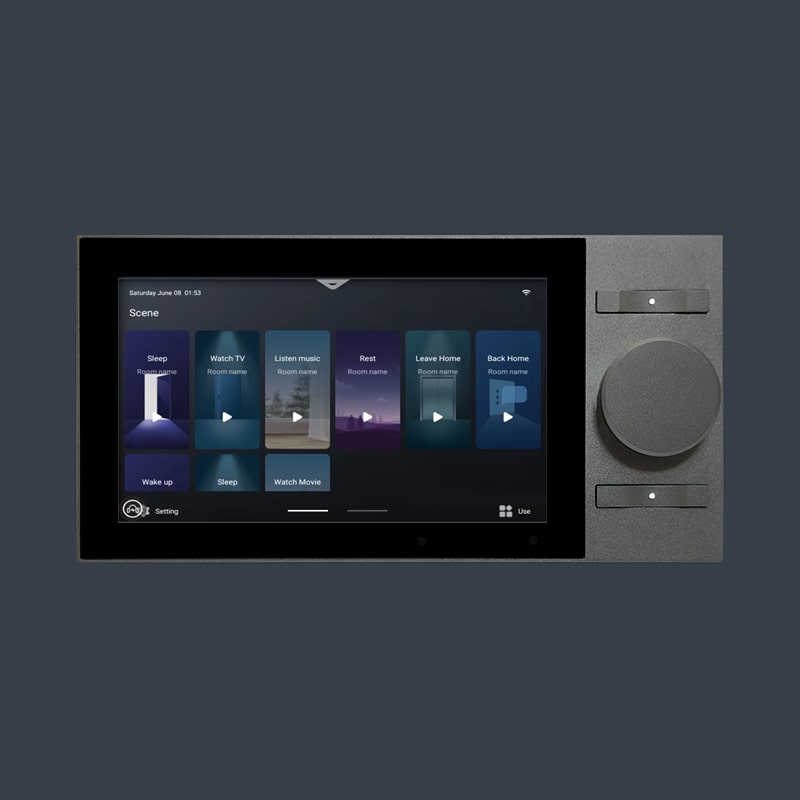

Alexa/Google Assistant Voice Control

Alexa/Google Assistant Voice Control

The Android smart control panel utilizes 4 microphones to pickup your voice. Based on Android 8.1 OS, it's a Android tablet that can install different apps. You're able to install your favorite voice assistant apps such as Alexa, Google Assistant. Moreover, it employs 4 microphones (microphone array) which can pickup voice commands within 10 meters.

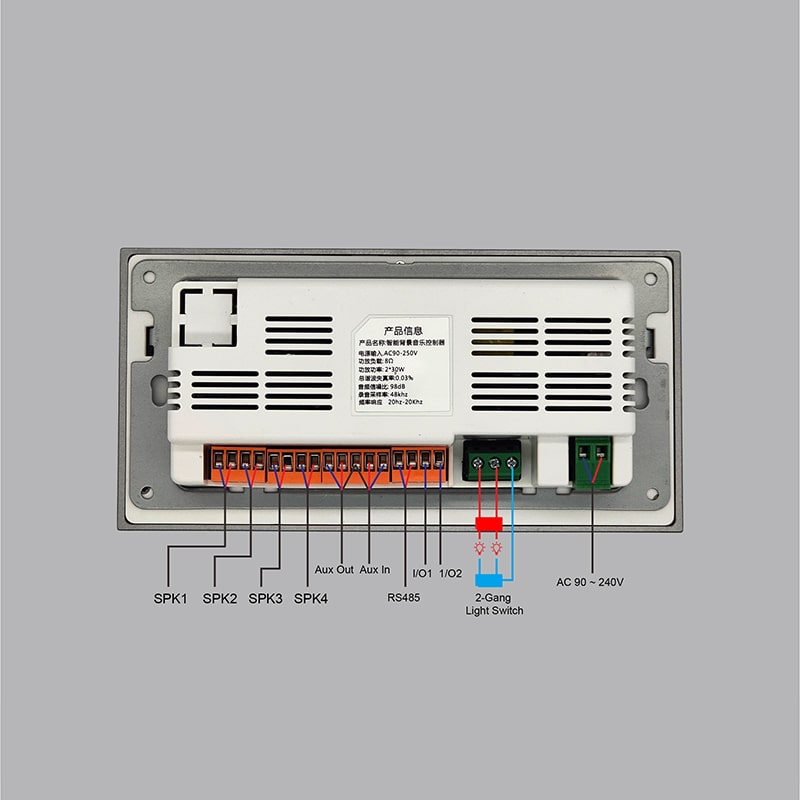

2-Gang Light Switch

2-Gang Light Switch

The control panel includes 2-gang light switch that can wire two lights, it turns your existing lights to be smart, and you're able to control them through the panel. Furthermore, it includes rich peripheral to provide good scalability. In addition to connecting up to 4 speakers, the hub includes AUX input and output to work with your conventional audio equipments (such as multimedia dock, CD/DVD players).
Remotely Control via Tuya Smart

Remotely Control via Tuya Smart

This control panel also can be added to your Tuya Smart app. Once it's added to your account, you're able to control it through smartphone anywhere anytime. You're able to switch it on/off, play music, adjust volume...etc.

Product Specification

  • Model: TUYA-H5
  • Power input: AC90~240V
  • Display: 5.5-inch IPS HD screen
  • Display resolution: 1280*800
  • OS: Android 8.1
  • CPU: Rockchip Quad-Core ARM
  • Hardware: 2GB RAM
  • Internal Storage: 16GB ROM
  • Audio Output: 4*30W
  • Audio impedance: 8Ohm
  • Audio Input: 1CH Aux
  • Audio output: 1CH Aux
  • Control interface: RS485
  • Wi-Fi: IEEE802.11 b/g/n 2.4G
  • Bluetooth: 5.0, 10 meters
  • External storage: microSD card slot (max. 256GB)
  • IoT platforms: Tuya, Mijia, Aqara, LifeSmart
  • Color: Grey/Champagne
  • Tablet dimension: 175*88mm
  • Gang box dimension: 172*80*60mm

Tuya Smart Control Panel FAQ

How to integrate this control panel to Home Assistant?

How to install Tuya smart control panel?

Install control panel
