1.3Megapixel HD Network IR Camera

1.3Megapixel HD Network IR Camera
5.0/5 rating (2 votes)

EW1170L/EW1180K/EW1181K are series of HD IP network IR camera for advanced surveillance systems, these IP cameras adopt advanced 1/3 inch progressive scan CMOS image sensor and TI DM365 core ARM processor. These cameras with with capable of displaying multiple resolution from D1  (D1:640*480) through 16:9 format 720P high definition, to full 1.3 megapixel (1280*720P) at real time (30fps). The cameras come with high performance black IR LEDs that allow camera to capture images reach up from 100ft to 125ft under complete darkness.  EW1170L with 36 pcs Infrared LEDs, night vision distance up to 100ft. EW1180K and EW1181K with 42pcs Infrared LEDs, night vision distance up to 120ft.

These cameras features with a 4mm to  9mm vari-focal auto iris lens, allow user to adjust the field view with ease for varies installation environment, with low illumination 0.1 lux@ F1.7,B/W:0 lux @ F1.7 (LED OFF), built-in with special IR cut filter, the camera with true day/night operation.

In addition, the cameras with professional heavy duty aluminum housing, and IP67 rated waterproof design for both indoor and outdoor applications, the cameras with 3-axis bracket for wall or ceiling mounting installation.

The key features

  • IP network IR camera
  • Max 1.3 megapixel 720P resolution
  • 1/3 inch progressive scan CMOS image sensor
  • Texas Instrument® DM365 ARM image processor
  • Resolution: 1280*720P@30fps, D1:640*480
  • ONVIF Compliant IP network cameras
  • 36/42pcs Infrared LEDs
  • Night vision distance up to 100ft/120ft
  • True day/night with IR-cut filter
  • Equipped with HD megapixel vari-focal lens 4mm to 9mm
  • Minimum illumination: Color:0.1 lux@ F1.7,B/W:0 lux @ F1.7 (LED OFF)
  • H.264 video compression algorithm
  • Dual stream, main stream and sub-stream (3G/4G mobile view)
  • 3-Axis wall mount bracket
  • IP67 waterproof grade
  • Optional function TF card storage, Power over Ethernet (PoE), Wifi, P2P

1/3 inch progressive scan CMOS with DM365

Unifore IP cameras adopts the 1/3 inch progressive scan CMOS image sensors with combination of Texas Instruments DM365 CPU for high quality images and advanced functions in long time operation.

Texas Instruments DM365/368

Super high definition resolution at 1.3 mega pixel

Unifore IP cameras provides high quality images and maximum 1.3 mega pixel resolution (720P), these cameras are quality cameras for your advanced IP surveillance systems.

D1 VS 1.3 megapixel

 Low latency video streaming

As we know, video streaming latency is one of disadvantages for IP cameras. Our Unifore IP cameras adopt advanced and powerful CPU, with low latency at video streaming (120ms).

low latency

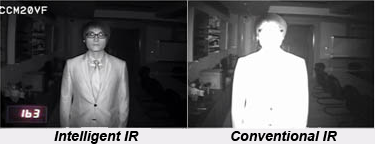

Smart IR control for adjusting the infrared emitting level, and cover the longest distance at night without saturation or over-exposure.

Smart IR control for anti-saturation


Free standalone VMS

Supporting with  EX0216 video management system software, which is an IP surveillance software works with IP cameras and with function of video recording setting, monitoring and event management functions.

 Video management system software

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Product's image gallery

IR bullet IP Camera Front ViewCost effective IP camera side view IP camera front view IP IR bullet camera side view IP IR bullet camera side view IP camera swivel bracket view

Technical Information

Model  EW1170L EW1180K EW1181K
Image device 1/3" Progressive Scan 1.3Mega Pixel CMOS
Effective pixels 1280x720pixels
Sensitivity 0.1 lux@ F1.7,B/W:0 lux @ F1.7
Automatic lens Control DC Iris
Lens 4-9mm Vari-focal Megapixel lens
IR 36pcs Infrared LEDs 42pcs Infrared LEDs 42pcs Infrared LEDs
IR Distance 100ft 120ft 120ft
Shutter Speed 1/60Sec~ 1/100,000Sec, Shutter Speed Adjustable
Audio/Two-way None Microphone input / Line output Microphone input / Line output
IP Specifications
Video Encoder H.264 Compression
Video Profile


Frame Rate Up to 30fps for 720P
Image Setting Saturation, illuminance, Contrast Ratio Adjustable Through Client or IE.
Streaming Controllable frame rate and bandwidth Constant and variable bit rate (H.264)
Audio Encoder None G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed
Security Password protection, IP address filtering, user access log
Users 10 simultaneous unicast users
Network 10/100M Ethernet, RJ45
Alarm Triggers None Intelligent video motion detection and external input
Motion Detection 10-zone video motion detection
Alarm Events Event server: FTP server, SMTP server, Samba server. File upload video clip or snapshot
Notification via email, HTTP, and TCP
External output activation
None Go preset and go camera tour (RS485)
None Audio alerting output
Video Buffer Pre- and post- alarm buffering
Power Supply 12V DC
PoE None None IEEE 802.3af (optional)
Dimensions 191.5×80×72 mm 285 × 176 × 138 mm 285 × 176 × 138 mm
Weight 0.9kg
Lens Mount  CS Lens Mount
Connectors RJ-45 10BaseT/100BaseTX, DC jack RJ-45 10BaseT/100BaseTX DC jack 1 alarm input and 1 output RS485 Audio in / Audio out
Protection Class IP67 Indoor/Outdoor
Operating Temperature -10°C to 60°C
Operating Humidity  20% ~ 80% (non-condensing)
Viewing System
OS Windows® XP, Vista, Windows 7
Browser IE 6.0 or later / Firefox 2.0 or later / Safari
Cell Phone With 3GPP player
Video Player  VLC, Quick Time, Real Player
Optional NVR Program HD Network monitoring manage software

Product's dimension

1.3 megal-pixel IP network IR camera

1.3 megal-pixel IP network IR camera Dimension
