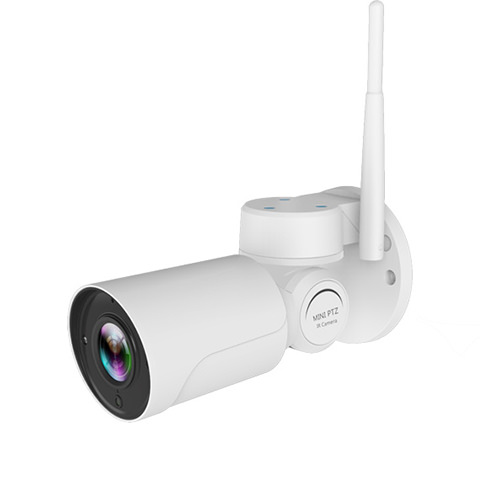

1080P/2MP Mini PTZ Bullet Camera

The innovative outdoor camera can replace your existing HD cameras, it features 180 degree pan and 55 degree tilt can let you adjust the viewing angle remotely. It is equipped with a focal length 2.8-12mm motorized zoom lens support 4x optical zoom. The PTZ function can not only bring you the great flexibility on installation, but also it can cover a large area and capture detailed image with exceptional high image quality.

Offering exceptional clear video by utilizing Sony Starvis 2-megapixel CMOS image sensor - IMX323. Sony IMX323 is today’s most competitive CMOS sensor dedicating for video surveillance applications. It not only captures vivid color image, but also can capture crystal clear image at night, its low light sensitivity is excellent. By incorporating a high-performance microcomputer Hisilicon Hi3516CV300, the camera supports 1920x1080p image resolution at 25/30fps video, video compression standard includes H.264/AVC and H.265/HEVC. Being supported H.265, the camera is able to deliver HQ video under 50% bitrate setting comparing with H.264 video.

Beside the 1080p video capability, the camera also supports 3D noise reduction, ROI video encoding, image mirror, flip, corridor mode, motion detection, digital image stabilizer, digital WDR, lens distortion correction, defog, smart IR. The camera also comes with several useful modules it has a 2.4G Wi-Fi module built-in to support wireless network connection, a microSD card slot to support on-board video storage, other optional peripheral interfaces including Power over Ethernet, Audio I/O.

Product Features

• Creative, modern, sleek outdoor camera design
• 180 degree pan, 55 degree tilt, 4x optical zoom capability
• Fast and easy installation with motorized zoom lens
• Remotely adjust viewing angle and focal lens
• Industry leading 1080p camera module built-in
• Sony IMX323 Starvis CMOS supports 0.001Lux low light
• Hisilicon high-performance Hi3516CV300 SoC (released in 2017)
• 1920x1080 25/30fps video capability
• DWDR, 3DNR, HLC, BLC, 3A
• H.264/AVC and H.265/HEVC codec
• Smart ROI video encoding
• HQ video stream under 50% lower bitrate
• Outdoor 30 metres night vision
• Motion detection
• Text overlay, privacy mask
• SMTP, DDNS, uPnP, QoS, RTSP, FTP, SNMP protocols
• Free P2P service for remote video monitoring through smartphone App
• Built-in Wi-Fi module to support wireless installation
• Built-in microSD card slot (max. 128G)
• Standard ONVIF compliant
• IP66 rated weatherproof design

Bullet Camera Supports Pan/Tilt/Zoom

Mini PTZ bullet IR camera can replace your existing HD camera for both home and business video monitoring applications. In addition to supporting FHD video, PTZ has been implemented to the design of camera. It can support 180 degree pan and 55 degree tilt rotation, as well as 4x optical zoom. The PTZ function can not only make installation easier and bring you a great flexibility, but also can provide you a 180 degree viewing angle, hence you can install less number of cameras for outdoor video monitoring. You are able to rotate the camera remotely, and zoom in to have a close-up view, identify people’s face character or car plate license number clearly.

Industry-leading 1080p/2MP Solution

The CMOS image sensor is IMX323 from Sony, it’s a video surveillance dedicated CMOS sensor features vivid color and superior low light sensitivity performance. Incorporating the latest Hisilicon Hi3516CV300 SoC, the SoC supports DWDR, 3D noise reduction, lens distortion correction, and more to fine tune image. Therefore the camera can output high quality 1920x1080 25/30fps video. Matching 4x optical zoom, you will have a camera supporting 4x1080p = 8MP = 4K video resolution.

H.264/AVC and H.265/HEVC Video Encoding

Supporting H.264 and H.265 video compression standard, you are able to connect it with your existing H.264 or H.265 video system in the future. H.265 as the latest video compression standard offers many benefits, it can deliver live video stream under 50% lower bitrate than H.264 while retain high quality image, which in turn, you can save 50% consumption on both bandwidth and video storage space. So, a huge saving on cost of network equipment.

Technical Information

• Model: HS-SLB405ICP-V04-WF
• CMOS type: 1/2.9” progressive scan CMOS image sensor Sony IMX323
• Effective pixels: 1920x1080 (1080p/FHD/2MP)
• Electrical shutter: 1/25s - 1/300000s
• Day/night: Auto/Color/Monochrome
• Mini. Illumination: 0.001 Lux B/W; 0.1Lux Color
• Audio codec: G.711 ULAW
• Image settings: AWB, AGC, exposure, brightness, sharp, contrast adjustable
• Image enhancement: BLC, HLC, 2D/3D noise reduction, defog, WDR
• Image rotation: flip/mirror/corridor mode
• Privacy mask: support
• Motion detection: support
• System SoC: Hi3516CV300
• Video compression: H.264/AVC; H.265/HEVC
• Frame rate: PAL 50Hz 25fps; NTSC 60Hz 30fps
• Bitrate control: 128kbps - 8Mbps adjustable; VBR/CBR
• Image quality: 6 level adustable under VBR; Auto under CBR
• Focal length: 2.8-12mm motorized zoom lens (HS2023ICP-V04)
• Aperture value: F1.2
• Optical zoom: 4x optical zoom (HS2023ICP-V04)
• IR range: 30 metres
• Pan rotation: 0°~180°
• Tilt rotation: 0°~55°
• Pan/Tilt speed: 0.1°~20°/ s 0.1°~10°/ s
• Preset: optional
• Network: 2.4G Wi-Fi 802.11 b/g/n ; 10/100Mbps RJ45
• On-board storage: max. 128G microSD card
• Audio I/O: optional
• Remote access: IE9, IE10, IE11 web browser
• Online users: max. 4 online users for real-time stream monitoring
• Network protocol: TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, FTP, SMTP
• ONVIF: Profile S, 2.4 version
• Power supply: DC12V
• Installation: ceiling and wall mountable, included bracket
• Operating condition: -30℃~60℃

Product Dimension
