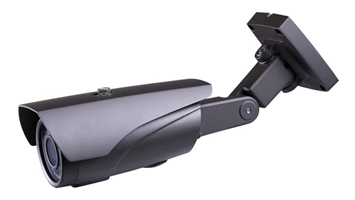

3 Megapixel IP security camera with PoE WiFi
EW2391K New generation outdoor 1080P IP security camera, equipped with latest 3 megapixel camera module, and adopting 1/3 inch progressive scan CMOS image sensor and "Davinci" DM368 powerful image signal processor to deliver impressive and ultra clear resolution up to 2048x1536P.
Similar to other IP cameras, it adopts the dual streaming technology and support H.264, MJPEG video compression, offering two way audio function, as well as with one BNC local video output. It has built-in web server, which allow user to access the IP camera for remotely control or live view from anywhere.
This camera can support Power over Ethernet (PoE) function, which can simplify the whole installation process, and offering hassle-free installation to reduce the cost. Additionally, it can be added with WiFi module which can allow wireless connection, and local SD card slot for allowing up to 32GB local video storage.
This model is very suitable for long range surveillance, it has a vari-focal lens 9mm-22mm which can permit users to adjust the filed of view to monitor either short or long distance. It has 8 pieces high power infrared laser LEDs which can illuminate wide angle and long range distance at night. It's true day/night surveillance camera with its removable IR-cut filter.
EW2391K IP camera is perfect choice for your outdoor video surveillance, it has unique IP66 rated full concealed design, which allow camera to withstand extreme weather condition, and working outdoor for a very long time. The unique manual zoom/focus design can allow user to adjust the field of view with ease, at same time without compromising the weatherproof feature.
The key features
High definition resolution with 3 megapixel
Delivering high definition (HD) video for round-the-clock surveillance over IP network. Adopting 1/3 inch progressive scan CMOS image sensor to deliver 2048x1536P@20fps resolution,
3D noise reduction with WDR
Together with powerful image processing technology and with 3-dimensional noise reduction and Wide Dynamic Range function to allow camera working properly under challenging light illumination environment.
True day/night surveillance with long range IR
To adapt to constantly changing lighting conditions, this IP camera is equipped with removable IR-cut filter, and which can automatically switch between day/night modes. Moreover, it has 8 pieces of high power laser infrared LEDs which can help camera to cover long range and wide areas at night.
Power over Ethernet (PoE) function
The EW2391K incorporates with Power over Ethernet (PoE) technology which compliant with IEEE 802.3af standard. This technology can permit the IP camera receive the power supply from PoE switch. It can simplify the installation process and no need the power cable for the IP camera.
IP camera gallery
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical Information
Model | EW2391K |
Operational | |
Image device | 1/3" Progressive Scan 3.0Mega Pixel CMOS |
Effective pixels | 2048×1536P |
Sensitivity | Color:0.6lux@ F1.2,B/W:0 08ux @ F1.2 |
Automatic lens Control | DC Iris |
Lens | 9mm-22mm vari-focal HD lens |
AGC & W/B | Auto |
ICR | Yes |
Infrared | 8 pcs Laser Infrared LEDs |
Night vision | 50 meters |
Audio/Two-way | Microphone input / Line output |
IP Specifications | |
Video Encoder | H.264 Compression |
Video Profile | 2048*1536@15fps;1920*1080@30fps,1600*1200@30fps, 1280*720@30fps |
Frame Rate | Up to 30fps for 1080P |
Image Setting | Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE. |
Streaming | Controllable frame rate and bandwidth Constant and variable bit rate (H.264) |
Audio Encoder | G.726/G.722/G.711 Standard Code,64Kbps Transfer Speed |
Supported Protocols | TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP, ICMP, POP3,NTP and RTSP |
Security | Password protection, IP address filtering, user access log |
Users | 10 simultaneous unicast users |
Application Programming Interface | Open API for software integration SDK |
Alarm Triggers | Intelligent video motion detection and external input |
Motion Detection | 10-zone video motion detection |
Alarm Events | Event server: FTP server, SMTP server, Samba server. File upload video clip or snapshot |
Notification via email, HTTP, and TCP | |
External output activation | |
Go preset and go camera tour (RS485) | |
Audio alerting output | |
Video Buffer | Pre- and post- alarm buffering |
Electrical | |
Power Supply | 12V DC |
PoE | IEEE 802.3af (Paid function) |
Mechanical | |

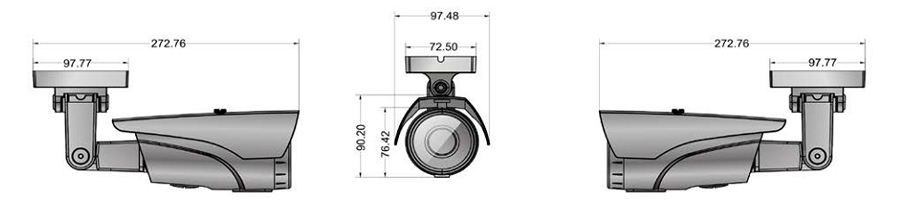

Dimensions | 285 × 176 × 138 mm |
Weight | 1.65kg |
Ingress protection | IP67 |
Connectors | RJ-45 10BaseT/100BaseTX DC jack 1 alarm input and 1 output RS485 Audio in / Audio out |
Environmental | |
Protection Class | Indoor/Outdoor |
Operating Temperature | -10°C to 60°C |
Operating Humidity | 20% ~ 80% (non-condensing) |
Viewing System | |
OS | Windows® XP, Vista, Windows 7 |
Browser | IE 6.0 or later / Firefox 2.0 or later / Safari |
Cell Phone | With 3GPP player |
Video Player | VLC, Quick Time, Real Player |
Software | |
Optional NVR Program | HD Network monitoring manage software |
