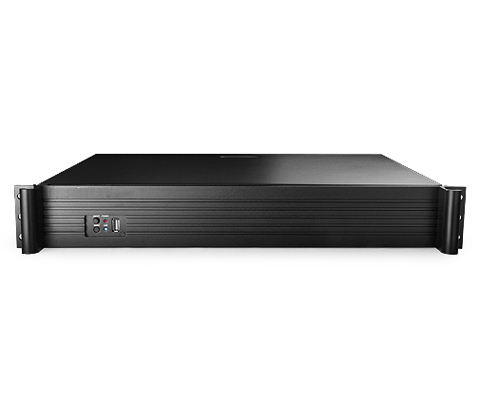

16CH 1080P NVR EN7253

16CH 1080P NVR EN7253
4.4/5 rating (5 votes)

EN7253 is an real time recording network video recorder for IP surveillance system, with high performance and easy to setup, this NVR can support up to 16 IP cameras at resolution of 720P in real time or 9 IP cameras recording at 1080P in real time. The NVR come with RJ45 Gigabit Ethernet ports for supporting high speed data transmission. This NVR can support 1 channel max 8M stream, 1 channel 720p support MAX 4M stream, total network bandwidth is 72M. This NVR is full function network video recorder contains all features, and supporting multiply recording modes, with free bundled NVR management software, you can easy to setup an IP surveillance central monitoring station in low cost.

EN7253 is embedded Linux Operating System, adopting high quality dual stream H.264/MPEG-4 codec compression, and maximum support two pieces 3.5 inch SATA HDDs, with extra e-SATA port for extending unlimited storage space. This NVR with standard high definition 1080P HDMI video output port for working with HDTV. With audio input and output for two way intercom. This is a full features NVR, with all functions and supporting 3G, Wifi remotely monitoring or PTZ control.

1080P/720P Recording at real time

This is 16 channel NVR which is ideal for high definition IP recorder to your advanced IP surveillance system, and it supports video recording at high definition 1080P/720P resolution in real time. It can connect up to 16 1080P IP cameras via a network and perform recording and playback pictures from cameras in the system.

CIF vs D1 vs 960H vs 720P vs 1080P

4x SATA HDDs with e-SATA interface

With 4x SATA ports for interior video storage, and with another e-SATA interface to supporting unlimited video storage space. This can resolve a limited internal storage space, and back up and record eSATA data in real time.

e-SATA NVR

HDMI + VGA high resolution local display

Offering full HD (1920x1080P) resolution with a HDMI and VGA video output interface, which can be connected to HDMI HDTV or monitor for high definition monitoring.

HDMI VGA NVR

Two way audio

The 2-Way Audio function enables interactive audio transmission via networks. It allows a manager and a monitoring staffer to interactive and communicate in real time even in long distances. It can also issue a warning for emergency situations using its speakers.

2 way audio NVR

Technical Information

Model EN7253
General
IPC Channel 4 Channel
Stream quality 25CH 720p/16CH 1080p/8CH 3MP/4CH 5MP
Video Resolution 720P(1280×720)/1080P(1920×1080)/3MP (2048×1536)/5MP(2592×1944) 1~30fps
Recording Mode Manual, Full Time, Scheduled, Motion Detection, Alarm Event
Playback 1/4/9/16-channel playback simultaneously
Recording storage 4x SATA HDD ports, One E-SATA port
Backup method External USB HDD, E-SATA HDD, USB disc, Network
Remotely surveillance
IE browser Support LAN management, client management and remote IE visit
Dual stream Individual setting by each channel
Mobile Phone Surveillance Support (iPhone,Windows Mobile,BlackBerry,Symbian,Android) operation system
Wireless Support 3G and WIFI
Compatibility

ONVIF

Mouse Zoom Click any area and zoom in or zoom out on the image by mouse
Motion Detection Motion detection area selection, sensitivity 6 grade selection
Search  By time (calender), backup, by event,
IP video input 16-channel 1080p; 25-channel 720p
Video Output HDTV HDMI, VGA
Video compression H.264/MPEG-4 AVC
Audio Compression Standard G.711
Audio Output 1CH BNC
Audio Talk Two-way intercom
Alarm Input 4CH
Alarm Output 1CH
Network RJ45 Ethernet port(10M/100M/1000M)
RS485 Full duplex RS485, 19 PTZ protocols
USB Two USB 2.0 ports
E-SATA One External SATA port
SATA HDD Ports 4x SATA HDD ports; 6TB per bay
Electrical
Power Supply AC 110 - 240V
Consumption ≤30W without HDD
Mechanical
Dimensions  361mm×71mm×441mm
Weight 2.99kg
Ingress protection None/Indoor usage
Connectors RJ-45
Environmental
Protection Class Indoor
Operating Temperature -10°C to 55°C
Operating Humidity 20% ~ 80% (non-condensing)
