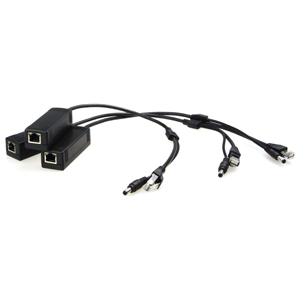

1CH IEEE802.3af PoE Splitter Adapter

1CH IEEE802.3af PoE Splitter Adapter
4.5/5 rating (4 votes)

Professional PoE splitter (adapter) to work with PoE switch for offering Power over Ethernet solution to your IP surveillance systems. It meets the IEEE802.3af PoE standard which can maximum output 15.4 watts. This adapter with built-in 10/100Mbps RJ45 port to support data transmission. This PoE splitter can output 12V DC which is used to provide power to standard IP cameras.

    This PoE splitter mainly used below applications:
  • Power over Ethernet solution to IP cameras
  • High-speed telecommunication system
  • Wireless Access Point Layout transmission and power supply
  • Long-distance broadcast television transmission
  • VOIP telephone solution

Technical Information

Product Name Mini PoE Splitter
Model POE Splitter
Description 10/100M IEEE802.3af Mini PoE Splitter
Port Feature Input: PoE port, Output: 5V , RJ45
Media 100Base-TX (≤100, Catalogue 5 cable)
Protocol IEEE 802.3i;IEEE 802.3u;IEEE 802.3x Flow Control;IEEE 802.1af DTE Power via MDI
PoE Port Powered Port
PoE Standard IEEE802.3af (15.4Watts)
PoE Type Support Both Mid-span and End-Span
PoE Feature Output Power: 15.4 Watts.
PoE PIN 4/5+、7/8- and 1/2+、3/6-
Environment Operating temperature: 0 to 55° C Storage temperature: -20 to 75°C
EMI Safety CE mark,commercial,FCC Part 15 Class B,RoHS
PoE Budget AC100-240V 50/60Hz
Dimenssion 88x30x25mm, Longth of cable: 400mm
After-Sales One year' garantee, Lifetime Maintenance
Packing List PoE Splitter, Certification, User manual, Warranty card
