2 megapixel indoor IP dome camera vandal-proof
ED2271V is HD megapixel IP camera which can capture ultra clear images at 1600x1200 pixel resolution, or 1080P (1920x1080). ED2271V is compact size vandal-proof dome camera for indoor application. The camera with aesthetic dome housing design, easy to blend into interior decoration of residential and commercial buildings. This compact size camera with powerful 2 megapixel fixed lens for wide view angle coverage surveillance.
Being equipped with latest 1/3-inch progessive scan CMOS image sensor (Aptina AR0331) and TI DM368 ARM processor. The camera can not only deliver HD resolution images, but also provide advanced features. This camera is suitable for any surveillance application which requires HD monitoring. It supports H.264/MJPEG simultaneous dual codec streaming (main streaming in HD for recording and display, sub-streaming in D1 or CIF for remotely surveillance via 3G mobile devices), two way audio transmission, also advanced video management and analysis functions include motion detection, tampering detection and privacy mask zones. Optional functions include TF storage card for local video storage, Power over Ethernet (PoE) for achieving low cost installation, as well as WiFi connection for connecting IP camera to router via complete wireless.
ED2217V is IR dome camera which is built-in 30pcs black infrared LEDs, 30 meters IR range, and it's equipped with IR-cut filter for true day/night surveillance. The camera is adopting 3-axis rotation mechanism design, allowing camera to wall mount or ceiling mount installation. It's Onvif 2.0 compliant IP camera, working with thrid-party IP surveillance devices and software such as video management software, NVR, Decoder...etc.
Key featuers
- 1/3-inch Aptina AR0331 + Davinci DM368
- Resolution 1600x1200 or 1920x1080 16:9 full HD resolution
- Vanal-proof dome design for indoor application
- 4-9mm vari-focal megapixel resolution lens (2.8-12mm optional)
- IR-cut filter for true day & night surveillance
- Dual-codec H.264/MJPEG
- Two-way audio intercom
- RS485 control
- Digital wide dynamic range (D-WDR)
- 2D noise reduction
- Multiple network monitoring: Internet browser, VMS, CMS, App
- Smart motion detection
- Privacy mask zones
- Onvif compliant
- TF card storage, PoE, Wifi (paid options)
IP Dome Camera Gallery

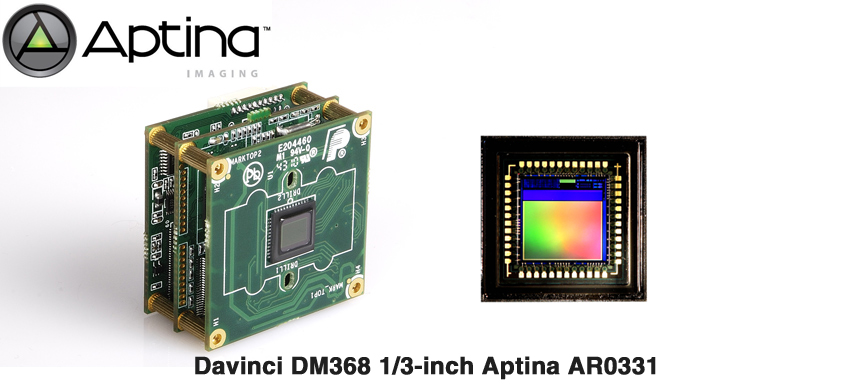

The Aptina AR0331 sensor was created to meet the needs of the growing full HD video-centric surveillance market with the exceptional performance of the new 2.2-micron pixel sensor featuring Aptina™ A-Pix™ technology. The AR0331 targets the mainstream 1/3-inch optical format surveillance camera market with excellent image quality.
High quality images at 2 megapixel resolution, 1600x1200, or 1920x1080 (1080P) HD
H.264/MJPEG video codec for providing high resolution images with small file size. Transmitting video stream occupy minimum network bandwidth.
Built-in IR-cut filter for capturing true color images at day and low noise B/W images at night.
Adopting 3D noise reduction, provide ultra clear images at day and night
Two way audio intercom
