2 megapixel IP camera bullet IR network camera

2 megapixel IP camera bullet IR network camera
4.8/5 rating (5 votes)

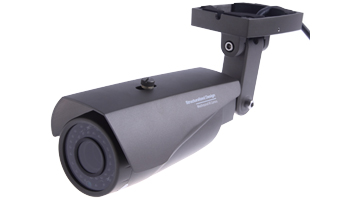

Protecting your residential and business with our latest 2MP IR bullet IP camera with affordable price. EW2280K is adopting Aptina 0331 2 megapixel progressive scan CMOS image sensor, with resolutions up to 1920 x 1080 @25fps, Aptina is one of leading innovator of CMOS imaging technology, Aptina AR0331 is 1/3-inch optical format CMOS image sensor, providing excellent image quality. with features of low light and dynamic range capabilities enable EW2280K surveillance camera to capture HD video in the most challenging environments.

DM368 image processor is advanced ARM CPU designed for IP network cameras. The processor can support dual stream and H.264/MJPEG codec video compression, advanced data processing capabilities, enables camera deliver 2 megapixel HD resolution at 25fps. It supports two way audio for immediate surveillance applications. It allow remotely talk to anyone at the camera site with additional speaker connected to the camera, through other IP camera, user can reply back, supporting G711 audio compression.

More over, this camera includes with 4-9mm vari-focal lens and with IR-cut filer for true day & night surveillance, it's equipped with 42pcs infrared LEDs, 150ft IR range, with BNC D1 test video output, supporting RS485 contro, and Onvif compliant, the camera can working with third-party VMS and NVRs. Optional function including Power over Ethernet (PoE), and SD card storage, as well as Wifi connection.

Key features

  • 2 megapixel full HD 1080P resolution
  • Up to 1920x1080 resolution at 25fps
  • Multiply resolution selection: 1920x1080, 1280x960, 1280x720, 720x480, 640x480
  • 1/3-inch Aptina AR0331 2MP Progressive Scan Image Sensor
  • Texas Instruments Davinci DM368 ARM CPU
  • Professional aesthetic bullet camera design
  • H.264 and MJPEG simultaneously dual-stream
  • 42pcs IR LED and night vision distance 150ft
  • True day/night monitoring with IR-cut filter
  • 4-9mm megapixel vari-focal lens
  • two way audio intercom
  • Audio compression at G711
  • Supporting RS485

2 megapixel resolution (1920x1080)

Delivering full 1080P HD quality images, maximum 1920x1080 resolution.Ultra fine images with digital zoom. 2 megapixel resolution is 6 times larger than D1 resolution.

2 megapixel resolution

DaVinci™ DM368 as core technology

DaVinci™ DM368 is the ARM9 video codec processor. Adopting the DaVinci™ DM368 and Aptina CMOS image sensor as core technology, delivering crystal clear multi-format video at up to 1080P H.264.

DaVinci DM365, DM368 Chipset

H.264 Video Codec

Compared to the MPEG4, the advanced video compression H.264 is capable of providing high quality images without loss at substantially lower bit rates. The H.264 provides compression that is 89-34% higher than that of the MPEG4.

H.264 vs MPEG4

ICR Day&Night

Equipped with mechanical IR-cut filter, when light falls down to a certain level, the camera switches to monochrome mode automatically. IR-cut technology to make camera providing true high quality image at day and night. The function of IR-cut in security camera is fixing the color distortion, and increase the bright light at night.

Monochrome mode at night

Free VMS

The Unifore Video Management System is an IP-Surveillance software that works with the IP cameras to provide video monitoring, recording setting and event management functions.

free vms
