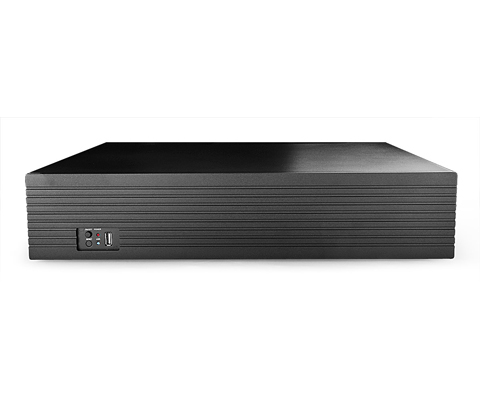

36CH H.264 NVR Hi3535 EN7533
This is a 2U rack size professional network video recorder (NVR) suitable for video recording applications where local recording is required. 36CH NVR embedded with Linux OS, and supporting 36CH video recording at 720P or 960P, or 25CH at 1080P resolution, or 8CH 3 Megapixel (MP) resolution, 4 CH at 5 Megapixel resolution. This NVR is Onvif compliant, working with third-party IP cameras (IPC) from AXIS, SONY, Panasonic, SANYO, BOSCH, SAMSUNG, Honeywell, VIVOTEK, HIKVISION, DAHUA, Histream, Grandstream, TOPSEE, Launch, WISION, HYVISION, WAPA etc. This NVR can connect up to 8 units SATA HDDs, up to 6 TB per drive, with one E-SATA interface for unlimited storage space expansion. It adopts dual video streaming technology, main stream for video recording and display, sub-streaming at low resolution for remotely surveillance via 3G mobile devices.
Key features
The NVR Backview (click to enlarge)

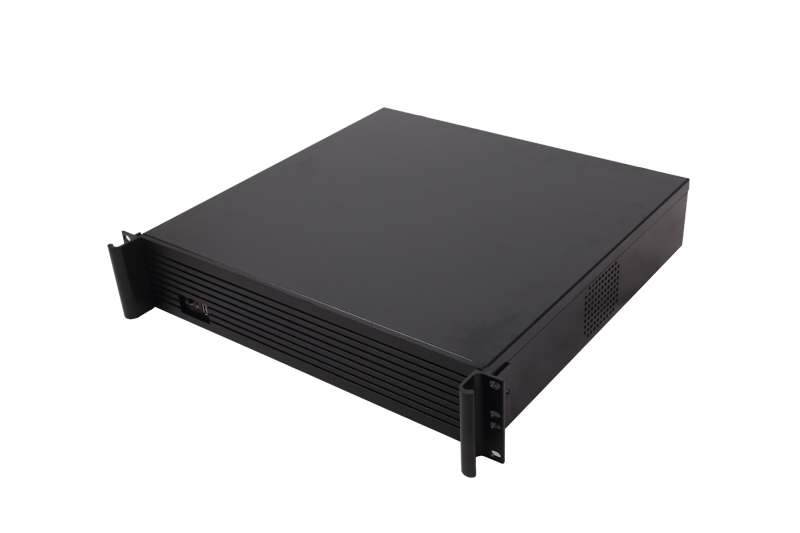

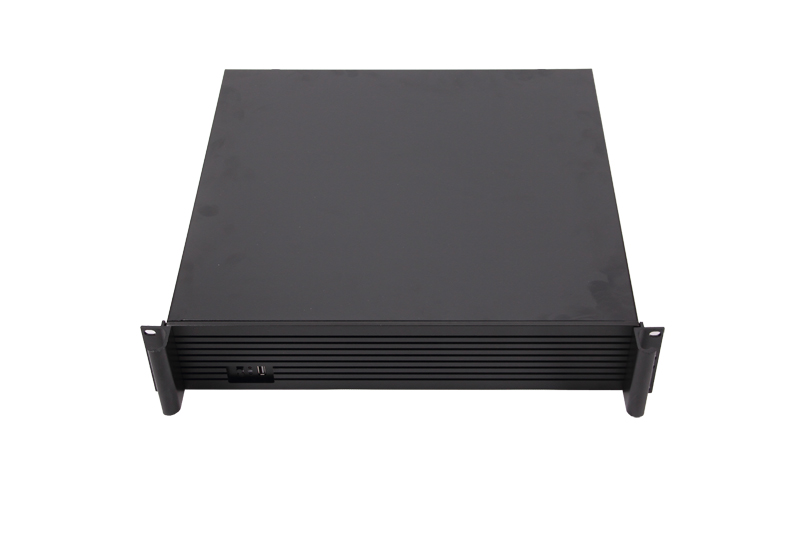

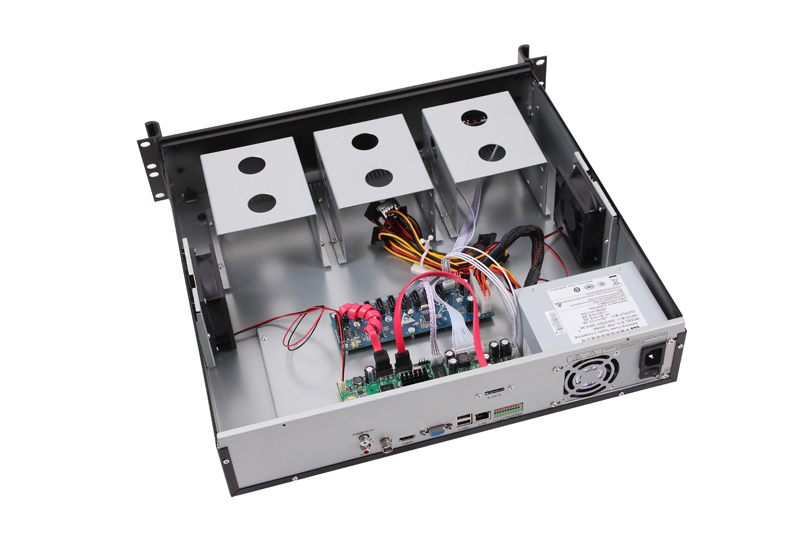

Product's gallery
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical information
| Model | EN7533 |
| General | |
| IPC Channel | 36 Channel |
| Stream quality | 36×(1280*720/960),25×(1920*1080), 8CH 3MP, 4CH 5MP |
| Video Resolution | 720P(1280×720)/1080P(1920×1080) 1～30fps |
| Recording Mode | Manual, Full Time, Scheduled, Motion Detection, Alarm Event |
| Playback | 4 Channel playback simultaneously |
| Recording storage | 9x SATA HDD ports, One E-SATA port |
| Backup method | External HDD, E-SATA HDD, USB disc, Network |
| Remotely surveillance | |
| IE browser | Support LAN management, client management and remote IE visit |
| Dual stream | Individual setting by each channel |
| Mobile Phone Surveillance | Support (iPhone，Windows Mobile，BlackBerry，Symbian，Android) operation system |
| Wireless | Support 3G and WIFI |
| Compatibility | Onvif 2.0, compatible third-party IP cameras, DVS. |
| Mouse Zoom | Click any area and zoom in or zoom out on the image by mouse |
| Motion Detection | Motion detection area selection, sensitivity 6 grade selection |
| Search | By time (calendar), backup, by event, |
| IP video input | 1 Channel 10M/100M/1000M self-adaptive LAN port |
| Video Output | HDTV HDMI, VGA, BNC (CVBS) |
| Video compression | H.264/MPEG-4 AVC |
| Audio Compression | Standard G.711 |
| Audio Output | 1CH BNC |
| Audio Talk | Two-way intercom |
| Alarm Input | 4CH |
| Alarm Output | 4CH |
| Network | RJ45 Ethernet port(10M/100M/1000M) |
| RS485 | Full duplex RS485, Support 19 PTZ protocols |
| USB | Three USB 2.0 ports |
| E-SATA | One External SATA port |
| SATA HDD Ports | 9x SATA HDD ports |
| Electrical | |
| Power Supply | Voltage：AC110～240V |
| Consumption | ≤30W without HDD |
| Mechanical | |
| Dimensions | 440mm×432mm×90mm |
| Weight | 7.4kg |
| Ingress protection | None/Indoor usage |
| Connectors | 2x RJ-45 10BaseT/100Base/1000Mbps TX |
| Environmental | |
| Protection Class | Indoor |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 20% ~ 80% (non-condensing) |
Vikoon Nitiroj
Dear Sir/Madam,
I am Vikoon Nitiroj who worked for NW Computer Co., Ltd. in Thailand as a project engineering manager. I am interesting in your NVR product model EN7533 36 ch. Could you please quote your best price to me asap c/w your term and conditions in USD. I need your best price not later than Monday 25th. Your prompt action would be highly appreciate.
Best regards,
Vikoon Nitiroj.
reply
Obasogie
We have these 3 type of camera implemented ED2581W, EW2591D & EP2345. we are have problem adding the Cameras to the NVR. Only EP2345 cameras can be added. we cannot add ED2581W, EW2591D to the NVR.
NVR model: EN7533 - 36CH 720P/960P High Definition NVR
Your Urgent Help is highly solicited
reply
Unifore
1. Each network cameras should have the correct network settings (e.g. unique IP address, correct gateway IP).
2. You can connect the camera to the NVR directly, search the camera on the NVR then add it one by one.
3. You also can manually add the cameras to the NVR by inputting correct ONVIF information (ip address, protocol, port number, user name and password)
https://www.youtube.com/watch?v=p8bn87thj2M
reply
