4 Channel HD PoE NVR Kit Home Camera System
The Unifore NVR-960POE High Definition IP Security System adopts latest advances in IP camera technology. This NVR kit contains everything you need to monitor/secure your home and business. This video surveillance system includes 4 PoE IP cameras which support plug-and-play installation, it's easy to setup and install, extra power cables and power supply are not required. Connecting the IP camera to PoE NVR, then turn on the power of NVR, the system starts working.
NVR-960POE contains 4 PoE IP cameras which adopts weatherproof (IP66) design to withstand extreme weather conditions, and it's suitable for both indoor/outdoor surveillance applications. This camera adopts progressive scan CMOS image sensor from Aptina to capture motion images without blur, delivering 1.3 megapixel resolution detailed images at 25/30fps. This camera is equipped with 3.6mm fixed lens to provide you wide angle monitoring, and its inside 36pcs infrared LED illuminators enable it can work under low light environment, its IR range reaches up to 30 meters.
Included 1 set of 4 channel network video recorder which has capability to record/playback video in 1280x960 resolution at 25/30fps, support multiply recording modes and dual streaming technology for giving you great flexibility. It has VGA and HDMI video output interface, fully work with your HD-TV.
This 4CH NVR kit includes: 1 set 4CH NVR with 4 separate Ethernet PoE ports, it can support 1 SATA HDD (max.6TB); 4 high definition 960P IP security cameras with 3-axis bracket, and 4 bundles 20M Ethernet cables.
Key features for 4CH PoE NVR Kit
High Definition 960P IP technology
Offering you high definition monitoring with latest IP technology. Transmitting the video stream through network which allow you to broadcast video in anywhere. Comes with PoE technology which uses single Ethernet cable for video transmission and power supply, greatly reduce the need for additional cabling and power supply. IP cameras are capable of capturing megapixel resolution images to provide you detailed crisp images.
1.3 Megapixel Weatherproof IP Cameras
The included weatherproof IP bullet camera pack provides remarkable performance in a compact and cost-efficient form factor design. The camera adopts 1.3MP progressive scan CMOS image sensor to provide you stunning and high definition, real time video footage. Comes with built-in IR-CUT filter to support true day/night monitoring. The camera's IP66 rated weatherproof housing makes it ideal for both indoor and outdoor surveillance applications. The included 3-Axis bracket allows user to get ideal installation angle, fully support wall and ceiling mounted installation.
4 channel PoE NVR
The included 4 channel network video recorder has capability to record/playback 4 channel video streaming in 1920x1080 or 1280x720 resolution at real time (25/30fps). It supports multiply recording modes, and giving your 24/7 monitoring. The NVR comes with four separate Ethernet PoE ports, built-in network switch for plug-and-play installation.
Remote access and live view
This kit comes with the free p2p App for the iPhone/iPad or Android. View live video, playback previous recorded video, or record live video directly to the smartphone from anywhere in the world (Internet connection required).

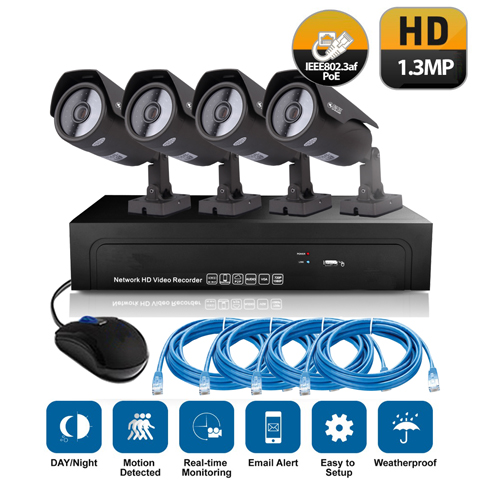

What's in the box?
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
How to setup Internet Protocol (IP) camera system?
Thanks to latest IP technology, setup a complete IP camera system can't be easier, a simple IP camera system only includes one or several IP cameras which are installed around your property. Typically, user can choose two solutions: 1. Using the IP cameras + video management software (VMS); 2. Using the IP cameras + network video recorder.
IP camera + VMS can allow users to setup a complete IP surveillance system with minimum budget, since almost IP cameras come with free video management software. In IP surveillance system, IP camera is responsible for broadcasting video, and using the installed software in your PC, user can record/playback video footage through VMS. Some of VMS can allow user manage hundreds of IP cameras at same time.
IP camera + NVR can allow user to setup a professional IP camera system with moderate budget. Network video recorder can record and playback the video streaming from IP cameras. Different from normal PC, NVR has embedded Linux OS, which is dedicated for video recording and management. The video footage or data will be recorded on its HDD.
Each of solutions have cons and pros. IP camera + VMS is suitable for home residential surveillance applications. Easy to setup and low cost are its advantages. Video footage will be recorded on PC's HDD, which is vulnerable to data leaking and virus attacking. Another concern is video storage capacity, typically a IP camera is able to broadcast megapixel resolution images which require huge amount of video storage size, especially in full-time (24/7) recording mode.
IP camera + NVR solution is recommended solution for both homes or businesses, offices etc applications. With help of NVR, the video footage will be recorded safely into its inside HDD. The NVR can connect one or several HDDs for video storage. Since it's designed for video recording, it has low risk to experience data leaking, virus attacking, even system failure. Moreover, some NVRs have built-in PoE and network switch functions, which means user just need to plug the cameras to NVR, without additional power supply and network switch, the system will start to work, which in turn, greatly reduced the installation cost.
Technical parameters for 4CH PoE NVR Kit
| Model No. | NVR-960POE | NVR-1080POE | |
| Camera | 1.3MP IP camera with PoE | 2.0MP IP camera with PoE | |
| NVR System | 4CH 960P PoE NVR | 4CH 5MP PoE NVR | |
| Camera | Effective Pixels | 1.3 Megapixels | 2.0 Megapixels |
| Main stream:1280*960; 1280*720 | Main stream:1920*1080; 1280*720 | ||
| Sub stream:704*576 | Sub stream:704*576 | ||
| Frames Rates | PAL:25fps(1280*960)/(1280*720) | PAL:25fps(1920*1080) | |
| NTSC:30fps(1280*960)/(1280*720) | NTSC:30fps(1920*1080) | ||
| Image Sensor | 1/3" HD CMOS Sensor | 1/3" FHD CMOS Sensor | |
| 1.3 megapixel resolution (1280H*960V) | 2.0 megapixel resolution (1920H*1080V) | ||
| DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
| (Hi3518C) | (Hi3516C) | ||
| Min. Illumination | Color 0.01Lux@F1.2 | Color 0.01Lux@F1.2 | |
| B/W 0.01 Lux@F1.2 | B/W 0.01 Lux@F1.2 | ||
| Compression | H.264 Main profile | H.264 Main profile | |
| NVR | Recording | 4x1080P (1920x1080P) | 4x 5MP (2592×1944) |
| Recording Mode | Manual> Alarm> Motion detection> Schedule | ||
| Video save | HDD. Network | ||
| Space | CIF: 5GB / day / channel D1: 20GB / day / channel 720P: 40GB / day /channel 1080P: 80GB/ day/channel | ||
| Audio | 1CH RCA Input/1CH RCA Output | ||
| Video inquiry | Point-in-time retrieval, calendar search, event search, channel search | ||
| Backup mode | Network backup, USB mobile HDD, USB Burner, USB DVD-RAW burning | ||
| Video output | 1CH VGA, 1CH HDMI (1920*1080P) | ||
| Network interface | RJ45 10M/100M Self-Adaptive | ||
| HDD | 1piece 3.5" SATA HDD (Max. 6TB) | ||
| PTZ control | N/A | RS485 | |
| USB interface | 3* USB interfaces | 3* USB interfaces | |
| Power supply | DC48V PoE standard power supply | ||
| Size | 460(L)x320(W)x230(H)mm: Weight approximate 7.5kg | ||
Jorge Guerreiro
Can you send me more details (NVR working and ip cam) about NVR-960P NVR KIT 4 Channel HD PoE .
Can you give me the price?
Best regards
Jorge Guerreiro
reply
Karl Arkins
Hi.
Can you give me price of these kits.
reply
Unifore
Hello Jorge,
Thanks for your E-mail. I have already forwarded your inquiry to our sales team.
You will receive the price list from our sales representatives soon.
reply
Bhopinder Phagura
I have ordered this kit on last week, and today I receive it from DHL. Different from other cheap NVR kit, I was impressed by how well it was packaged. Opened the package box, all the stuffs were placed in three layers. One mini NVR with its power supply, four PoE IP cameras in in second layer and Ethernet cables and CDs are under the last layer. All the IP cameras and NVR are placed into air bubble plastic packing bag which can give protection from any damage during transportation.
Next, I plugged all these four cameras to the Mini NVR (please note all the PoE IP cameras only with Ethernet port, no DC power connector), and switched on the NVR, and login NVR, I could see all four cameras were working with sharp images. Overall, the system is decent, and the system was exactly as advertised.
reply
jcmcr
Hello,
I am looking for security surveillance system to monitor my home. I got a question, which is, What's the difference between analog cctv camera DVR kit and your NVR kit?
reply
Unifore
I recommend the IP camera system.
What are the advantages of IP camera system compared to traditional surveillance systems?
The IP camera system has many advantages including:
1. Remotely Access: Each cameras can work standalone, have built-in web server for remotely access from anywhere.
2. Reduced Cost: The installation of IP camera is much more flexible as it's based on the existing or new local network infrastructure, through either wired or wireless connection. Network video recorder isn't necessary for IP camera systems, there are many advanced Video Management Software (VMS) for user selection. The video footage can be stored in hard drive of a PC in the local network or on a remote PC.
3. Great expansion flexibility: CCTV system can't be extended easily; IP camera system can allow expanding without investing in new equipment.
reply
HARRY TREEN
please can send me price last on your product
regard harry
reply
Unifore
Hi there,
We are pleased to know you are interested in our NVR kit.
Our sales representative will contact you through E-mail.
reply
Owolabi Gbenga
Price list please
reply
Unifore
Hi there,
Thanks for your inquiry, our sales representative will contact you through E-mail for the specific quotation. The price for this item is US$214 per kit, and for regular order, we will give some discounts.
reply
Jimmy
Bought this kit to test, overall performance is good. It's very easy to install, plug-and-play, the image quality is also really high definition. Happy with this model, the only issue with this kit (NVR-720P kit) is, if for some reason the power supply to the camera failed, there is no way of supplying a separate 12V adaptor for the camera, like most IP camera does, since it has only one cable with RJ45
reply
Unifore
Thanks for your feedback. Concerning to the power supply, it's common "Possible" drawback for all video surveillance system. For 24/7 operation, we suggest you to buy a UPS power supply which can provide you un-interrupted solution.
reply
Zlatko Hristov
Hello!
I am interested in the price of one item and how , where can I buy.
reply
Jishad
I would like to know the price .
reply
Edward
I work as system integrator for Smart Homes Systems and I am interested in your products, kindly send me your price list to my above mentioned email.
Thanks
reply
Bek
Check prices for camcorder
reply
Asyraf
can u send me the price list please. thanks.
reply
Qcam
I would like to know the price list, please send me, thank you.
reply
Qcam
I would like to know the price list, please send me, thank you.
reply
hjamir
Appreciate if you could provide me the price tor the Mini NVR Kit.
Thank You.
reply
xhafa
hi what is the payment method, price, and shipping fee for this kit, country Albania
reply
tempest
Can you send me the prices of the different packages please
reply
dmal
hi, i was looking for prices regarding your home video package. also, is it only compatible with your alarm system, or will it work with an alarm system already in place? thank you.
reply
Nazirah
Hai, can i know is it possible to modify it by connecting to relay output?
and can i know the micro controller used?
reply
Leo manon
How much for 1 unit NVR mini home kit home ?
reply
asif
Can u please send me the price list.
reply
George
I need the price list, and where can I buy in Canada?
reply
MonP
Can you please send me the price list for this item? Do you have a distributor in the Philippines? Thank you
reply
MonP
Can you please send me the price list for this item? Do you have a distributor in the Philippines? Thank you
reply
Kobi
what is the price for this item ?
reply
kobi
how do i buy it
can you send it to israel ?
reply
Unifore
Thank you for your feedback.
We have forwarded this product inquiry to our sales team.
reply
ram ram
Good morning I would like to know if they handle a teams of 4 and 8 cameras at competitive prices to be able to sell in Mexico and to be able to distribute your product if you send to mexico
Or if they already have some equipment wholesaler in mexico monterrey n.L
reply
Rjay
Price list please
thanks
reply
Wing
The setting up was really easy, it works great for my grocery shop, it does what it says it does.
reply
Carl
I wanna buy several kits to resell in here South Africa, however I have several questions about this system.
Does this need PoE switch or PoE injector?
Can the PC still can access the cameras when they connect to the NVR? Why no 8-channel cameras PoE NVR system?
What's the App for the remotely viewing?
reply
Jackie
The included 4-channel NVR has 4 independent Ethernet ports can support both data and power transmission. Hence, the kit doesn't require using the router/switch and injector. Regarding to the remote view for the IP cameras, they are still be accessible via PCs as long as they are in the same local network.
Well, you can buy two 4-channel kits, then you will have a 8-channel kit. Certainly you can customize the kit as you like. The remote view App is AEeye, it's available for both Android and iOS smartphones and tablets.
reply
Technician
Frequently asked question:
1. Do you have a system supports 4-megapixel resolution?
We don't have a 4-megapixel PoE camera kit, however you can customize such kind of kit by selecting the 4-megapixel PoE cameras and the NVR from us. The reason is we reckon that 1.3MP and 2MP camera systems are the best deal for the most users. 1.3MP and 2MP video resolution is quite clear, the system can cater the needs of most video surveillance applications.
2. What are languages does this system support?
This system is a multilingual system can support Simplified Chinese, Traditional Chinese, English, Dutch, French, German, Hebrew, Italian, Kazak, Persian, Polish, Portuguese, Russian, Spanish, Thai, Korean, Czech, Turkish, Hungarian, Romanian, Bulgarian.
3. After connecting to the monitor, the monitor doesn’t show the image.
As default, the NVR will output 1080p60Hz resolution video via VGA/HDMI ports. Therefore, the minimum resolution requirement of your monitor is 1080P. However, users can login the system to lower the resolution, the minimum supported resolution is 800*600.
4. Successfully added cameras, but NVR shows warning sign instead of camera images.
When firstly running the NVR, users need to choose the correct stream resolution in setup wizard. The selected resolution should match or higher than the resolution of connected cameras.
5. I could not access the NVR system locally.
The PoE NVR has NIC 1 and NIC 2 network cards, the default NIC 1 is for data switching between the NVR and network cameras, while the NIC 2 is for data switching between the NVR and your router. Making sure you type the right (NIC 2) IP address of the NVR.
6. What is the maximum length between cameras and the NVR?
The NVR complies IEEE802.3af standard, the maximum length between cameras and the NVR is approximate 90 meter (250ft).
7. What should I choose between WiFi kits and PoE kits?
Overal, we recommend users to choose PoE camera systems. Wireless or Wi-Fi system can connect to the NVR through the Wi-Fi signals, therefore can avoid running Ethernet cables. But the Wi-Fi camera system has a major limitation that all the cameras and the NVR should be installed within the Wi-Fi coverage. Although Wi-Fi cameras can connect to the router/NVR wirelessly, they still need to use individual power adapters.
PoE camera systems can simplify the installation, simply running the Ethernet cables between cameras and the NVR, the system will can work, the PoE range reaches up to 90 meter thus can be attached with a great number of cameras. Lastly, the PoE system can provide a more reliable connection when comparing with the Wi-Fi system.
reply
