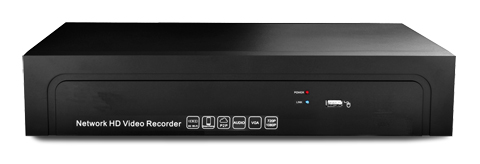

4CH 1080P/3MP/5MP NVR EN6243-POE

4CH 5Megapixel 1080P NVR
4.1/5 rating (14 votes)

EN6243-POE is professional mini size (1U) network video recorder for advanced IP surveillance system. This NVR is supporting 4 IP cameras for video recording at maximum resolution of 1080P/720P(1920*1080; 1280*720pixel). The NVR is based on Linux OS for providing stable performance, and with 4 separate Power over Ethernet (PoE) ports for connection IP cameras.  Power over Ethernet is the advanced technology, which not only can transmit video signal, but also provide power supply for IP cameras. This feature brings benefits of easy installation of IP surveillance system, also saving cost for installation.

Similar to other models, this NVR is supporting dual-stream technology, HD resolution for local recording and playback, sub-stream for remotely surveillance via mobile devices. The NVR is equipped with one VGA video output and one HDMI port for high definition video output. With audio input/output, the NVR can support two way communication. The NVR with one SATA HDD port, supporting one SATA HDD and maximum storage size 4TB.

This NVR is Onvif compliant, working with third party IP cameras from Sony, Samsung, Hikvision, Dahua, Hitachi, LG, Axis, BOSCH, Sanyo...etc.

Key features

  • 4 Channel network video recorder (NVR)
  • 4 Channel separate LAN inputs with PoE
  • Recording resolution at 720P (1280*720 pixel)
  • VGA and HDMI video output
  • Supporting one SATA HDD, max. 4TB
  • Onvif compliant, working with third-party IP cameras
  • Language: Dutch, English, Chinese, French, German, Italian, Polish, Arabic, Portuguese, Russian, Spanish, Thai

Panel back-view

4 Channel NVR with PoE

1080P HD video recording

This 4CH NVR can support up to 4 1080P IP cameras and each channel can record video at 1080P resolution which can deliver high-definition resolution. It enables user to watch live surveillance videos or playback video footage on your security monitor or HDTV in 1080P resolution.

CIF vs D1 vs 960H vs 720P vs 1080P

Plug-and-play solution with PoE

With 4 PoE compatible Ethernet ports to work with PoE compatible IP cameras. The Power over Ethernet technology can allo your IP cameras get power through your NVR directly. This can simplify the whole installation process, and no need extra power cable to reduce the installation cost and free maintenance. IEEE802.3af standard, maximum 15.4W DC12V output.

4CH NVR with PoE

VGA and HDMI Video Output

Enjoy the high definition video surveillance which it brings to your security. This NVR with standard VGA video output, also HDMI output for working with HDMI monitor or HDTV which can maximum offer 1920x1080P resolution.

VGA plus HDMI video output

Two-way voice audio

The 2-Way Audio function enables interactive audio transmission via networks. It allows a manager and a monitoring staffer to interactive and communicate in real time even in long distances. It can also issue a warning for emergency situations using its speakers.

Two way audio communication

4CH PoE NVR Gallery

4CH PoE NVR Front View 4CH PoE NVR Back View PoE NVR Back View PoE NVR Internal View

PoE NVR Camera System
PoE NVR Camera System with LCD
NVR Camera System with LCD + 4 PoE Ports
4CH NVR PoE Package Box

Technical information

  • Model: EN6243-POE
  • IPC Channel: 4 Channel
  • Stream quality: 1080P/720P
  • Video Resolution: 1080P(1920×1080)/720P(1280×720) 1~30fps
  • Recording Mode: Manual, Full Time, Scheduled, Motion Detection, Alarm Event
  • Playback: 4 Channel playback simultaneously
  • Recording storage: One SATA HDD, Max. 4TB
  • Backup method: USB disc, Network
  • Remotely surveillance: IE browser; support LAN management; client management and remote IE accessing
  • Dual stream: individual setting by each channel
  • Mobile phone surveillance: support (iPhone, Android) operation system
  • Wireless: support 3G/4G and WIFI dongle
  • Compatibility : Onvif 2.4, compatible third-party IP cameras, VMS.
  • Mouse zoom: click any area and 15x zoom in or zoom out on the image by mouse
  • Motion detection: Motion detection area selection, sensitivity 6 grade selection
  • Search: by time (calender), backup, by event,
  • IP video input: 4 Channel 1/100M RJ45 with PoE (Power over Ethernet)
  • Video output: HDTV HDMI, VGA (minimum requirement 1080P)
  • Video compression: H.264/JMPEG
  • Audio compression: Standard G.711
  • Audio output: 1CH BNC
  • Audio talk: two-way intercom
  • Alarm input: none
  • Alarm output: none
  • Network: 10M/100M self-adaptive LAN port
  • RS485: none
  • USB: three USB 2.0 ports
  • E-SATA: None
  • SATA HDD Ports: one SATA HDD ports (max. 6TB)
  • Power supply:  48VDC 2A
  • Consumption: ≤20W without HDD
  • Dimensions: 260mm×220mm×43mm
  • Weight: 1.5kg
  • Ingress protection: None/Indoor usage
  • Connectors: RJ-45 10BaseT/100Base Mbps TX DC jack and 1 Audio in / Audio out, 1 VGA, 1 HDMI
  • Operating Temperature: -10°C to 55°C
  • Operating Humidity: 20% ~ 80% (non-condensing)
