4CH PoE 1080P Security Video Camera NVR System

4CH 1080P Security Video Camera NVR System
4.5/5 rating (13 votes)

Surveillance experts recommend home and small business owners to use/install the IP digital surveillance system. The IP surveillance system can work with your existing IP networks, therefore greatly reduce the need for additional cabling or hardware. Compared with analog surveillance system, this IP surveillance kit is capable of capturing and recording 2.0 megapixel resolution video, so with this system you will achieve high clarity image with true color reproduction.

Securing and protecting your home and business with this advanced IP surveillance system. 4 channel network video recorder (NVR) connects with up to 4 IP cameras which support PoE feature to eliminate the separate power supply and cable. Easy connection to offer reliable performance with free maintenance.

The included IP cameras are based on Hi-silicon solution, integrated with progressive scan CMOS image sensor to deliver 1920x1080P resolution at 25/30fps. Built-in IR-CUT filter to provide crisp color images at day, and equipped with 36pcs infrared LED illuminators enable camera to work under low light environment. IP cameras furnished with 3.6mm lens to provide wide field of view. This camera with bullet IP66 rated weatherproof design, included 3-axis bracket to allow wall mounted and ceiling mounted installation. With excellent waterproof function, it's ideal for both indoor/outdoor surveillance.

Key features for Home & Business NVR Kit

  • Complete IP surveillance/monitoring system for home and business
  • 4 channel network video recorder (NVR)
  • NVR supports 4 PoE ports for plug-and-play connection
  • Recording/playback 4 channels 1080p at 25/30fps
  • Multiply recording modes: full time, schedule, motion detection, alarm event
  • Dual stream technology to adapt into your network
  • Support 1 SATA HDD, maximum 6TB storage size
  • Recording and video store for 30 days without erasing
  • VGA & HDMI video outputs
  • 4 weatherproof IP bullet camera with IR
  • Progressive scan CMOS image sensor to deliver 2MP resolution
  • Power over Ethernet (PoE) with standard IEEE802.3af
  • Built-in IR-CUT filter and infrared LED illuminators
  • True day/night surveillance with crisp images
  • Night vision up to 30 meters, smart-IR function
  • 3D noise reduction, D-WDR, BLC, HLC to enhance performance
  • Motion detection and privacy mask
  • IP66 rated weatherproof design for outdoor use
  • Web function, support configuration through PC browsers
  • Remote access through smartphone, laptop, or tablet computer

Home and business IP cameras kit

Buy and use this economical IP surveillance kit with analogue system's price. Enjoy the high definition monitoring which can offer you high detailed images, and plug-and-play installation to support Do-it-yourself installation.

IP vs Analog solution

2MP 1080P Weatherproof outdoor IP bullet camera

Included 4x 1.0 megapixel outdoor IP cameras (white color), which adopt latest progressive scan CMOS image sensor to deliver high clarity images at 1920x1080P @25/30fps. Built-in IR-CUT filter, and infrared LED illuminators for day/night monitoring. Featuring 3D noise reduction, D-WDR, BLC, HLC, motion detection and privacy mask functions to enhance its overall performance.

4 pieces 2MP outdoor IP cameras white color

4 channel PoE network video recorder

The package contains one set 4CH network video recorder (NVR), which is equipped with 4 separator PoE ports to work with 4x IP cameras. It adopts advanced H.264 video compression, support 4 channel 5MP recording and playback at 25/30fps. User-intuitive firmware design, using the include mouse to operate. Supports 1 SATA HDD, and maximum storage size is 6TB, can record maximum 30 days without erasing previous video footage.

4CH PoE 720P/1080P NVR

Remote access and live view

Both IP cameras and the included NVR support remote view, and the package comes with free VMS software, which allow users to manage up to 256 IP cameras for free. The free smartphone applications (Android, iPhone, iPad) can support P2P technology for easy network connection.

Remote view from PC and smartphone

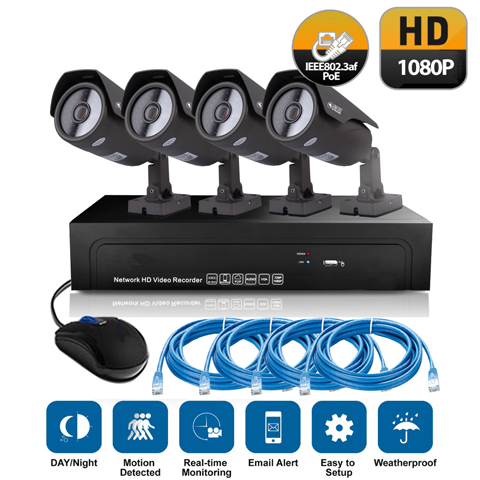

What's in the box?

4CH PoE 1080P Camera NVR
  • 4 pieces 2.0MP Network Cameras
  • 1 set 1080P/3MP/5MP PoE NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 bundles Ethernet (Cat6) cables (4* 20M)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.


Technical parameters for 4CH PoE NVR Kit

Model No.  NVR-960POE NVR-1080POE
Camera  1.3MP IP camera with PoE  2.0MP IP camera with PoE
NVR System 4CH 1080P PoE NVR  4CH 5MP PoE NVR
Camera Effective Pixels 1.3 Megapixels 2.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1920*1080
Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:25fps(1280*960)/(1280*720) PAL:25fps(1920*1080)
NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1920*1080)
Image Sensor 1/3" HD CMOS Sensor 1/3" HD CMOS Sensor
1.3 megapixel resolution (1280H*960V) 2.0 megapixel resolution (1920H*1080V)
DSP Dual core   32-bit DSP Dual core   32-bit DSP
(Hi3518C) (Hi3516C)
Min. Illumination Color   0.01Lux@F1.2 Color   0.01Lux@F1.2
  B/W   0.01 Lux@F1.2   B/W   0.01 Lux@F1.2
Compression H.264 Main profile H.264 Main profile
NVR Recording 4x2MP (1920×1080) 4x5MP (2592×1944)
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40 GB/ day /channel 1080P: 80 GB/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, USB DVD-RAW burning
Video output 1CH VGA, 1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M
HDD 1 SATA HDD (Max. 6TB)
PTZ control N/A RS485
USB interface 3*USB interface
Power supply DC48V PoE standard power supply
Size 460(L)x320(W)x230(H)mm: Weight approximate 7.5kg

2MP 1080P Sample Video

Customer Feedback (2)

  • Joseph Garcia

    Joseph Garcia

    31 December 2016 at 13:38 | #

    I lost my cd that comes with my Mini NVR Kit (4 Channel). Could you please send me a link to where I can download the software? I'm having difficulties connecting my system. Thank you.


  • Unifore


    02 January 2017 at 21:58 | #

    You can download the CD content from our helpdesk:
