4CH 960P PoE NVR security surveillance kit

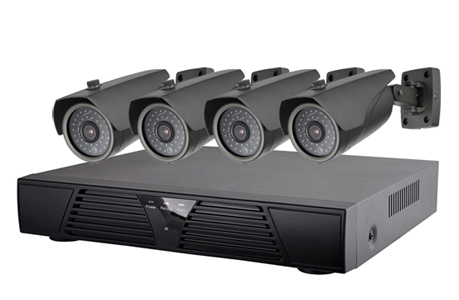

4CH 960P PoE NVR Camera System
3.5/5 rating (16 votes)

NK-4101P is 4 channel network surveillance kit, which can provide high definition viewing and recording at 960P resolution (maximum 1280x960). This standard kit contains one set of 4CH network video recorder, which has 4 separate RJ45 network ports with built-in PoE function, also 4 units of 720P IP Cameras with PoE feature.  Both devices are based on Hisilicon technology, and supporting remotely view from PC and smartphone. Included with free DDNS and P2P, cloud features for easy monitoring.

NVR4001P-P is 4 channel network video recorder which is equipped with 4 separate Power over Ethernt (PoE) RJ45 ports. This NVR with capability of recording and playback 4 channel video at 960P resolution in real time. NVR4001P-P with advanced network features, built-in free DDNS and P2P protocol for easy network configuration. Moreover, it has both VGA and HDMI for local video output, maximum video output resolution reach up to 1080P (1920*1080P). This model has one SATA HDD interface, maximum storage 4TB, and support maximum 30 days recording.

This kit includes with 4 units of 1.0 megapixel IP cameras (model: EW1012K-D) with PoE. This IP camera is based on OV9712 + Hi3518E chipset to provide economical IP solution. It utilizes with 1/4" progressive scan CMOS image sensor, and equipped with 3.6mm lens, offering dual video streaming, maim stream at 1280*720/704*576, and sub-stream 704*576, 352*288 resolution. This camera has Power over Ethernet (PoE) feature for plug-and-play operation. It's equipped with 36 pieces infrared LEDs, which can cover up to 90ft night vision distance, and providing day/night surveillance. With waterproof IP67 rated design, this camera can be deployed in both indoor and outdoor surveillance applications.

Key features

  • 960P plug-and-play IP NVR kit
  • 4CH PoE NVR plus 4 PoE IP cameras
  • Recording and playback at 720P resolution
  • Powerful User-Friendly Interface and mobile APPs
  • Standard H.264 video compression
  • Multiply recording modes including full-time, schedule, motion detection
  • 4 Separate Ethernet ports with PoE
  • PoE standard IEEE802.3af, each of port supports 15.4W
  • 1 SATA HDD interface, maximum 4TB
  • Standard VGA and HDMI video output
  • Live view & playback on smartphones & mobile Devices
  • Up to 30 different system languages
  • Free DDNS, and P2P
  • Free cloud service
  • OV9712+HI3518E, Resolution 1280x720P
  • Wide vision with 3.6mm lens
  • Equipped with 36 units of black infrared LEDs
  • Night vision reach up to 90ft
  • Wide Operating Temperature Range: – 40°F to +140°F ( – 40°C to 60°C)
  • IP67 waterproof for indoor/outdoor usage

IP surveillance kit

This is IP surveillance kit can provide superior high quality images and advanced network functions. With help of Power over Ethernet (PoE) function, it supports plug-and-play installation without using additional power cable.

IP vs Analog solution

User-friendly H.264 NVR

It supports H.264 video compression for HD recording with small video file size. Different from traditional NVR, this model with embedded user-friendly GUI (graphic user interface) for easy operation and setup. It has embedded with 30 different system languages including English, Russian, Italian, French, German, Spanish, Portuguese...and more.


Best overall coverage

EW1012K-D is day/night IP camera, it is equipped with 36 units black infrared LEDs, supporting maximum night vision up to 90 feet. With 3.6mm lens, which can cover approximate 90° vision.

Day/Night Camera

Remote view from web browsers and smartphone

Advanced web function, support web browsers access and live view. Offering smartphone applications for iPhone, iPad and Android to view live video anytime, anywhere. Its user-friendly interface and functions has been designed to help you fee secure wherever life takes you. Including P2P and free cloud monitoring service.

Remote view from PC and smartphone

What's in the box?

  • 4-Channel HD digital NVR
  • (4) 720P IP cameras with PoE
  • (4) Cat5 Cables for cameras
  • NVR power supply (48V)
  • Standard USB mouse
  • Manual and Software CD-ROM

Technical Information

Model No.  NK-4131P NK-4101P
Camera  1.3MP IP camera with PoE  1.0MP IP camera with PoE
NVR System 4CH 720P PoE NVR  4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:25fps(1280*960)/(1280*720) PAL:25fps(1280*720)
NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1280*720)
Image Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" OV9712 CMOS Sensor
1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP Dual core   32-bit DSP
(Hi3518C) (Hi3518C)
Min. Illumination Color   0.01Lux@F1.2 Color   0.6Lux@F1.2
  B/W   0.001 Lux@F1.2   B/W   0.08 Lux@F1.2
Compression  H.264 Main profile H.264 Main profile
NVR Recording 4x960P (1280x960P) 4x960P (1280x960P)
Recording Mode Manual> Alarm> Motion detection> Schedule
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH SPOT,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control 1 RS485 PTZ control interface
Power supply DC48V PoE standard power supply
