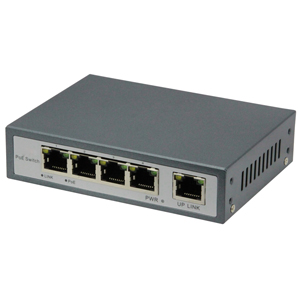

4CH Network PoE Switch for IP Camera 10/100M
POE4100P is Professional network power over Ethernet switch, which is equipped with five 10/100Mbps RJ45 Ethernet ports, works with up to four IP cameras for providing power and data transmission from a single Ethernet cable (cat-5). This swich compliant with industry-standard protocols including IEEE 802.3i 10BASET, IEEE 802.3u 100BASETX, IEEE802.3x Flow control, IEEE802.1af DTE Power via MDI, IEEE 802.3af. The system adopting smart technology can auto-sens connected equipment for distinguish PoE and Non-POE IP network devices, it can output power when connects to IEEE802.3af end devices (like IP cameras). Additionally, with Auto Uplink technology, this POE switch can automatically choose proper PoE protocols and determines speed, duples, and cable type of PoE requirements.
POE4100P is 48V DC powered PoE switch, it can provide totally maximum 56W power supply to the 4 ports, and each of PoE power with 1.25A power output. This PoE switch is the ideal network switch with PoE function for small business network infrastructure, it helps to setup IP network, can simplify installation of wireless access points and IP cameras (with PoE function). It totally support 1.6 gigabit bandwidth, support varies types of UTP category camera, including cat3, cat4, cat5, maximum transmission distance up to 100 meters.
Key features
- Industrial standard power over ethernet (PoE) switch
- Multiply protocols and standards including IEEE 802.3i,IEEE 802.3u, IEEE802.3x, IEEE802.1af,IEEE 802.3af
- 10/100 Mbps speed ports with Auto Uplink
- Each of PoE port supports maximum 15.4W
- Total maximum power for all PoE ports is 53W
- Auto-sensing, output power supply, when connects to IEEE802.3af PoE IP cameras.
- Automatically disconnect power, when IP camera is disconnected
- Each port with LED indicators for monitoring power,link, data and speed
- Adopting external power adapter supply for easy installation
- CE, FCC part 15, VCCI Class B, EN55022, Ctick, EN55024 compliant
- POE4100PF with one 155 mbps optical fiber SC interface
Applications
Technical information
Model NO. | POE4100P | POE4100PF |
Network | ||
RJ45 Ports | 5 10/100Mbps RJ45 Ethernet Ports | |
Ports Function | AUTO Negotiation/AUTO MDI/MDIX | |
Transmission Method | Store-And-Forward | |
Total Bandwidth | 1.6 gigabit | |
Network latency | ≤20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
Buffer memory | 96 KB | |
MAC | 1,000 media access control | |
Addressing | 48-bit MAC | |
MTBF | 190,000 hours (~ 21 years) | |
Acoustic Noise | 0DB | |
Status LEDs | ||
Indicators | Link, Activity, Speed, PoE Active, PoE Fault | |
Protocol and Standards | ||
PoE | IEEE 802.3i 10BASET | |
PoE | IEEE 802.3u 100BASETX | |
PoE | IEEE 802.3x Flow Control | |
PoE | IEEE 802.1af DTE Power via MDI | |
PoE | IEEE 802.3af | |
Auto UpLink | Yes | N/A |
Optic Fiber | N/A | 155Mbps SC Ports Single-mode Optical Fiber |
ENVIRONMENTAL | ||
Operation Temperature | -10°C ~ 50°C | |
Storage Temperature | -20°C ~ 50°C | |
Dust-proof Casing | Yes | |
ELECTRICAL | ||
Total Power | 60W, POE budget: 56W | |
Input Voltage | 48V DC, 1.25A power output | |
MECHANICAL | ||
Color | Black/Grey | |
Installation | Wall-mount kit | |
Dimensions | 28 x 118 x 80mm | |
Net Weight | 0.4Kg/pcs | |
