4CH PoE NVR Kit with 4 720P IP Cameras

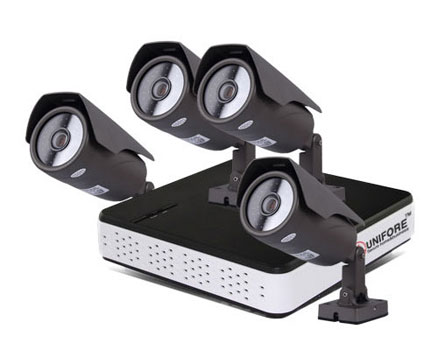

4CH 720P PoE NVR System - Black Color
4.0/5 rating (3 votes)

This is the latest design IP surveillance system kit, it supports 1.0 megapixel resolution video recording and playback. This system supports live view through your PC browsers and management software, as well as your smartphone or tablet.

This model contains 4 pieces IP camera which adopts 1.0 megapixel progressive scan CMOS image sensor to deliver high definition images with maximum resolution of 1280x720 at real time. With PoE features, these cameras support plug-and-play installation. Included one 4 channel network video recorder (NVR), which contains 4 separate Ethernet ports with PoE function, it can not only support data transmission, but also can provide power supply to these cameras.

This kit contains everything you need to setup a complete IP surveillance system. The included PoE cameras are equipped with 36pcs infrared LED illuminators, which can enable camera to work in low lighting environment, and its night vision distance can reach up to 30 meters. Thanks for its built-in IR-CUT filter, these cameras can offer true day/night monitoring. The NVR supports multiply recording modes to allow you monitor and secure your premises with great flexibility, support 1 SATA HDD, which allow maximum 4TB video storage.

Key Features for 4CH PoE NVR Kit

  • Complete IP surveillance kit for home and business
  • Included 4 pieces megapixel resolution IP cameras
  • Recording and playback, live view at 1280x720P at real time
  • IP camera built-in IR-CUT filter for day/night monitoring
  • IP camera adopts dual streaming technology
  • IP camera support IEEE802.3af PoE
  • IP66 rated weatherproof for both indoor/outdoor installation
  • Equipped with 36pcs infrared LED illluminators
  • IP camera with wide view angle lens 3.6mm
  • Included 1 set 4CH network video recorder
  • 4CH 1280x720P resolution recording @25/30fps
  • 4CH PoE ports to work with up to 4 IP cameras
  • Multiply recording modes including full time, schedule, motion detection, alarm event.
  • NVR with two USB interfaces for mouse and video backup
  • Multiply network protocols including TCP/IP, RTSP, uPnP, P2P, DDNS, SMTP
  • Local video output supports VGA and HDMI
  • Plug-and-play operation with P2P technology
  • Advance web server for remotely monitoring
  • Wide Operating Temperature Range: – 40°F to +140°F ( – 40°C to 60°C)

Home and business IP surveillance kit

Buy and use this economical IP surveillance kit with analogue system's price. Enjoy the high definition monitoring which can offer you high detailed images, and plug-and-play installation to support Do-it-yourself installation.

IP vs Analog solution

4 1.0 megapixel outdoor IP cameras

Included 4x 1.0 megapixel outdoor IP cameras, which adopt latest progressive scan CMOS image sensor to deliver high clarity images at 1280x720P @25/30fps. Built-in IR-CUT filter, and infrared LED illuminators for day/night monitoring. Featuring 3D noise reduction, D-WDR, BLC, HLC, motion detection and privacy mask functions to enhance its overall performance.

4 pieces outdoor IP cameras

1 Set 4CH PoE network video recorder

The package contains one set 4CH network video recorder (NVR), which is equipped with 4 separator PoE ports to work with 4x IP cameras. It adopts advanced H.264 video compression, support 4 channel 720P recording and playback at 25/30fps. User-intuitive firmware design, using the include mouse to operate. Supports 1 SATA HDD, and maximum storage size is 4TB, can record maximum 30 days without erasing previous video footage.

4CH PoE 720P NVR

Remote access and live view

Both IP camera and NVR support remote view, and the package comes with free software, which allow user to manager up to 256 IP cameras for free. The free smartphone applications (Android, iPhone, iPad) can support P2P technology for easy network connection.

Remote view from PC and smartphone

What's in the box?

4CH PoE 720P NVR
  • 4 pieces 1.0MP IP Cameras
  • 1 set 720P PoE NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 bundles Ethernet (Cat5) cables (20M)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical information for 4CH PoE NVR Kit

Model No.  NK-4031P NK-4001P
Camera  1.3MP IP camera with PoE  1.0MP IP camera with PoE
NVR System 4CH 720P PoE NVR  4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:25fps(1280*960)/(1280*720) PAL:25fps(1280*720)
NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1280*720)
Image Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" OV9712 CMOS Sensor
1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP Dual core   32-bit DSP
(Hi3518C) (Hi3518C)
Min. Illumination Color   0.01Lux@F1.2 Color   0.6Lux@F1.2
  B/W   0.001 Lux@F1.2   B/W   0.08 Lux@F1.2
Compression  H.264 Main profile H.264 Main profile
NVR Recording 4x960P (1280x960P) 4x960P (1280x960P)
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH SPOT,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control 1 RS485 PTZ control interface
USB interface 2*USB interface
Power supply DC48V PoE standard power supply
Size 390(W)x30(L)x100(H)mm
