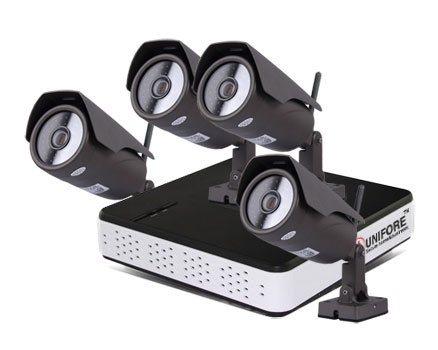

4CH WiFi NVR Kit with 4 WiFi 720P IP Cameras

4CH WiFi NVR Kit
3.8/5 rating (39 votes)

Setup your wireless IP surveillance system with this latest design WiFi NVR kit (Model: NVR-720PWIFI) from Unifore. This professional NVR kit supports high definition recording&playback at maximum resolution of 1280x720 at 25/30fps. This kit contains everything you needed to setup a complete wireless IP surveillance system.

Different from other models, this model includes 4 pieces WiFi IP bullet cameras which adopt IP66 rated weatherproof design. Withstand the extreme weather conditions, this camera can work both indoor/outdoor environment. Thanks its progressive scan CMOS image sensor from Omnivision, this camera can deliver true color reproduction images at maximum 1.0 megapixel resolution. 4 IP cameras are equipped with WiFi module for wireless connection, which greatly simplify your installation process.

One set 4 channel 720P network video recorder can connect up to 4 IP cameras, and support video recording/playback in 720P resolution at 25/30fps. Supporting USB mouse operation and advanced web function to allow remotely live view from both PC browsers and smartphone applications. This NVR supports one SATA HDD and maximum storage size is 4TB. With both VGA and HDMI interfaces for local video outputting.

Key Features for 4CH WiFi NVR Kit

  • Wireless IP surveillance system based on WiFi technology
  • Included 4pcs IP bullet cameras
  • WiFi connection to achieve wireless solution
  • 1.0MP progressive scan CMOS image sensor
  • True day/night surveillance with ICR filter
  • 3.6mm lens, wide field of view
  • 0 Lux min. illumination, with Infrared LED illuminators
  • IR range reaches up to 30 meters
  • IP66 rated weatherproof design for outdoor use
  • Included one set of 4CH network video recorder
  • Recording/playback/live view at 720P resolution
  • Full time, schedule, motion detection, alarm event recording modes

Home and business IP surveillance kit

Buy and use this economical IP surveillance kit with analogue system's price. Enjoy the high definition monitoring which can offer you high detailed images, and plug-and-play installation to support Do-it-yourself installation.

IP vs Analog solution

4x 1.0 megapixel Outdoor IP cameras with WiFi

This kit contains 4x 1.0 megapixel outdoor IP cameras with WiFi function. These cameras can connect to network through using the WiFi connection. By the way, they adopt IP66 rated weatherproof design, and built-in infrared LED illuminators, all these features enable them are ideal cameras for outdoor day/night monitoring.

4 pieces outdoor WiFi  IP cameras

1 set 4CH 720P network video recorder

4 Channel 720p Network Video Recorder support one SATA HDD (maximum 4TB, estimate recording storage time 30days)/ 4 x 720p (1MP) Cameras / P2P(Peer to Peer) easy network connection software / VGA & HDMI Output / Web and Smartphone remote viewing / Transfer to external storage via USB or network

4CH 720P NVR

Remote access and live view

Both IP camera and NVR support remote view, and the package comes with free software, which allow user to manager up to 256 IP cameras for free. The free smartphone applications (Android, iPhone, iPad) can support P2P technology for easy network connection.

Remote view from PC and smartphone

What's in the WiFi NVR Kit box?

4CH WiFi NVR Kit with 4 WiFi 720P IP Cameras
  • 4 pieces 1.0MP IP Cameras with WiFi
  • 1 set 720P/960P NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 AC/DC adapters for IP cameras (EU/American/British/Australia Plugs)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

WiFi NVR Kit
WiFi NVR Kit Connection Diagram

Technical parameters for 4CH WiFi NVR Kit

Model No.  NVR-960P-WIFI NVR-720P-WIFI
Camera  1.3MP IP camera with PoE  1.0MP IP camera with PoE
NVR System 4CH 720P PoE NVR  4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:25fps(1280*960)/(1280*720) PAL:25fps(1280*720)
NTSC:30fps(1280*960)/(1280*720) NTSC:30fps(1280*720)
Image Sensor 1/3" Aptina AR0130 CMOS Sensor 1/4" OV9712 CMOS Sensor
1.3 megapixel resolution (1280H*960V) 1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP Dual core   32-bit DSP
(Hi3518C) (Hi3518C)
Min. Illumination Color   0.01Lux@F1.2 Color   0.6Lux@F1.2
  B/W   0.001 Lux@F1.2   B/W   0.08 Lux@F1.2
Compression  H.264 Main profile H.264 Main profile
NVR Recording 4x960P (1280x960P) 4x960P (1280x960P)
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control 1 RS485 PTZ control interface
USB interface 2*USB interface
Power supply DC48V PoE standard power supply
Size 390(W)x30(L)x100(H)mm
4CH WiFi Network Video Recorder Rear Panel
4CH WiFi Network Video Recorder Side View
4CH WiFi Network Video Recorder with HDD

Customer Feedback (24)

  • ivan garcia

    ivan garcia

    17 September 2014 at 22:54 | #

    I want know how much is for wifi nvr kit


  • mike


    18 September 2014 at 00:10 | #

    These wireless nvr systems are interesting. What are the costs of the two wifi systems and can I buy just one for now?


  • Walter Cyprus

    Walter Cyprus

    25 September 2014 at 20:43 | #

    Hi there,

    Saw your advertisement on Google, I am from Cyprus, and very interested in your IP camera kit. Please give your latest price list, I want to resell these products to my country. Currently, I want to buy one set for my shop, and after tested, I will place a regular order to your guys.


  • Mohammed


    25 September 2014 at 23:02 | #

    I received G60-Ultimate alarm kit and this HD 4 channel camera system. Firstly, I tested the alarm system, different from other chinese manual, the included manual is very descriptive with menu illustrations, the alarm panel has big LCD display, and touch keypad is sensitive, because I don't plan to use the telephone line connection, thus I only inserted a SIM to the system from AT&T, after I programmed my private cellphone number to the system, it sent me message. Generally, I like this system, but one thing I dislike is every time I send SMS to arm/disarm the system, the system will reply me back with another SMS. I want to disable it, then submit a ticket to their online support team, they told me it's unable to change it, so sad. Let's go to the NVR kit, the system is packed nicely, and used bubble plastic bags for protection, so I didn't find anything defective. The package box has one small compact design NVR, its size enough to install a hard driver inside. Since all the system adopted Power over Ethernet (PoE) technology, the connection is very easy, just need to plug each of cameras to NVR, then connected the NVR to a big power adapter, switched on NVR, and NVR also connected to my new HDTV with a HDMI cable (not included). Well, this is 960P system, so it has good picture quality in local view. Basically, I didn't read the CD content during the whole testing process. The package box has QR code, so I just simply scan the QR code to download the smartphone applications. At the first beginning, I encountered problem on smartphone viewing, because I couldn't find the manual of smartphone usage, I had solved by myself.


  • Manuel Sanchez

    Manuel Sanchez

    19 October 2014 at 19:11 | #

    Please send me prices


  • Martin


    23 October 2014 at 15:56 | #

    What is the cost for wifi systems and can I buy just one for now?


  • Unifore


    23 October 2014 at 16:05 | #

    Hi there,

    The price for WiFi system is very affordable, I have already forwarded your inquiry to our sales team. Our sales representative will contact you.


  • Donny


    14 November 2014 at 13:10 | #

    how much wifi nvr? 4ch n 8 ch


  • Unifore


    17 November 2014 at 12:48 | #

    Hi Donny,

    Thanks for your inquiry. We are so sorry to inform you that we don't have 8CH PoE Kit for selling, but you can order 8CH PoE NVR plus 8 PoE IP cameras. The only drawback on this is customized NVR kit is much expensive than our 4CH NVR kit.


  • prakash


    26 November 2014 at 17:11 | #

    send me total price list and how to booking the order.


  • Miiguel Machado

    Miiguel Machado

    15 January 2015 at 23:17 | #


    Do you sell to Europe? Can you please send me the prices to Wifi NVR kit and to X8 cubealarm and their accessories.



  • Trev


    11 February 2015 at 09:02 | #

    Can u help me install my nvr the directions well there is none


  • s


    24 May 2015 at 19:37 | #

    thanks for the review


  • Bombaci Vincenzo

    Bombaci Vincenzo

    17 November 2016 at 12:50 | #

    How Mach 4 Ch wifi ?


  • Shaikh Khalid

    Shaikh Khalid

    09 January 2017 at 15:47 | #


    Good morning, send me the price list for the complete product of yours.

    Shaikh khalid


  • macla


    07 April 2017 at 04:02 | #

    PLease ,send me the price list for the complete product of yours and how to order.


  • J Kotze

    J Kotze

    06 May 2017 at 21:18 | #

    How long does the batteries in the WIFi camera lasts?
    What type of batteries does it use?


  • Unifore


    08 May 2017 at 09:22 | #

    Dear customer,
    This is a wireless camera system which includes 4 Wi-Fi cameras are powered by the AC/DC adapters (included). They don't use the batteries as the power source.


  • Foster


    20 July 2017 at 10:20 | #

    I need your help ASAP.
    I sell one system NVR-8960P (WIFI) and the client need to know how to listen the audio?
    Please send me instructions how to activate the audio?


  • Unifore


    20 July 2017 at 10:42 | #

    This system doesn't support audio monitoring/recording function, because the included cameras are outdoor type without mic built-in.


  • Jon


    11 August 2017 at 22:16 | #

    I connected the camera via cable but camera doesn't get IP. Can't see it on my router.


  • Ibrahim


    22 August 2017 at 00:48 | #

    I want software please send it to me


  • Peter


    22 August 2017 at 11:29 | #

    Do you mean the VMS software?
    Well, you can download it from this webpage: https://www.unifore.net/analog-surveillance/xmeye-for-windows-mac-pc-software-vms.html


  • Ibrahim


    24 August 2017 at 05:21 | #

    Plz help me ASAP give me sofaware for vb Wi-Fi nvr
