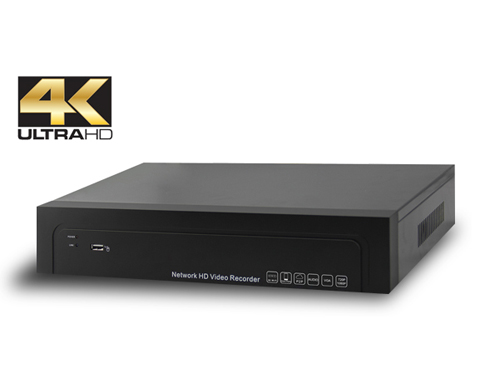

4K H.265 NVR for 8CH IP Camera System
EN6383 is a 8-channel Linux embedded standalone network video recorder adopt the industrial leading Quad-core processor to provide exceptional video recording performance, not only support up to 4K (8MP) resolution video, but also feature smart video analytics 2.0. This NVR can accept video stream from 8 channel IP cameras, the total incoming bandwidth can reach up to 80Mbps. In addition to 4K resolution, this recorder now supports H.265/HEVC and H.264/AVC video compression standard, by implementing the H.265/HEVC video standard, the system can reduce the usage of bandwidth and video storage to half.
The robust security NVR has preinstalled by video management software 2.0, which can achieve preview, record, playback, motion detection, smart video analytics, remote accessing, user management and so on functions. Setup the recorder is straightforward, it includes a setup wizard to guide you on the network configuration and local IP camera discovery. In addition to using free DDNS service, users may use the P2P connection for remote video monitoring over smartphone or desktop PC/laptop.
By using the P2P, no need to do any network configuration, using your smartphone to scan the QR code, you can instantly access the NVR to watch the HD video, that’s truly plug&play.
Key Features of 4K H.265 NVR
- Embedded with video management software 2.0
- Unique smart video analytics 2.0 engine
- Industrial-leading powerful Quad-core 1.5GHz Cortex A53 CPU
- 3D ARM Mail-450 dual-core GPU
- 8-channel video streams, up to 12-megapixel resolution
- Selectable stream type 8MP/5MP/3MP/2MP/1MP
- 2x SATA interfaces, max. 12TB storage capacity
- Support 4K video output via HDMI port
- MJPEG, H.264, H.265 video codec
- DDNS, RTSP, RTMP, SMTP multiple protocols
- USB 3.0 port for high speed video file transmission
- 4 Alarm input, 1 alarm output for integrated solution
- Compatible with ONVIF 2.4 Profile S
- Free P2P platform, free smartphone App
- Free CMS software
4K UHD Video Resolution
4K is the equivalent to four times resolution of Full HD (2MP), that's 8 megapixel resolution. By deploying 4K UHD cameras and NVRs in your IP video surveillance system you can significantly reduce the number of cameras, which in turn, greatly save the cost. Additionally, the 4K UHD video can allow you to enjoy the impressive video which is the highest standard in video surveillance. Lastly, the NVR also can allow users to use lower resolution cameras including 5 megapixel, 3 megapixel, 2 megapixel, 1 megapixel. Lowering the resolution, the NVR is able to handle video processing to more cameras.
Smart Video Analytics Engine 2.0
By utilizing the smart NVR that comes with advanced video analytics, the camera system can reduce the working load of security operator. Instantly get notified then check the video after the customized detection rule has been triggered. Smart video analytics 2.0 engine can offer line crossing detection (perimeter), region detection, object counting and detection.

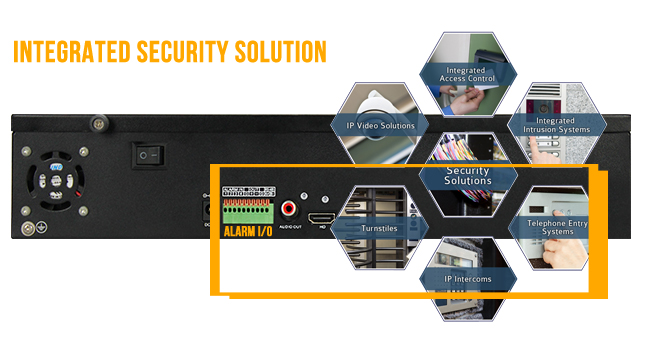

Rich peripheral for integrated solution
Including rich peripheral design, therefore can be easily integrated with other security systems. The system has 4 alarm inputs and 1 alarm output, it can connect with a complex system or some hardwired detectors and accessories. Intending to achieve high-speed data backup, the NVR is equipped a USB 3.0 port, which can handle up to 5gbps (640MBps)—over ten times as fast as the 2.0 maximum. It owns a HDMI output to support maximum 4K resolution, and it should be noted that the minimum resolution requirement for the connected monitor/display is FHD/1080P
Get our latest catalog
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical specification
- Model No.: EN6383
- Video/Audio input: 8-Channels
- Video compression: MJPEG, H.264, H264+, H265
- Incoming Bandwidth: 100Mbps
- Audio compression: G.711A
- Audio output: 1CH, BNC (Linear, 600Ω)
- HDMI output: 1-ch, resolution: 4K(3840*2160)/60Hz,4 K(3840*2160)/30Hz,1920*1080P/60Hz,1600*1200/60Hz, 1280*1024/60Hz, 1280*720/60Hz, 1024*768/60Hz
- VGA: N/A
- Video spot output: N/A
- Playback/record resolution: 12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p
- Frame rate: 30 fps
- Video bit rate: 32 Kbps ~ 8192 Kbps, or user defined (Max. 8192 Kbps)
- Dual-stream: support
- Motion detection & privacy mask: support
- Recording mode: manual, full time, scheduled, motion detection, alarm event
- Smart video analytics: perimeter detection, region detection, object detection & counting
- Digital Zoom: click any area and zoom in or zoom out on the image by mouse
- Synchronous playback: 1/4/8 channel playback simultaneously
- Hard Disk: 2 SATA interfaces for 2 HDDs, maximum 12TB
- eSATA: N/A
- Network interface: 1 RJ45 10M/100M Ethernet interface
- Serial interface: 1 RS-232 interface (for parameters configuration, maintenance, transparent channel); 1 RS-485 interface (for PTZ control);
- USB interface: 2 x USB2.0; 1 x USB 3.0
- Web Browser: IE 8, IE 9, IE10, IE11, Chrome 8 +, Firefox 3.5 +, Safari 5 +
- Alarm in/out: 4/1
- Power supply: 100 ~ 240 VAC, 6.3A, 50 ~ 60Hz
- Consumption: ≤20 W (not included HDD)
- Working temperature: 14ᵒF - 131ᵒF
- Working humidity: 10% ~ 90%
- Chassis: Rack-mounted 1.5U chassis
