4K IP H.265 Vandalproof Dome Camera Hi3519V101 Sony IMX271

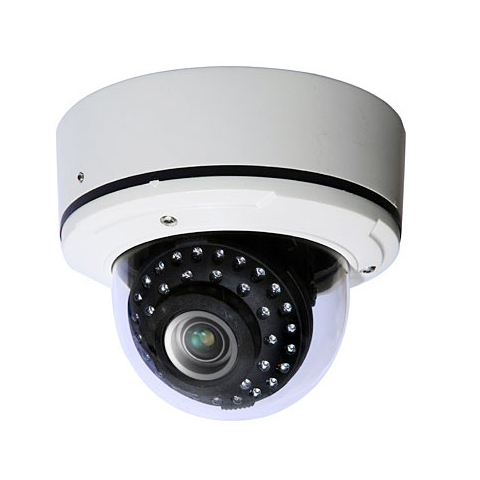

4K H.265 Vandalproof Dome Camera
0.0/5 rating (0 votes)

Unifore 4K vandal-proof dome camera with IR set to become one of the major milestones when it comes to the evolution of IP video surveillance. The 4K IP cameras can work seamlessly with our newly developed powerful 4K NVR products to enable users quickly deploy an IP based 4K resolution video surveillance system for commercial projects. The product adopts sleek and aesthetic design, dome cover can provide up to IK10 vandal-proof protection to against possible vandalism. It employs industry-leading image processor and CMOS image sensor to achieve 4K resolution video streaming with decent image quality. The product mainly adopts Hisilicon Hi3519V101 high-performance SoC, which featuring next-generation image processing technology and having 4K/30fps encoding capability. By integrating with Sony IMX274 progressive scan CMOS image sensor, the camera can not only output 8-megapixel resolution video, but also support wide dynamic range and excellent low illumination performance empowered by Sony Starvis technology.

We also provide entry-level 4K IP cameras which utilizes cost-effective hardware design make products is affordable to consumer users. The entry-level 4K IP cameras utilizes Hisilicon Hi3516AV200, Omnivision OS08A10 CMOS image sensor. The camera still can output 8-megapixel resolution video with maximum frame rate of 15fps. As 1080p and 720p become dominant standard in the consumer and CCTV markets. 4K will replace it and inevitably become the next standard within three years. Instead of buying 4-megapixel or 5-megapixel IP cameras, we recommend 4K IP cameras since it’s future-proof. Clients can benefit from using 4K IP cameras, since it can provide higher resolution and more detail, a set of 4K IP camera can replace multiple cameras to have an entire large are covered.

Bandwidth and storage space requirement used to be bottleneck for spreading of 4K IP cameras. Our 4K IP cameras leverages H.265/HEVC video compression technology can lower 70% bandwidth and storage consumption by preserving picture quality. The H.265 video compression algorithm is empowered by Hisilicon, which is one of major contributors of H.265 standard in the world. By running H.265 video compression, the camera can deliver smooth 4K video stream as low as 2Mbps, which is equal to bandwidth consumption of 1080p H.264 video. The H.265 technology can greatly reduce your spending on network infrastructure and required storage.

8-megapixel/UHD Resolution 3840x2160

Similar to TV industry, IP video surveillance market follow the pattern and is shifting from 1080p to 4K resolution. 4K resolution will become standard in the near future, it can provide 4 times higher resolution of 1080p means more details can replace multi-cameras to reduce overall investment of IP surveillance system, it’s the consensus supported by both manufacturers and CCTV camera installers and integrators. Depending on which model you choose, our 4K IP cameras can achieve 4K resolution real-time 30fps video encoding since it adopts the most powerful and robust processor in market.

4K UHD Resolution IP Video Surveillance

4K noise-free image with HDR

4K is not achieved merely by increasing effective pixels of image sensor. Many new and advanced image processing technologies are used to provide nearly noise-free image such as 2D+3D noise reduction, it also support high dynamic range function or wide dynamic range we know it can greatly improve image performance when camera has to handle challenging lighting conditions. Higher resolution means requiring more lights to acquire image raw data, the IMX274 is a 8.51-megapixel image sensor which utilizes Sony patent Starvis technology, it’s based on new optical design to enhance light sensitivities. Empowered by Sony Starvis image sensor, the camera can see clearly and output color video under dim lighting condition, by contrast conventional security cameras rely on IR lighting. In case camera requires to work in total dark condition, the camera has built-in IR LEDs to see a long distance and output image in black and white format.

H.265 H.264 bandwidth comparison
Lower 70% Bandwidth & Storage

4K 3.6-12mm vari-focal lens

Intending to achieve 4K resolution, the camera has to use high-end camera lens which supports 4K resolution. 4K camera lens is still expensive since there are multiple technologies required to achieve 4K resolution. The camera is equipped with newly developed focal length 3.6-11mm manual vari-focal lens. The lens has industry-leading performance to capture 4K video, it also enables users to adjust field of view for variety installation. For high-end users, motorized 4K zoom lens is optional. Motorized zoom lens provides extra benefits such as optical zoom capability, maintain clear view even camera is moved or scene is changed, eliminate necessity of adjusting focus in order to obtain clear view.

3.6-11mm Vari-focal Lens
3.6-11mm Vari-focal Lens

Get our latest catalog

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

4K Vandalproof Dome Camera Features

  • 4K vandalproof dome camera features
  • 9-megapixel/4K/UHD resolution video
  • Smooth 4K video high clarity vivid color image
  • Industry-leading Hisilicon Hi3519V101/Hi3516AV200 SoC
  • 1/2” Ominivision OS08A10 or 1/2.5” Sony IMX274 CMOS image sensor
  • HDR/WDR to achieve superior image quality
  • Equipped with 4K 3.6-11mm vari-focal lens
  • Vandal-proof dome cover against vandalism
  • Fully-sealed design for outdoor installation
  • 35pcs Infrared LEDs to provide 10-20 meter IR illumination range
  • ONVIF compliant to work with NVR/VMS
  • H.265/HEVC main profile video encoding
  • H.264/AVC BP/MP/HP video encoding
  • Audio input and audio output
  • Audio monitoring and 2-way audio intercom
  • Image parameter, image orientation adjustment
  • Flip, mirror, corridor mode
  • High light compensation, back light compensation
  • Len distortion correction
  • Digital image stabilization
  • Wide dynamic range (WDR)
  • Smart-IR to avoid over-exposure problem
  • Region of Internet (ROI) smart encoding
  • Motion detection and privacy mask
  • Manual, schedule, motion detection recording mode
  • Embed web server supports remote access via web browser
  • Free P2P protocol for remote viewing through Android and iOS app
  • I8/i9 protocol to work with Unifore 4K NVR
  • Hikvision protocol to work with Hikvision NVR
  • Hikvision protocol to support iVMS 4200 platform
  • IP66 IP protection grade for outdoor installation
  • DC12V/802.3af PoE (optional)


Model No. MI801DV19 MI802DV19 MI803DV19
Camera Type Vandalproof Dome Security Camera
System Embedded RTOS design
Camera Effective Pixels 8 Mega Pixels
Main stream:3840*2160
Sub stream:704*576 Sub stream:704*576 Sub stream:704*576
Frames Rates PAL:15fps(3840*2160)/4K PAL:15fps(3840*2160)/4K PAL:25fps(3840*2160)
NTSC:15fps(3840*2160)/4K NTSC:15fps(3840*2160)/4K NTSC:30fps(3840*2160)
Image Sensor 1/2" OmniVision OS08A10 8MP CMOS 1/2.5" Sony IMX274 8MP CMOS 1/2.5" Sony IMX274 8MP CMOS
3840(H) X 2160(V) Approx. 8.51M Pixels
DSP Dual core 32-bit DSP Dual core 32-bit DSP Dual core 32-bit DSP
(Hi3516AV200) (Hi3516AV200) (Hi3519V101)
Min. Illumination Color 0.1 Lux@F1.2 Color 0.01Lux@F1.2 Color 0.01 Lux@F1.2
B/W 0.01 Lux@F1.2 B/W 0.001 Lux@F1.2 B/W 0.001 Lux@F1.2
Adjust Parameters DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc.
Video Compression H.265 Main Profile; H.264 BP/MP/HP
Stream support dual stream,AVI format
Bit Rate support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable support 0.1M ~8Mpbs bit rate adjustable
Frame Rates support 1~30fps adjust support 1~30fps adjust support 1~30fps adjust
Audio Input and output 1CH input( microphone),1CH output( Speaker&microphone)
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple devices management system)
Cloud P2P Danale P2P platform
Network 1 * RJ45, 10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.4)
POE Support(optional)
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount 4K 3.6-11mm varifocal lens
Infrared Luminary 35pcs F5 Infrared LEDs
Infrared Wavelength 850 nm
Illuminate Distance More than 20 M
Waterproof Criterion IP67
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(802.3af/820.3at)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20° )
Dimensions 200*100*85mm
Weight 2kg

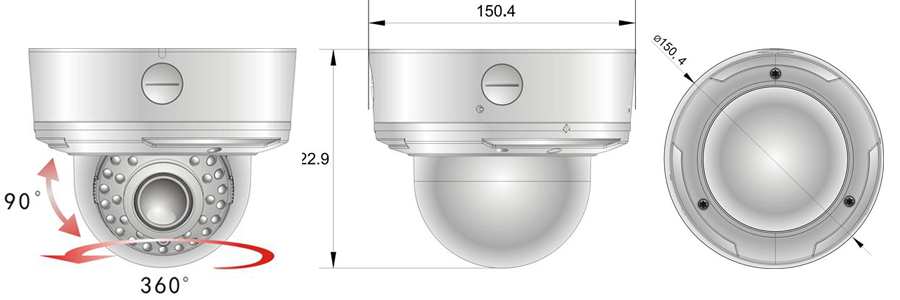

Production Dimension

Vandalproof dome camera dimension size
