720P HD Outdoor IP PTZ Dome Camera

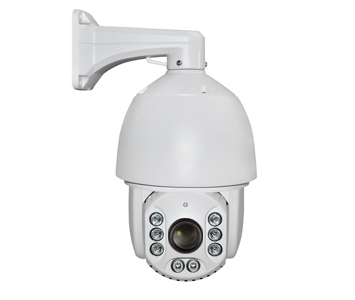

Outdoor IR PTZ Network Camera 720P
3.7/5 rating (6 votes)

Looking for professional IP pan/tilt/zoom camera? This is most reliable IP PTZ dome camera which is right choice for professional IP surveillance applications. It adopts the latest progressive scan CCD image sensor with TMS320DM368 image processor, adding embedded Linux OS, it can capture 1280x720P (720P) 1.3 megapixel images with ultra low noise and true color reproduction performance.

This camera is equipped with 20x optical zoom camera module which enable user to monitor/secure large areas with single IP camera. Through cooperation with digital zoom, user can enlarge the images with hundred times without creating fuzzy images. Adopting the industrial standard H.264 video compression technology and G.711 audio compression technology, this PTZ camera can deliver smooth HD video streaming at real time (25/30fps) with optimized file size for network bandwidth efficiency, as well as reduce the storage size.

It's best choice for experts who want to not only choose the cost-effective solution, also without compromising the stability and performance of the whole system. With advanced and precise step motor mechanical design, this speed dome camera can perform horizontal 360º endless rotation with high speed, and vertical 90º rotation with auto flip. Additionally, it has 128 presets and 16 preset positions can be included in the tour, dwelling time at each preset position can be set. Setup a new intelligent video surveillance system with this IP camera which supports motion detection and four privacy mask zones to protect important things you won't be monitored.

Utilizing this new IP camera for true day/night surveillance with its built-in removable IR-cut filter. It adopts enhanced low illumination technology which allow camera to capture the low noise black and white (B/W) images at dim light environment. Additionally, it conforms Onvif standard and support multiply internal network protocols which make it can work/compatible with the third-party's IP devices.

1.3 megapixel 720P HD resolution

Enjoy the HD resolution surveillance with its powerful and sophisticated 1.3 megapixel HD camera module. Adopting the latest progressive scan CCD sensor with IR-cut filter, it can capture 1280x720P HD video footage. Combination with H.264 video compression technology, this dome camera can output smooth HD video at 25/30fps. You will not miss any important details from its high quality images.

D1 vs 1.3 megapixel resolution

20x optical zoom with digital zoom

Securing and monitoring large area with its powerful 20x optical zoom lens, and allowing user to perform zoom in and out with automatically focus to see the details of objects. It even has intelligent facial recognizing function which allow you to track the people in monitored area.

20x optical zoom

IP66 rated weatherproof design

The vandal-resistant dome camera with professional-grade IP66 weatherproof rated design, it adopts fully sealed Aluminum-alloy sealed structure to withstand rain, dust or physical attack for both indoor and outdoor applications.

IP66 weatherproof installation

Onvif compliant

This product meet the Onvif (Open Network Video Interface Forum) standard which can be compatible with third-party's IP devices. The Onvif is a common protocol for the exchange of information between different IP devices from different manufacturers. With the Onvif standard, the IP camera can work with any NVRs, VMS (video management software).

Onvif IP camera

Application Fields

Working Areas: banking, education, hospitals, prisons, stadiums, railway, port, Plaza, River, forest, scenic, parks, streets and other places.

Traffic, parking lot, sear port, industry district, bank, hospital

Technical Information

Model ED1345
Name 720P HD IP PTZ Dome Camera-Pro version
Camera Image Sensor 1/3” Progressive CCD
Processor TI, Davinci
Effective Resolution 1.3 megapixel
Minimum Illumination Color 1.8Lux, B&W 0.01Lux
Iris Automatic/manual
Optical zoom 20x optical zoom
Back Light Compensation Manual / Automatic
Electric Shutter 1/25~1/10,000s
Day/Night Mode Removable IR-cut filter
Focus Mode Manual/Automatic
Lens Focal length f=4.7mm(Wide)~84.6mm(Tel)
Zoom speed Estimate 2 seconds
Horizontal field of view 55.2-2.9
Focal number F1.6-F3.5
Function Pan rotation 360°continues rotation horizontally
Pan speed Keyboard speed:0.4°/s~300°/s,preset rotation speed:300°/s
Tilt rotation -5°~90°
Tilt speed keyboard speed:0.4°~150°/s,preset rotation speed:250°/s
Digital zoom Support
Total number of presets 128
Cruise 4 modes, each cruise can add 27 presets
Pattern 4 modes
Loss power memory Support
Scan function Preset /Cruise scan / Pattern scan / Automatically scan
Horizontal scan 4
Port Alarm Input 1CH (Optional)
Alarm Output 1CH (Optional)
USB Port Audio/USB (Optional)
Network Port 1 RJ45 10/100Base-T port
Power Port

1

Video output

1 Local output BNC Interface

Network Network protocols TCP/IP、HTTP、DHCP、DDNS、PPPOE、FTP、SMTP、NTP、RTP/RTSP
Security Mode With account and password protection
User authorization PTZ control、Audio Intercom、Video recording、alarm control、config、playback、check log、Internet view
Users Maximum 10 users online live view simultaneously
OSD overlay 5 different OSD overlay, such as: Date, time, Bit rate, Title
Privacy mask 4 regions
Dual streaming Support
Image resolution Main Stream:1920x1080; 1280×720
Sub-stream:760×480
Audio Two way audio intercom
Video loss alert Sending E-mail, alarm signal output
Motion detection 8 motion zones, sensitivity:0-9 grade
Motion alert Alarm output、PC event、recording、capture、FTP upload、Send Email
Alarm Input NC/NO
Alarm Input alert Alarm output、PC event、recording、capture、FTP upload、Send Email
PTZ protocol PELCO-D、PELCO-P
Common functions Support PC time sync, remote upgrade, remote reboot, remote reset and local log query
General Power Voltage AC 12V
Power Consumption 35W max
Working Temperature Outdoor:-40℃~65℃, Indoor:-10℃~50℃
Working Humidity >90%
Dimension Φ226×282mm
Weight
Ingress rate IP66(Outdoor),6000V anti-surge, anti-lightning protection
Installation method Wall mounted or ceiling mounted
System requirements OS:Microsoft Windows XP、Windows 7 Ultimate Edition / Professional
Browsers:Internet Explorer、Firefox、Chrome、Opera、Safari
