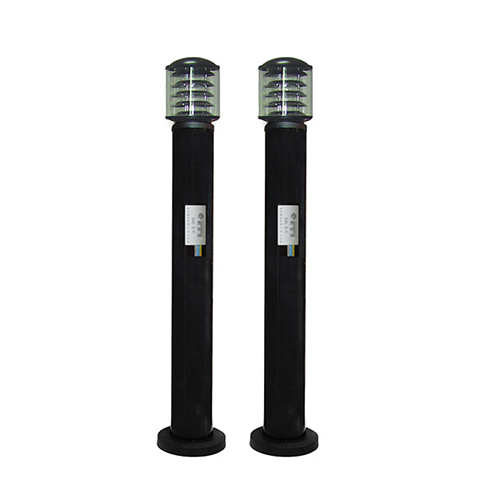

80MM Multiple Beam Infrared Wall Series
? 80MM Multiple Beam Infrared Wall Series
Model: SAL—30X/50X/75X/100X/150X
Beam Infrared Wall Introduction:
SAL wall series is suitable for infrared light wall villas intelligent building, military installations, factories hospitals, river fish ponds, golf course range, storage terminals, prison farms, airports and other large perimeter border guard system.Select wall-mounting type, floor type, and so installed.Against the country's first ultra-long distance.The bottom of the sealed, can be installed in easily flooded low-lying wet areas.Self-calibration with LED status indicators, testing the calibration is more straightforward.Tamper, anti-cut line of functional design, effective in preventing all kinds of damage, suitable for outdoor applications.Aluminum frame, durable.Original three-dimensional installation and adjustment organizations, to ensure that products in the best condition.Special optical system with automatic gain circuit to adapt to a variety of adverse weather.
Infrared Wall Main Features
1. Initiate ultra-far distance in the whole nation
2. Full sealed bottom, installable in the easily flooded wet lowland.
3. CPU microprocessor digital control technology with stable performance
4. Original three-dimension solid installation adjusting structure, guarantee the best working state of the product
5. Special optical structure with automatic gain circuit, adoptable to various terrible weather
6. Direct viewing adjustment with LED adjust status indicator light
7. Aluminum alloy bracket, firm and durable.
8. Dismantle and cut prevention, prevent destroy effectively.
9. Applicable to intelligent building, villa and residential quarter, military establishment, factory and hospital, riverway and pound, court and shooting range, warehouse and wharf, prison and farm, airdrome and frontier.
Installation:
Infrared Wall Specification
Model: | SAL—30X/50X/75X/100X/150X | |
Detection Range (Outdoor) | 30-150 Meters | |
Number of Beams | 2-10 Beams | |
Height | 85- 227CM | |
Working Voltage | DC12-18V | |
Working Current | Receiver | <=58mA |
Transmitter | <=60mA | |
Action Speed | <=0.1sec | |
Relay Specification | 30VAC/DC,0.5A max | |
Working Temperature | -25° to 55° Celsius | |
Alarm Output | NC <=1.5sec |
segun abati
Hello ,
I am working on getting clients for this technology. Please let me have a full brochure and confirm if it can be installed on Fences .
If it can not be installed on fences, please let me know which ones can be installed on fences with a distance of 150metres between the sensors.
I would prefer a solution that would not be obvious to passers by.
Also let me know the cost of the solution.
reply
Hannelie de Kock
Could I please have prices of your beam motion detectors?
I need different prices to be able to decide on the correct one for our yard.
Thank you
reply
Unifore
Hi there,
Thanks for your inquiry. This item is very heavy, the transportation fee is much expensive than its cost, hence we don't export this item to foreign market.
reply
