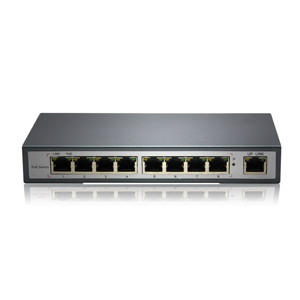

8CH PoE Switch Hub for IP Cameras IEEE802.3af
Now security is moving to energy saving trend, Power over Ethernet (PoE) technology plays very important role to optimize the IP surveillance systems. POE8001P is industrial grade 8 ports PoE network switch, designed for not only wireless AP transmission, VOIP, but also working for PoE IP cameras for IP based advanced surveillance systems. With 8 10/100Mbps ports, it supports up to 8 IP cameras for providing power supply and network connection. This network hub supports Cat 3, Cat 4, Cat 5 cable connection, and maximum bandwidth up to 1.6 gigabit, extreme lowest network latency ≤20υS. With smart MCU design, this system can automatically recognize the PoE IP device or Non-PoE IP devices. Automatically discontinue power, when the PoE IP device is disconnected. One Port "Auto UpLink" function, allow this switch automatically provide suitable PoE type, speed, duplex, cable type.
POE8001P is multi-purpose PoE switch/hub, which supports many protocols or standards including IEEE 802.3 10Base-T Ethernet, IEEE 802.3u 100Base-TX and 100Base-FX Fast Ethernet, IEEE 802.3x Flow Control and Back Pressure,IEEE 802.3af DTE Power via MDI, IEEE 802.2af. It's affordable price PoE hub, fits any small network infrastructure and adopting power over ethernet to simplify the installation of IP network device, also reduce the cost for installation and maintenance.
Key features
- Standard IEEE 802.3af protocol up to 8 ports
- Embedded 8-port PoE, 1-port uplink
- Each PoE port up to 15.4W
- Total maximum power 105W for all ports
- Maximum network bandwidth 1.6 gbps
- 10/100Mbps ports for data transmission
- Lowest network latency ≤20uS
- Support Cat3, Cat4, Cat5 cable
- Durable metal casing for desktop or wall installation
- Font panel with system LEDs
- Each ports with LEDs for Link, Activity, Speed, PoE Active, PoE Fault
- Working voltage 48V 2.5A
- CE, FCC part 15, VCCI Class B, EN55022, Ctick, EN55024 compliant
8CH PoE Switch Gallery
Download the user manual:POE4/8001P
Applications
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical information
Model NO. | POE8100P | POE8100PF |
Network | ||
RJ45 Ports | 9 10/100Mbps RJ45 Ethernet Ports | |
Ports Function | AUTO Negotiation/AUTO MDI/MDIX | |
Transmission Method | Store-And-Forward | |
Total Bandwidth | 1.6 gigabit | |
Network latency | ≤20 μs for 64-byte frames in store-and-forward mode for 100 Mbps to 100 Mbps transmission | |
Buffer memory | 96 KB | |
MAC | 1,000 media access control | |
Addressing | 48-bit MAC | |
MTBF | 190,000 hours (~ 21 years) | |
Acoustic Noise | 0DB | |
Status LEDs | ||
Indicators | Link, Activity, Speed, PoE Active, PoE Fault | |
Protocol and Standards | ||
PoE | IEEE 802.3i 10BASET | |
PoE | IEEE 802.3u 100BASETX | |
PoE | IEEE 802.3x Flow Control | |
PoE | IEEE 802.1af DTE Power via MDI | |
PoE | IEEE 802.3af | |
Auto UpLink | Yes | N/A |
Optic Fiber | N/A | 155Mbps SC Ports Single-mode Optical Fiber |
ENVIRONMENTAL | ||
Operation Temperature | -10°C ~ 50°C | |
Storage Temperature | -20°C ~ 50°C | |
Dust-proof Casing | Yes | |
ELECTRICAL | ||
Total Power | 120W, POE budget: 110W | |
Input Voltage | 48V DC, 2.5A power output | |
MECHANICAL | ||
Color | Black/Grey | |
Installation | Wall-mount kit | |
Dimensions | 189 x 100 x 28mm | |
Net Weight | 0.7Kg/pcs | |
