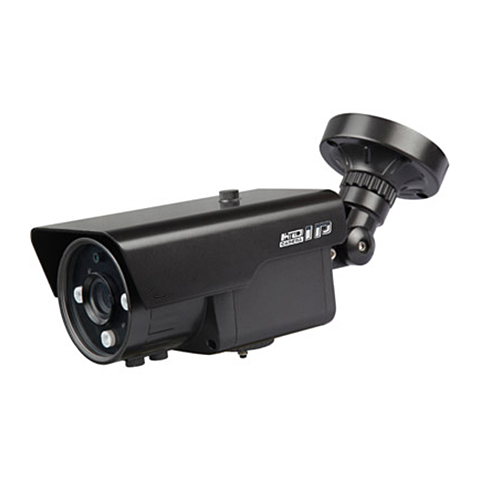

8MP/4K Outdoor IP Security Camera Motorized 3.6-11mm Lens Hi3519V101
Enterprise level outdoor network camera for your 4K IP camera system, it delivers 4K resolution video with exceptional high image quality. The benefits of 4K resolution not just merely represents ultra high definition video, it also can cover a four times larger monitored area than 1080p Full High Definition security camera, which means one 8-megapixel IP camera can replace 4 separate 2-megapixel IP cameras to cover entire area, can greatly reduce cost both on equipment and installation fee.
The product adopts Unifore exclusive aesthetic solid metal housing design, the product is modern, professional for commercial video surveillance project, it also helps to heat dissipation thus offer reliable and durable performance. The product adopts IP66 rated weatherproof design can withstand rain, dust, snow, dew, frost. Unlike other cheap products, the product adopts dual-layer IR friendly glass design can effectively avoid IR-reflection when camera works at night or dim lighting condition. Furthermore, the camera undergoes air vacuum process to make camera inside is dry and empty so that can avoid foggy problem which usually occurs on conventional security cameras.
The 4K camera utilizes industry-leading hardware solution to ensure image quality and durability. It adopts Hisilicon Hi3519V101 SoC, which is able to accept 12-megapixel raw image input and up to 4K at 30 frames per second video encoding capability. In terms of CMOS image sensor, it uses OS08A10 (8-megapixel) and IMX274 (8.51-megapixel) from pioneer manufacturers - OmniVision and Sony. Hisilicon Hi3519V101 so far is the most popular 4K image processor can deliver the impressive high quality ultra high definition video. It incorporates Hisilicon’s 3rd generation ISP can support 2D+3D noise reduction to produce noise-free image. It also supports 4-frame wide dynamic range function, by incorporating with WDR CMOS image sensor to provide high dynamic range image.
Image sensor is the core component of IP security camera. The 4K camera adopts Sony IMX274, which can not only produce high quality image, but also featuring true color reproduction and high light sensitivity advantages. The cam also employs OmniVision OS08A10 CMOS image sensor to deliver decent 4K resolution video. However, comparing with Sony IMX274, the night vision performance of OS08A10 is common. The light sensitivity of IMX274 is better than OS08A10. Intending to capture 4K resolution video, lens also plays a very important role, the camera is equipped with true 4K special coat lens dedicated to video surveillance purpose, it’s a vari-focal type, 3.6-11mm lens can allow users to manually adjust field of view. Users also can choose motorized zoom lens, incorporating with auto-focus, the camera is able to obtain clear image, motorized zoom lens also can provide 3x optical zoom capability. It can greatly simplify installation process and save budges on installation as well as maintenance fee.
Plug&Play 4K UHD Security IP Camera
In addition to complying ONVIF protocol, the camera also built-in Hikvision private protocol, it can be easily connected to Hikvision NVR. It’s also compatible with Hikvision iVMS4200 platform (which is a powerful video management software). Furthermore, it has built-in i8 and i9 protocol to work with our NVRs seamlessly. Unlike other IPCs, the camera offer you plug&play setup and installation. Lastly, Power over Ethernet function is optional, running one Ethernet cable between camera and PoE NVR, your camera will work immediately, no any complex network configuration is required. PoE can increase flexibility and eliminate the necessity of running power cable, you save a lot of money, you can provide a cost-effective solution to your clients.
H.265/HEVC High Efficient Encoding
Hisilicon is one of contributor to H.265 video standard, it owns numerous patents. The camera adopts Hisilicon solution can enjoy the most advanced H.265 video compression technology. Under the same bandwidth, resolution and bitrate settings condition, H.265 video can lower 70% bandwidth consumption comparing current H.264/AVC standard. Running H.265 IP video surveillance system, you can reduce nearly 70% required storage capacity, you can greatly save the fee on video storage. Lower bitrate also helps to reduce video latency, 4K video streaming becomes possible and smooth under normal network environment. There is no need to upgrade your existing network infrastructure aims to deploy 4K IP video surveillance system.
True 4K Real-time Video Monitoring Performance
The 4K camera is empowered by Hisilicon advanced 4K technology, Hi3519V101 has been released, the new version 4K SoC has improved the encoding performance.Now Hi3519V101 can support 4K*2K@30fps+1080P@30fps.(Max.16M@3fps), while Hi3519V100 supports 4K*2K@30fps+720P@30fps.(Max.16M@2fps). Moreover, the Hi3519V101 offers dual-sensor input support, which makes it to be more suitable for panoramic camera's application. The camera has capability to deliver 3840x2160 (4K/UHD/2160p) resolution video at maximum 30 frames per second.
Technical Parameter
Model No. | MI801V65D | MI802V65D | MI803V65D | |
Camera Type | IP Camera | |||
System | Embedded RTOS design | |||
Camera | Effective Pixels | 8 Mega Pixels | ||
Main stream:3840*2160 | ||||
Sub stream:704*576 | Sub stream:704*576 | Sub stream:704*576 | ||
Frames Rates | PAL:15fps(3840*2160)/4K | PAL:15fps(3840*2160)/4K | PAL:25fps(3840*2160) | |
NTSC:15fps(3840*2160)/4K | NTSC:15fps(3840*2160)/4K | NTSC:30fps(3840*2160) | ||
Image Sensor | 1/2" OmniVision OS08A10 8MP CMOS | 1/2.5" Sony IMX274 8MP CMOS | 1/2.5" Sony IMX274 8MP CMOS | |
3840(H) X 2160(V) Approx. 8.51M Pixels | ||||
DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | Dual core 32-bit DSP | |
(Hi3516AV200) | (Hi3516AV200) | (Hi3519V101) | ||
Min. Illumination | Color 0.1 Lux@F1.2 | Color 0.01Lux@F1.2 | Color 0.01 Lux@F1.2 | |
B/W 0.01 Lux@F1.2 | B/W 0.001 Lux@F1.2 | B/W 0.001 Lux@F1.2 | ||
Adjust Parameters | DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc. | |||
Video | Compression | H.265 Main Profile; H.264 BP/MP/HP | ||
Stream | support dual stream,AVI format | |||
Bit Rate | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | support 0.1M ~8Mpbs bit rate adjustable | |
Frame Rates | support 1~30fps adjust | support 1~30fps adjust | support 1~30fps adjust | |
Audio | Input and output | 1CH input( microphone),1CH output( Speakerµphone) | ||
Compression | G.711 compression,support two-way audio intercom,support audio and video synchronized output | |||
Alarm | Types | Motion Detection, Video Blind , Video Loss | ||
Network | WEB Browser | Support WEB remote config( IE, Safari, Google Chrome, Firefox etc.) | ||
Smart Phone | Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian) | |||
CMS Software | Uniform CMS Software(multiple devices management system) | |||
Cloud P2P | Danale P2P platform | |||
Network | 1 * RJ45, 10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP | |||
ONVIF | Support (ONVIF 2.4) | |||
POE | Support(optional) | |||
WIFI | N/A | |||
General | Language | 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai, S-Chinese, T-Chinese and Turkish | ||
IR Cut Filter | Set of double light switch IR-CUT filter | |||
Lens Mount | 4K 3.6-11mm varifocal lens | |||
Infrared Luminary | 3 IR array LEDs | |||
Infrared Wavelength | 850 nm | |||
Illuminate Distance | More than 50 M | |||
Waterproof Criterion | IP67 | |||
I/O Connector | 1*DC Connector ,1* RJ45(10/100M Network) | |||
Supplied Voltage | DC12V/PoE(802.3af/820.3at) | |||
Power Consumption | IR On: 600mA max., IR Off: Less than 200mA | |||
Working Environment | -10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20° ) | |||
Dimensions | 200*100*85mm | |||
Weight | 2kg |
