Basic home network IP camera system 4CH NVR system

IP camera system 4CH NVR system
5.0/5 rating 1 vote

Perfect solution for people who want to setup a complete new high definition video surveillance. This system adopts Power over Ethernet (PoE) technology to support plug-and-play setup, which eliminate the complicated network configuration. Included  1 set of 4 channel network video recorder with 4 Ethernet PoE ports, no need extra network switch, directly allow cameras connect to NVR.

The security cameras included in this camera system are the 1.0 megapixel outdoor IP cameras. They are high performance IP security camera with capability to provide 720P high definition video. With built-in 24pcs infrared LED illumiantors, the night vision distance can reach up to 20 meters, it can offer 24/7 video surveillance to protect your home or small business. The camera adopts progressive scan CMOS image sensor and with built-in IR-CUT filter to capture true color reproduction images, backed with H.264 video compression allowing for smaller bandwidth and better network efficiency.

The included 4 channel network video recorder is compact versatile yet affordable NVR, targeting at home users wishing to setup a complete professional IP surveillance system but unfamiliar with the technology. Based on user-intuitive graphic user interface (GUI) design, and "Peer to Peer" (P2P) technology, no complicated network configuration or additional computer knowledge required. This Linux based NVR has capability to record 4 channel IP cameras in 720P (1280x720) resolution at max.120fps. Equipped with both VGA and HDMI interfaces, the NVR can provide high quality video local display to work with HDTV. This NVR comes with free CMS software and mobile app, it's a perfect entry-level IP solution for home, shop, office.

Key features for IP camera

  • Included 4x 1.0MP IP camera
  • Outdoor Weatherproof IP cameras
  • 1/4" progressive scan CMOS image sensor
  • Mechanical IR-CUT filter provides perfect color images
  • 720P HD, 1280x720 resolution at 25/30fps
  • Advanced H.264 high profile compression
  • Dual streaming for network efficiency
  • Support 3D digital noise reduction (3D-DNR)
  • Support digital wide dynamic range (W-WDR)
  • PoE function, IEEE802.3af standard
  • Onvif compliant IP camera
  • Wall/ceiling mount installation
  • 3-axis bracket design

Key features for NVR

  • Plug-and-play, as easy as DVR
  • 720P real time recording at 25/30fps
  • H.264 compression to deliver smooth HD video
  • Included 4 separate Ethernet PoE ports
  • Built-in network switch, connects to IP cameras directly
  • Pantaplex multi-task
  • Local live ivew, recording, setup, network access and data backup
  • Equipped with VGA and HDMI for full HD 1080P local display
  • Recording modes include full time, schedule, motion detection, alarm event
  • 1 SATA HDD port for max.4TB video storage
  • Recording approximate 30 days without erasing old data
  • Along with remote access through PC browsers, CMS software, Smartphone or tablet
  • Onvif compliant IP equipment

Entry-level IP surveillance system

This is a versatile yet affordable IP camera system, targeting at analog users wishing to migrate to IP surveillance but unfamiliar with the IP technology. This digital system includes everything you need to setup a complete entry-level IP surveillance system, which has no complicated network settings or additional computer required.

IP vs Analog solution

720P Day/Night Monitoring

The system comes with 4x IP HD bullet cameras that are ideal for indoor and outdoor use. These cameras can deliver up to 1.0 megapixel resolution video at 25/30fps. In addition, these cameras are equipped with 3.6mm fixed lens to give you wide view angle monitoring, built-in infrared LED illuminators to give you 60ft of visibility in total darkness.

4 PoE Day/Night IP Cameras

4 channel 720P HD NVR

Included 4 channel video recording and playback with 720P resolution, H.264 video compression, HDMI/VGA simultaneous video output, and Onvif compliant IP equipment to support multi-brand network cameras. Support 1 SATA HDD up to 4TB, with 2 USB 2.0 interface.

4CH PoE 720P NVR

Peer to Peer (P2P) Cloud Monitoring

This system supports P2P function, and comes with free cloud monitoring app. Without hassle network configuration, you can watch the live video from anywhere.

Remote view from PC and smartphone

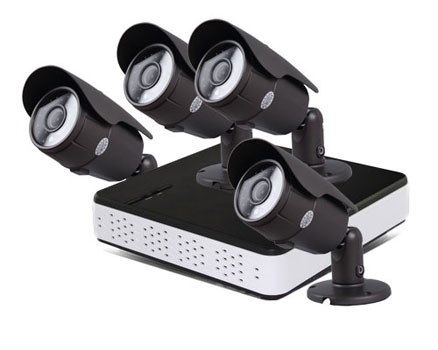

What's in this NVR kit?

IP camera system for day/night surveillance
  • 4 pieces 720P IP Cameras (Black/Korean Grey)
  • 1 set 4CH 720P PoE NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 bundles Ethernet (Cat5) cables (20M)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.


Technical parameters

Camera  1.0MP IP camera with PoE
NVR System 4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576
Frames Rates  PAL:25fps(1280*720)
NTSC: 30fps (1280*720)
Image Sensor 1/4" OV9712 CMOS Sensor
1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP
Min. Illumination Color   0.6Lux@F1.2
  B/W   0.08 Lux@F1.2
Compression H.264 Main profile
Infrared 24pcs Infrared LED Illuminators (F5)
Lens 3.6mm fixed lens, view angle: 72°
NVR Recording 4x720P (1280x720P) at 120fps
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control N/A
USB interface 2*USB interface
Power supply DC48V PoE standard power supply
Size 215(W)x215(L)x45(H)mm
