Best diy home camera systems 720P PoE NVR system

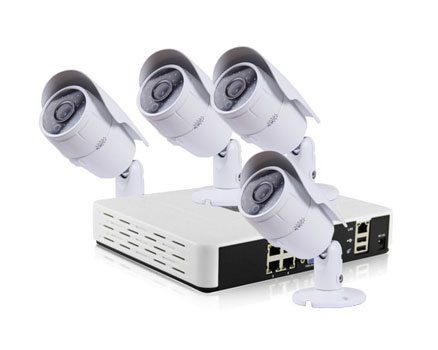

4CH 720P PoE NVR system
4.0/5 rating (5 votes)

Security equipment can protect yourself and your family from the unexpected. If you are looking into a home security solution for your home, then you will undoubtedly come across a variety of home security systems. Since the rapid technology evolving, security system becomes easy to use. Unfortunately, most of IP digital camera systems are designed for professional camera installers, which prevent users install the systems by themselves.

Unifore is proud to release its latest Do-it-yourself home camera system. This system contain all the equipment you need to setup a 4 channel IP camera system, which is ideal digital camera system to protect your home or small business. To avoid hassle installation, this system adopts Power over Ethernet technology, which can eliminate the required power cable wiring and additional power supplies.

Different from traditional home IP cameras, this system includes 4x outdoor IP bullet cameras, this enable the system can be installed in both indoor and outdoor environment. Utilizing latest IP solution which is based on progressive scan CMOS image sensor and H.264 SoC chipset to deliver smooth high definition video streaming with high clarity. The included 4 channel network video recorder can record/playback HD video in 720P resolution in real time. It supports 1 SATA HDD, can record and store video for approximate 30 days without erasing old data

With this camera system installed, user not only can access and config each of IP cameras through web browsers, but also can watch live video through Internet Browsers, PC software, smartphone or tablet.

Key functions for IP cameras

  • System includes 4x IP cameras
  • IP camera with aesthetic compact design
  • Equipped with 24pcs infrared LED illuminators
  • Night vision range 20 meters
  • Equipped with 3.6mm wide view angle lens
  • 1.0 MP progressive scan CMOS image sensor
  • Built-in IR-CUT filter to capture true color reproduction images
  • H.264 codec, and dual streaming technology
  • Video streaming resolution 1280x720P at 25/30fps
  • Support PoE function, IEEE802.3af standard
  • Included 3-axis swivel bracket
  • IP66 rated weatherproof, indoor/outdoor use
  • Onvif compliant IP equipment

Key functions for NVR

  • Included 1 set 4 channel network video recorder
  • 4x Ethernet PoE ports to work with PoE/Non-PoE IP cameras
  • Built-in network switch function
  • Support plug-and-play installation
  • Video recording/playback in 1280x720 resolution at 120fps
  • Multiply recording modes include full time, schedule, motion detection, alarm event
  • Support 1 SATA HDD, max. 4TB
  • VGA and HDMI local video output
  • Multiply languages graphic user interface (GUI) system
  • Included 2x USB 2.0 ports
  • Built-in multiply network protocols, support FTP, Email notification, snapshot functions
  • Advanced web function for remotely monitoring
  • Onvif compliant IP equipment

Home Digital Camera System

Say goodbye to old analog system. The new IP camera system gives you not only high definition solution, but also advanced network functions, which allow you watch the live video from anywhere. Most importantly, you can use Power over Ethernet technology for Do-it-yourself installation.

IP vs Analog solution

High Definition 720P Monitoring and Recording

Live view and video recording at 720P high definition resolution. Enjoy the high quality images this system provides, you will never miss anything, giving you every details you need, even can recognize the face.

4 PoE IP Cameras

Plug-and-play setup with PoE NVR

Setup a complete IP camera system can't easier than before. This kit includes 4x IP cameras with PoE, and 1 set 4 channel network video recorder (NVR) with 4 separate Ethernet PoE ports, built-in network switch function. Greatly simplify the installation process, and plug the camera to NVR, turn on the NVR, the system starts to work.

4CH PoE 720P NVR

Peer to Peer (P2P) Cloud Monitoring

This system supports P2P function, and comes with free cloud monitoring app. Without hassle network configuration, you can watch the live video from anywhere.

Remote view from PC and smartphone

What's in this NVR kit?

IP camera system for home and shop
  • 4 pieces 720P IP Cameras (Ivory/White)
  • 1 set 4CH 720P PoE NVR
  • 1 pc AC/DC adapter for NVR
  • 1 pc USB mouse for NVR
  • 4 bundles Ethernet (Cat5) cables (20M)
  • 4 bags screws for installation
  • 1 CD (manual and software)

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.


Technical parameters

Model No. NVR-720P-ELITE
Camera  1.0MP IP camera with PoE
NVR System 4CH 720P PoE NVR
Camera Effective Pixels 1.3 Megapixels 1.0 Mega Pixels
Main stream:1280*960;1280*720 Main stream:1280*720
Sub stream:704*576
Frames Rates  PAL:25fps(1280*720)
NTSC: 30fps (1280*720)
Image Sensor 1/4" OV9712 CMOS Sensor
1.0 megapixel resolution (1280*800)
DSP Dual core   32-bit DSP
Min. Illumination Color   0.6Lux@F1.2
  B/W   0.08 Lux@F1.2
Compression H.264 Main profile
Infrared 24pcs Infrared LED Illuminators (F5)
Lens 3.6mm fixed lens, view angle: 72°
NVR Recording 4x720P (1280x720P) at 120fps
Recording Mode Manual> Alarm> Motion detection> Schedule
Video save HDD. Network
Space CIF: 5G / day / channel D1: 20G / day / channel 720P: 40G / day /channel 1080P: 80 G/ day/channel
Audio 1CH RCA Input/1CH RCA Output
Video inquiry Point-in-time retrieval, calendar search, event search, channel search
Backup mode Network backup, USB mobile HDD, USB Burner, DVD-RAW burning
Video output 1CH BNC,1CH VGA,1CH HDMI (1920*1080P)
Network interface RJ45 10M/100M/1000M
HDD 1 SATA HDD (Max.4TB)
PTZ control N/A
USB interface 2*USB interface
Power supply DC48V PoE standard power supply
Size 215(W)x215(L)x45(H)mm

Customer Feedback (8)

  • Donald P. Reynolds

    Donald P. Reynolds

    17 October 2014 at 23:41 | #

    What is the cost for this set up and will it interface well your G60 system?


  • Unifore


    21 October 2014 at 22:17 | #

    Hi there,

    This NVR kit doesn't have alarm input, therefore it can not connect to G60-Ultimate alarm system.


  • George


    25 January 2015 at 04:07 | #

    I tried to use a camera from this package using another NVR POE bought from HKVSTAR too but the cameras are not recognised or powered on.... Why? Is there a way to use any of those cameras on different NVR POE?

    Can i wire them differently?


  • Unifore


    25 January 2015 at 22:25 | #

    Hello George,

    Thanks for your feedback.

    The NVR PoE are compatible with Onvif IP cameras (including cameras from this package). When you use another different NVR (including our models), you need to choose the appropriate encoding resolution.
    Our several clients encountered similar problem (the camera can be recognized, but can't display any image), then solved it through choose right encoding resolution.

    More information, please read this article:
    Lastly, to obtain prompt response for technical question, you can submit your ticket to


  • George


    14 February 2015 at 06:03 | #

    Hello... Thanks for your reply

    My main issue is that your NVR EN6283-POE won't powered on the cameras of this kit.

    Are those cameras able to operate with EN6283-POE ?


  • George


    12 March 2015 at 06:55 | #

    Havent got any reply yet...

    Thanks in advnace


  • Unifore


    12 March 2015 at 21:19 | #

    Hello George,

    Thanks for your inquiry.

    I have already forwarded the message to our sales team. They will contact you with email!


  • athif


    30 August 2017 at 11:12 | #

    whats is the cost of this setup?
