Ceiling PIR motion detector

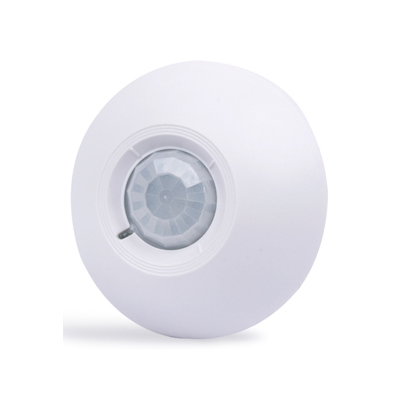

Name: 360 Ceiling PIR Motion Sensor
Model:VS-WX100
Ceiling PIR Introduction
Wireless ceiling-absorbing infrared acquisition equipment, uses the fuzzy logic parsing technique, which is characterized by high detection sensitivity and low rate of false alarm. It is the best probe heads used in window and corridor.
Download Ceiling PIR Flyer in PDF: Click here !
Ceiling Motion Sensor Main Features
Dual element pyroelectric infrared sensor
Ceiling mounted
Fireproof ABS housing
LED ON/OFF optional
Tamper Protection Design
Anti white light interference
Fresnel lens
Automatic temperature compensation
SMT adopted, anti-RFI & anti-EMI
Pulse count optional
Alarm output N.C./ N.O. optional
Ceiling PIR Technical Parameters
| Electrical source: | Hardwired 9-16V, Wireless (battery of DC9V) |
| Consumption of current: | 25mA |
| Warning time: | two seconds |
| Warm-up time: | five minutes |
| Angle of level: | 360 degrees |
| Alarm Output: | N.C or N.O, DC 28V, 100mA |
| Tamper Output: | N.C, DC 28V, 100mA |
| Detect distance: | 5-7 meters (diameter) |
| Radiate distance: | 300 meters (beeline without obstacle) |
| Radiate frequency: | 433MHZ±1MHZ |
| Optics lens: | 30 angle |
| Electron magnetism interference: | 30V/m 10MHz?1GH z |
| Working temperature: | ?10??+50? |
| Working humility: | 10?90% |
| Dimension: | 106mm * 36mm deep |
