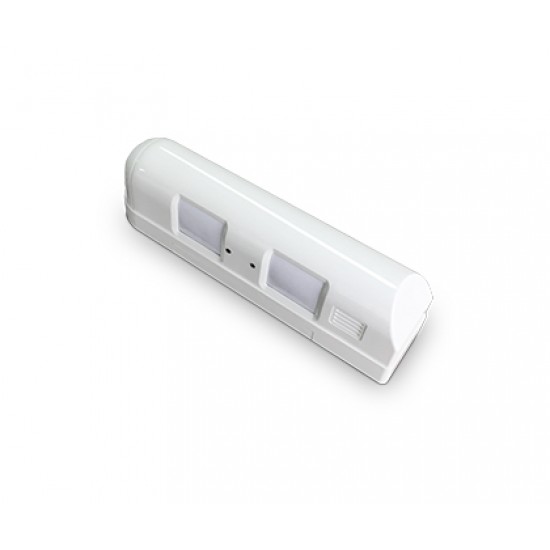

Outdoor Wireless Curtain PIR Motion Sensor

The advanced and innovative wireless outdoor motion sensor provides 4 different detection zones to protect your critical infrastructure or valuable property. The detector has built-in dual PIR motion sensors, by integrating with special fresnel lens design can create 4 detection areas from its both left and right sides. Because of this reason, the detector is the best product to be installed on walls, doors, windows etc places which require wide area intrusion detection.

It’s a curtain type PIR motion sensor has narrow angle but long range distance detection capability. The product can be the best replacement for photoelectric beam detectors, yet it’s lightweight and cost-effective. Unlike conventional PIR motion sensors merely adopt logic circuit design, this PIR is an advanced detector has microcomputer processor can analysis Infrared energy level and effectively filter false alarms caused by rain, snow, pests, even pets. It also employs true temperature compensation technology to provide reliable detection. Including high/middle/low three level adjustable for detection sensitivity to provide you a great flexibility.

This curtain PIR motion sensor is a wireless detector has built-in RF communication module, it can communicate with wireless alarm panels through 433MHz radio frequency. It’s an ultra low power consumption product. The product utilizes rechargeable battery pack which can last up to 24 months. The detector adopts IP66 rated weatherproof design can be suitable for both indoor and outdoor intrusion detection applications.

Specification

• Power supply: 3.6V DC (Rechargeable battery pack)
• Working current: 18uA
• Detection range: 24 meters (12 meters per side)
• Sensor unit: 2* dual-element PIR sensor
• Detection zone: 4* separate detection zones
• Installation height: 0.8-1.2m
• Sensitivity: high/middle/low adjustable
• RFI/EMI: >30V/m 500MHz
• Alarm output: eV1527/PT2262
• Wireless frequency: 315/433MHz (default)
• Transmission range: 300 meters (in open space)
• Working temperature: -20 Celsius to 55 Celsius degree
• Anti-UV: >10000Lux
• Detection speed: 0.2m/s to 3.5m/s
• Pet immunity: max. 30Kg
