SIM Card Wireless Intrusion Alarm Systems

GSM wireless intrusion alarm systems
4.0/5 rating (26 votes)

Name: GSM intrusion alarm systems
30 wireless zones, 8 hard wired zones
Model:G70-Ultimate

G70-Ultimate is a state-of-art GSM intrusion alarm system. It's not only based on GSM cellular technology (GSM SIM), but also work with traditional telephone line  (PSTN). This alarm with complete new modern, science, aesthetics and stylish design, blending into your home & office decoration. Using professional vivid LCD display, you can setup and operate the alarm with ease, and smart illuminated touch keypad for easy operation. The alarm contains 30 wireless zones and 8 hard wired zones (optional). Thanks for embedded user-friendly menu system, it allow people to operate and setup alarm under 30 minutes. Additionally, The alarm system allows you to listen in at your side remotely via your mobile phone and control the alarm via text message. The system is right choice for intrusion, fire, gas leak detection, and suitable for your residential, office, warehouse, shopping mall, retailing store, workshop...and more.

Please note the alarm system can work with landline and GSM. When your landline failes to operate or disconnect, the system will automatically switch to GSM. More over, the system still can work, even without SIM card or landline connection, but you can not use the GSM function.

GooglePlay Apple Store

Quick check the alarm with PDF file: G70-Ultimate

New GSM Wireless Intrusion Alarm System

Home alarm system plan

G70 alarm systems

The key functions of GSM intrusion alarm

Intrusion detectionThe alarm system is working with various intrusion sensors such as PIR motion sensor, door sensor, glass break sensor...etc. When the system detect intrusion, the alarm system will trigger the alarm and send alarm signal immediately. The system can effectively deter theft, and detect intrusion, break-ins, as well as keep your home and office from strangers.

Fire detectionWorking with fire sensor such as smoke sensor and heat sensor, As soon as the smoke detector trigger an alarm, the alarm system will set off siren and report alarm via GSM or landline. The system can protect your premises from fire disaster under 24 hours monitoring.

Wireless technologyComplete wireless technology and no cables required for installation, just plug-n-play alarm system. The system can work without traditional telephone line, and it is equipped with wireless GSM cellular communicator, sending alarm via wireless GSM cellular network. Wireless sensors are powered by batteries, without any wiring for installation.

DIY alarm systemThe system with professional vivid LCD display and backlit touch keypad design,embedded with user-friendly operating system. No professional knowledge requires, complete do-it-yourself. Providing 24 hours technical support, and answer your technical questions in fast speed.

Self-monitoring alarmSelf-monitoring alarm systems, If use the GSM function, SIM card is required, and you can choose a contract SIM or a Pay-as-you-go SIM. The system can store up to 5 personal emergency numbers for alarm receiving. You can choose whether system report alarm via audio call or text message.

Alarm monitoring serviceThis system is compatible with ADEMCO Contact ID. It can be link into central monitoring station for 24 hours 7 days alarm monitoring service. The system not only can report alarm signal to CMS, but also report system status (Arm/Disarm, Battery low, Phone disconnect, Manual test, Schedule test report).



Alarm System Features

  • GSM plus telephone line compatible
  • Quad-band GSM communicator, work in any countries around the world.
  • Smart touch keypad plus LCD display
  • 30 wireless zones, support 116 units wireless sensors
  • 8 hard wired zones (optional)
  • Maximum support 8 units keyfobs/wireless LCD/LED keypads
  • Store 5 phone numbers and 1 central monitoring station number
  • Alarm notification via audio phone call and text message (SMS)
  • Home Arm (Partial Arm), Away Arm
  • Exit/Entry delay, time adjustable
  • Voice memo recordable (10 seconds)
  • Advanced zone attribute, fully programmable
  • Bypass zone support
  • Door bell function
  • Smart zones function
  • Built-in siren
  • Support wireless/hardwired indoor/outdoor siren
  • Siren yelling time adjustable
  • Power off SMS
  • 100 alarm logs, 100 operation logs
  • Compatible with ADEMCO Contact ID
  • Upload status to central monitoring station
  • Work with CCTV system, IP camera

Standard package items include

  • 1 G70-ULTIMATE Alarm Control Panel
  • 1 Wireless PIR Motion Sensor (VS-WH400)
  • 1 Wireless Smart Magnetic Contact (VS-PWMC)
  • 1 Wireless Indoor Strobe Siren
  • 2 Wireless keyfobs
  • 1 DC/AC Adapter
  • 1 Installation Bracket & Screws
  • 1 Instruction Manual

Download the product's user manual:User Manual

Product's image gallery

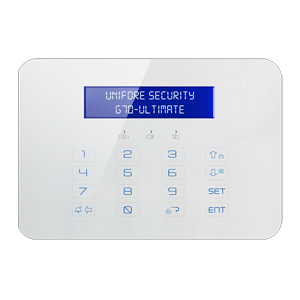

GSM alarm panel GSM alarm panel side view Wireless strobe siren Wireless PIR Motion Sensor Wireless Door Sensor

Product specification

  • Working voltage: AC=100~230V, DC=12V 1A
  • Static current:
  • Built-in Lithium-ion backup battery: 3.7V 800mAH(rechargeable)
  • Standby: around 16 hours, Full charging time: 12 hours
  • GSM Frequency:850/900/1800/1900MHz
  • GSM Transmission power: 2W
  • Receiving and emitting frequency: 433MHz (868MHz optional)
  • Working condition:Temperature: -10ºC ~ 50ºC Humidity: <80%
  • Alarm panel dimension:168×112×26(mm)

Premium Lithium Batteries Last 3 Years

Unifore PIR motion sensor runs on 6LR61 9V Battery, the power capacity is 4-5 times than normal 6F22 battery (99% of our competitors'sensors are using this cheap battery-6F22, only last around one year). Now we upgrade our entry sensor (door/window magnetic contact) to rechargeable Lithium battery, it's small and compact size, but with 5-6 times capacity than normal 12V 23A battery. You don't need to think about replacing them for up to 3 years. After 3 years you can new ones at any retail store. Replacing batteries takes 30 seconds. The alarm panel also runs on Lithium rechargeable batteries, ensuring your alarm system is running even when the electricity fails.

Customer Feedback (30)

  • Leo

    Leo

    16 April 2013 at 10:57 | #

    Wait several days for sample, finally received this alarm kit. The alarm panel with very sexy design, with touch keypad (backlit when touch the button) and LCD display. Unlike other touch pad alarm system, This alarm kit can both support SIM card and traditional phone line, and the price is very competitive. The alarm panel with very intuitive menu system, that means programming or setup can be completed under 30 minutes. During whole testing period, I only can not enroll extra wireless siren to the system. After get the fast reply from technician online, I solved this small issue. If you want to import alarm system from China, and don't want to waste money in rubbish alarm system, then you should choose this alarm without any hesitation. The manual comes with package is not same in the website. I contact the sales staff, they said they are printing the manual. We are focusing on OEM cooperation, this little thing will not bother us.

    reply

  • Unifore

    Unifore

    16 April 2013 at 23:42 | #

    Hello Leo, thanks for your review, now we are revising the user manual for printing. We are looking forward to receive your OEM order.

    reply

  • Erik

    Erik

    17 April 2013 at 02:54 | #

    I never write product's review before, after tried other alarm system from China, I bought this one, it works great, it's a hassle free alarm kit. Actually I purchased this alarm kit with extra 3 PIR motion sensors, 4 door sensors, 1 smoke sensor and 1 flood sensor. All these components can work with this alarm, and programming is simple. The alarm panel is very elegant and included with wall mounted bracket. I programmed my phone number into the alarm system, because I don't want to pay monitoring service fee. In case of detection, the system can call my phone number and send text message, and It allow you to monitor the voice. I installed door sensor for all entry points of my house, and wall mounted PIR motion sensor beside the door for double protection. The extra wireless flood sensor works great, and sensitivity is very high, I installed it in my basement, and make sure the flood sensor attached to ground firmly.

    reply

  • Enrique Cruz

    Enrique Cruz

    22 April 2013 at 10:21 | #

    Estimadosa Señores estamos interezados en sus productos GSM quad Band agradeceremos enviar precios de muestras FOB para el Peru

    reply

  • carlos mendes

    carlos mendes

    23 April 2013 at 17:58 | #

    i like to see the price list

    tanks

    reply

  • Con

    Con

    28 April 2013 at 10:04 | #

    Hello, Is There a low battery indication on the lcd screen of the G70 panels, so you can see which detector has a low battery. I think that is better than a led indicator on the detector.

    reply

  • Unifore

    Unifore

    29 April 2013 at 03:25 | #

    Thank you for your inquiry. Now the system already added with this feature, when the sensor's battery is low, the alarm system will keep "beep", check the event log, you will see which zone's battery is low. In addition, you can disable this function.

    reply

  • Steven

    Steven

    30 April 2013 at 07:03 | #

    Value for money, this alarm is a good looking alarm with modern and discreet design, all the component with internal antenna, as well as the alarm keypad. The system works well and come with installation bracket for easy wall mounted on walls. The enclosed manual is not user-friendly, thanks for the online PDF manual, it provide more detail and comprehensive information for setup this alarm.

    reply

  • Con

    Con

    03 June 2013 at 09:40 | #

    I have question about detectors with learning code.
    Your detectors with learning code have they all a different code or use you only a few code's for all the detectors.

    reply

  • Unifore

    Unifore

    03 June 2013 at 22:02 | #

    Hello Con, Thanks for your feedback. For the learning code, each of sensors with unique code and the code is hidden. This is major difference between cheap sensor and high quality sensor. If you are looking for more information about it, you can check this article: http://www.hkvstar.com/technology-news/the-difference-between-fixed-code-pt2262-and-learning-code-ev1527.html

    reply

  • Manny

    Manny

    03 July 2013 at 23:11 | #

    I have a quick question. can i have more than one keypad for different entrances

    reply

  • Unifore

    Unifore

    07 July 2013 at 22:00 | #

    Hello Manny,

    All our alarm systems are supporting maximum 8 units wireless LCD/LED keypads for operation. It's sure that you can install more than one keypad for different entrances.

    reply

  • Con

    Con

    21 July 2013 at 08:42 | #

    What languages are available for the G-70 Ultimate.

    reply

  • Unifore

    Unifore

    21 July 2013 at 22:45 | #

    The alarm system can support English, Dutch, Spanish, German, Finnish,French,Danish...etc. It can translate to majority of languages of Europe.

    reply

  • kel

    kel

    24 July 2013 at 00:54 | #

    hi

    i would like to check for your G70 ultimate, do all the sensors come with 2 way communication to show low battery of the sensors, as well as informing which door or windows are still open when you arm the system?

    reply

  • kel

    kel

    24 July 2013 at 00:58 | #

    with regards to Manny's query, can I then buy 3 G70 ultimate and use one as the main system and the other 2 G70 as the sub system? i have 3 storey home, can i install 3 of the G70 for each level?

    reply

  • Unifore

    Unifore

    24 July 2013 at 03:10 | #

    Yes, the alarm systems support low voltage reminding function. If you enable it, the system will make the didi sound for low battery status of sensors, also you can find the status in event log from panel operation.

    reply

  • Unifore

    Unifore

    24 July 2013 at 03:19 | #

    If it's third floor residential house, then we don't suggest to use 3 alarm systems. Instead, using the one alarm systems, and install wireless sensors in each of floor. By adding with wireless signal repeater, it can solve the long distance transmission between the alarm panel and wireless sensors. By the way, the alarm system supports up to 8 units wireless LCD/LED keypads.

    reply

  • Rich

    Rich

    07 September 2013 at 23:02 | #

    Why is this system so difficult to operate? For example to arm it the user requires to perform FIVE steps? Press one key + enter passcode + ENT + ArmAway key + ENT? Why not just TWO steps: passcode + ArmAway? That's how G5 system gets armed - simple and user friendy, you don't even need to read the manual to figure it all out.

    reply

  • Unifore

    Unifore

    08 September 2013 at 21:45 | #

    Dear Rich, thanks for your feedback. They are two different system. G70-Ultimate without shortcut key for Home Arm or Away Arm. If you are looking for shortcut key for the alarm operation, you can take a look at this system: http://www.hkvstar.com/item/gsm-wireless-alarm-system.html

    reply

  • Rich

    Rich

    10 September 2013 at 00:58 | #

    Thanks for your quick reply. So is there any reason you build G70-Ultimate with a much lengthier sequence for arming the system? Was G70F (you referred me to as the one with shortcut keys) a newer improved version of G70-Ultimate or they are two independent systems serving two different market segments?

    reply

  • Unifore

    Unifore

    11 September 2013 at 04:38 | #

    G70-Ultimate is based on the old G70 alarm systems. G70F is a newer improved version of G70-Ultimate. Now we launched the G60-Ultimate alarm which is newer improved version of G70F. The new alarm system with more advanced features, and same stable performance like G70F, you can read more information from this page: http://www.hkvstar.com/pre_order_g60.html

    reply

  • Leo

    Leo

    20 September 2013 at 23:06 | #

    Recently cancel the monitoring system for my home alarm. I want to purchase the self-monitoring my system, it's best option for me. Self-monitoring system without need to pay montly fees at all. The alarm system with GSM cellular connection to inform me via auto dialing phone call or text message, once an alarm occurs. I like this alarm systems with modern interface (touch screen) and wireless communicatons.

    reply

  • Robert

    Robert

    13 November 2013 at 14:13 | #

    what is the cost????

    reply

  • alex

    alex

    27 November 2013 at 17:30 | #

    do you guys have an iPhone app

    reply

  • Paulo

    Paulo

    15 January 2014 at 20:04 | #

    hello send to Portugal?
      which the price of the alarm?
    price of each magnetic sensor?
    price motion detector?
    Price remote control?
    Price smoke detector?
      Price detector water?
    price signal amplifier?
    Price Outdoor siren with battery?
    thank you

    reply

  • Ana chapa

    Ana chapa

    20 January 2014 at 13:43 | #

    Hi where can i find the IOS (iphone) app i can not find it on app store or itunes

    reply

  • Roxanne

    Roxanne

    19 May 2015 at 19:10 | #

    Hello,
    Can it communicate with monitoring center?

    reply

  • Unifore

    Unifore

    20 May 2015 at 23:03 | #

    Yes, it can connect to monitoring center through CID protocol.

    reply

  • HILLARY

    HILLARY

    16 April 2017 at 17:31 | #

    CAN I GET A QUOTATION FOR THIS PARTICULAR SYSTEM PLUS AN OUTDOOR SIREN AND ALREADY INSTALLED 2 PAIRS OF BEAM DETECTORS WITH TWO MORE PIR SENSORS

    reply
