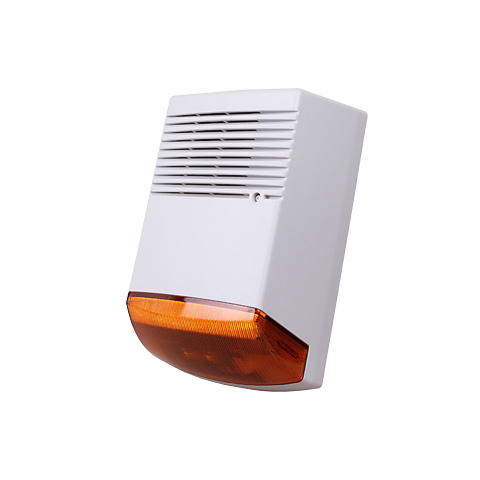

Hardwired Vandalproof Outdoor Strobe Siren Burglar/Fire Alarm

Vandalproof outdoor 30w strobe siren for burglar/fire alarm system
3.8/5 rating (14 votes)

Hardwired Outdoor Strobe Siren

We offer outdoor strobe sirens or bell boxes to work with a wide range of burglar alarm, fire alarm, emergency alarm systems. The modern, aesthetic and professional strobe siren can provide you a strong deterrent to intruders, while remind nearby people by utilizing powerful magnetic dynamic sounders can output 120dB at 1m volume sound. It also has strobe light to provide visual warnings.

Unlike conventional strobe siren products, this siren adopts vandalism-proof design. It has two protection layer housings to against potential vandalism. The housing material is fireproof material can still operate in event of fire alarm breaks out. Moreover, it adopts true micro-controller circuit design support positive and negative siren trigger, positive and negative flash trigger working modes. Moreover it has built-in rechargeable backup battery pack (12V 1.3AH), it still works even external power is failure. Backup battery also ensures the siren will trigger an alarm when connection cable is cut intentionally by intruders. The product has 3-way tamper switches design can effective prevent dismantling. All these unique features only can be found in our professional outdoor strobe siren.

The 30W outdoor siren is a new generation of professional high power acoustic siren with back-up and flash, which includes all performance and reliability for security alarm system. Military usage plastic plug metal cabinet design, mainly be usage in Bank, Hospital, Shop...etc commercial buildings.

Main Features

Highly resistant ABS housing, UV prevention
Inside metal cover for double protection
Magnetic dynamic sounders with 120BD at 1M
Positive/Negative siren trigger
Positive/Negative flash trigger
Battery backup (option)
Len corlors in Red, Orange, Blue
3 Way tamper switch protection
CE approved

Outdoor Strobe Siren Gallery

Outdoor strobe siren front-view Outdoor strobe siren side-view Double protection interior design Interior design for outdoor siren

Technical Parameters:

Operating Voltage: DC9-15V
Current Consumption Standby: 1300mA (alarm + strobe) 30mA
Siren Alarm Period:F.T-Follow trigger, TMR-3 min
Siren Output(SPL): 115dB @ 1m
Siren Tone: Yelp
Frequency Range:1300-2400Hz
Flash Rate: 75 times/min
Backup Battery: Rechargeable lead Acid Battery 12V DC up to 7.2Ah
Dimensions: 270L*193W*100Hmm
Package: 8pcs/Ctn
LEN Colors: Red, Orange, Blue

Download the product manual: scanned version in PDF
