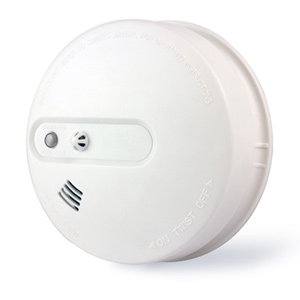

Hardwired Smoke & Heat Detector

Name: Wired Smoke & Heat Detector
Model: VS-YY800

Introduction:

VS-YY800 is the professional fire prevention and detection detector, it combines with smoke detection and heat detection together for accurate fire detection. The smoke detector with elegant housing design, it can support 9-35V DC wide range of power supply. The smoke & heat detector with four wires design (2 wires for power, 2 wires for alarm) can work with burglar alarm system and fire alarm system, it also can work independently (flash).

Smoke & Heat Detector Features:

Smoke & Heat detection for fire prevention
Power supply non-polar input
Double Sided Glass Fiber circuit board
MCU processing adopted
Automatic reset and power-off reset.
Strong adaptability for circumstance SMT Design
High Stability 9-35V DC wide voltage operating range
Low standby current
Stainless steel shield,anti-RFI(20V/m-1GHz)
Dustproof,mothproof and anti-light interference design.

Product's Technical Parameter:

Operating voltage: DC 9V~35V
Standby current: 55uA
Alarm current: 35mA@ DC12V 60mA@ DC24V
Alarm indication: red LED on, relay output
Operating temperature: -10? +50?
Operating humidity: 95% RH
Detection sensitivity:2.06%/ft
Alarm temperature:57?(135?)
Dimension: ?100*46mm.
Execute criterion:EN54-7,UL539
