Hisilicon 2 megapixel IP camera IMX222 Hi3516C
Unifore is pleased to present its new IP camera EW2023K6-E, which is a 2 megapixel and true low illumination HD IP bullet security camera. This camera adopts latest Sony 1/2.8" progressive scan CMOS image sensor (IMX222), and utilizing industrial leading Hi3516C as core processor from Hi-silicon. This camera can gives you an cost-effective option to 1080P recording @30fps.
EW2023K6-E is aethetic design bullet IP camera, which adopts unique IP67 rated weatherproof design. This camera is equipped with 9mm to 22mm vari-focal lens, allowing user to get optimum field of view in different surveillance application. It has 8 pcs high power laser infrared illuminators for long range night vision. The maximum night vision range can up to 60 meters. By the way, it has all-in-one 3-axis swival bracket design, allowing camera to be installed with maximum performance.
This low illumination camera with advanced network features including dual streaming; main stream with full HD1080P, sub-streaming at standard D1/CIF resolution. It supports bitrate adjustable from 0.1Mpbs to 6Mpbs, multiply resolution options to fit your network bandwidth. This new IP camera with built-in web-server which embedded with multiply network protocols including RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP. Most importantly, it's compatible with latest Onvif standard, which increased the flexibility to work with third-party IP devices.
Key features
1/2.8 Sony CMOS 2.43M effective pixels
IMX222 is new new full HD CMOS high sensitivity image sensors from Sony's Exmor portfolio. This image sensor can capture high quality picture at the low illumination and increased the sensitivity in near infrared light. It's designed for day/night security cameras for improving surveillance performance.

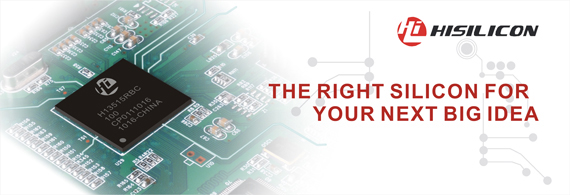

Advanced SoC from Hisilicon
It utilizes the Hisilicon Hi3516C, a new generation SoC designed for the full HD IP camera. Perfectly working with Sony IMX222 CMOS image sensor to provide 2 megapixel resolution with H.264 encoding in real time. The new processor can support 3D noise reduction (DNR) and D-WDR for image enhancement, and HLC, BLC, Gama correction for suitable different installation environment. Furthermore, it supports video intelligent analysis for smart monitoring.
Remote view from anywhere
Built-in standard web-server for remotely access and view. View your home or business on your smartphone or tablet with our smartphone apps, FREE! Whether you’re on the go, or simply away from your home or business, you now have the ability to check in anytime to live view your system. It’s quick and easy, with a peace of mind.
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical information
| Model | EW2023K6-E | |
| Name | 1080P 2Megapixel IP Network Camera | |
| Camera | Lens | Megapixel 9-22mm vari-focal lens |
| IR distance | 50-60 meters | |
| Image Sensor | 1/2.8"Progressive Scan CMOS (IMX222) | |
| Low illumination | Color 0.01Lux@F1.2,B/W 0 Lux@F1.2 | |
| S/N | Above 50dB | |
| Day/Night | Mechanical IR-Cut Filter | |
| AGC | Auto | |
| ATW | Auto | |
| BLC | Auto | |
| Electric Shutter | Auto | |
| Audio/Video Encoding | Compression | H.264/MJPEG/MPEG-4 |
| Codec rate | 0Kbps-6Mbps adjustable | |
| Audio encoding | G711A, G711V, G726 adjustable | |
| Audio sampling frequency | 8K, 16K | |
| Max. Image resolution | 1920×1080 | |
| Frame rate | 1~30fps(1920×1080) | |
| Video Adjustment | Brightness, Contrast, Chrominance, Sharpness | |
| Network | Network Protocol | TCP/IP,HTTP,DHCP,DDNS,PPPOE,FTP,SMTP,NTP,RTP,RTSP,UPNP |
| Safe mode | Authorized user name and password, you can set the MAC address and IP address binding and user permissions. | |
| User permissions | PTZ control, audio intercom, manual recording, alarm control, parameter setting, video playback, view logs, network preview | |
| max. simultaneously users | up to 10 users online | |
| OSD | Time, week, date, bit-rate, camera name | |
| Privacy mask | up to four masks | |
| Dual streaming | Support | |
| Resolution | Main stream：1920×1080、1280×720 selectable；Sub stream：176×144、352×288, 704×576 seletable | |
| Audio | Two way audio communication | |
| Video loss warn | Relay output, send Email | |
| Motion detection | 20 zones, sensitivity：0-9 grades | |
| Motion detection | Alarm output, PC events, video, capture, FTP upload, send Email, electronic map | |
| Sensor Input | NC/NO optional | |
| Sensor Alarm | Alarm output, PC events, video, capture, FTP upload, send Email, electronic map | |
| PTZ protocols | PELCO-D, PELCO-P | |
| Local Storage | Supports standard TF card, the maximum 32G, can achieve timing recording, alarm recording, alarm capture | |
| Common features | Support PC time synchronization, remote upgrade, remote reboot, remote reset and local log query | |
| Port | Alarm input | Yes |
| Alarm output | Yes | |
| Audio input | Yes | |
| Audio ouput | Yes | |
| LAN port | 10/100M Ethernet, RJ45 | |
| PoE | Optional Add-on (IEEE802.3af) | |
| Testing Video | N/A | |
| Power input | 1 | |
| WiFi | Optional Add-on (EW2023K6-E only) | |
| Common | Power | DC 12V |
| Power consumption | Below 8W | |
| Working temperature | -10℃～+55℃ | |
| Working humility | 10﹪～85﹪ | |
| Dimension | 285 × 176 × 138 mm | |
| Installation | Wall/Ceiling mounted | |
| OS Requirement | OS：Microsoft Windows XP、Windows 7 Ultimate Edition / Professional Browser：Internet Explorer、Firefox、Chrome、Opera、Safari | |

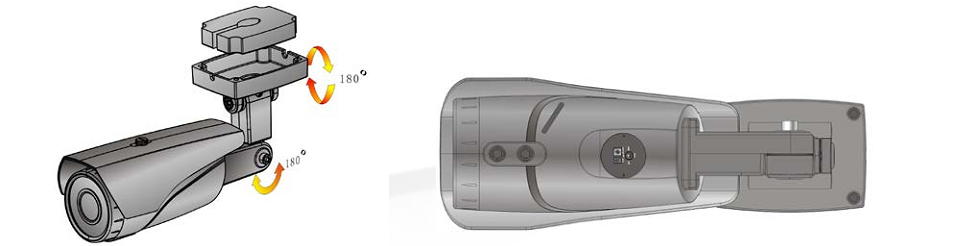

Product's dimension
Singh
I am not able to connect Hi3516c based IP Camera with Dahua NVR.
I am able to access camera from web browser.
My NVR has 4 Port POE Switch In Built. The Switch has gateway 10.1.1.1
IP camera gateway also set as 10.1.1.1
This Hi3516c IP Camera Unique IP Address is set as 10.1.1.70.
Other brand IP cameras are working with IP Address as 10.1.1.65 to 69.
In the NVR,I selected Onvif as the option and entered HTTP Port as 80 and RTSP Port as 554.
User name kept as Admin and password as blank.
In IP camera web interface (photo attached),i have entered 37777 as the media Port since this port is mentioned in NVR network properties.
Do I need to assign any other vale to this media port?
Are these settings Ok.
Still camera is not working.
reply
Unifore
1. Each IP camera should have the unique IP address (and correct network setting) if you connect multiple network cameras to the PoE NVR.
2. If the NVR failed to search the cameras, you can manually add the camera by inputting IP address, protocol, port number, account info on channel parameter.
3. I suspect your media port 37777 is wrong, e.g. our network cameras use port number 8899 when it connects to the NVR via ONVIF protocol.
4. When add the cameras to the NVR, please verify the user name and password are correct. For example, as default the Hisilicon cameras use default user name admin, password: empty. Yoosee cameras uses the default account user name admin, password 123 for the ONVIF connection.
