Home shop outdoor IP/web camera support smartphone view

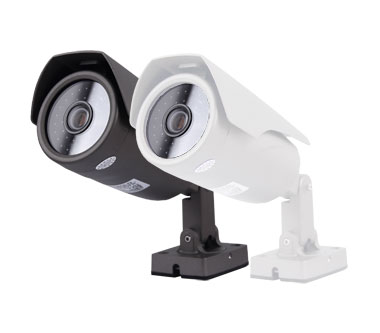

Outdoor IP/web camera
4.6/5 rating (5 votes)

Installing a complete IP surveillance system can't be easier. Today, using the top notch Internet Protocol (IP) network camera become the main trend to protect and monitor your residential or commercial business. Unifore's EW1012K3-D is 1.0 megapixel IP network camera with IR. This new camera with small compact and weatherproof IP66 rated design, which enable it is very suitable for both indoor/outdoor video surveillance applications.

Similar to other products, this camera has advanced web function. After connecting it to network, user can remotely access the IP camera through its web user interface, also can use the provided Android/iPhone/iPad applications to watch live video through smartphone or tablet phone.

This is day/night camera for 24/7 monitoring. It has built-in IR-CUT filter which can allow camera capture true color images at day. With included 36pcs infrared LED illuminators, this camera can under under low lightning conditions, even can capture clear images at night. This camera is capable of seeing up to 30 meters at night.

Utilizing Hi-silicon System on Chip (SoC) technology, this camera supports industrial H.264 video compression to save storage size and reduce the usage of network bandwidth. It can automatically adjust bitrate to fit your network bandwidth, hence broadcasting smooth video streaming. By the way, this web camera features with 3D digital noise reduction (3D-DNR) and digital wide dynamic range (D-WDR) and BLC/HLC functions which can greatly enhance the camera's performance in challenging lightning environments.

IP camera function

  • Protect and monitor your premises
  • Capturing 1.0 megapixel high definition video
  • Support day/night monitoring with infrared illuminators
  • 3.6mm wide view angle lens to cover your whole area
  • Allow maximum 10 online users for live view from anywhere
  • Watch the live video through PC browsers, smartphone or tablet
  • Comes with free PC software and smartphone Apps
  • Being compatible with 3rd party software and IP devices
  • "Peer to Peer" technology, no inconvenient network configuration
  • Power over Ethernet (PoE) to simplify installation
  • WiFi function to allow you setup a wireless system
  • IP66 rated weatherproof design for both indoor/outdoor use
  • Included 3-axis bracket, wall/ceiling mounted installation

Enjoy the high definition monitoring

Say goodbye to old analog surveillance system. You can spend less money on IP surveillance system to achieve high definition monitoring/surveillance. This camera can provide you megapixel resolution images with high clarity. For achieving the good quality images, this camera adopts technologies including:

  • 1/3" progressive scan CMOS image sensor which is ideal for capturing images without motion blur
  • Built-in mechanical IR-CUT filter, automatically switch on to stop unnatural rays enter into image sensor at day monitoring mode.
  • 3D digital noise reduction, digital wide dynamic range, BLC/HLC, slow shutter to enhance its overall image quality
  • H.264 video compression to offer high quality images with small file size

Cost effective video surveillance solution

Different from traditional analog cameras, IP camera is standalone system, which can work without using the professional video recorder. Download and install our free software for your PC, you can manage this IP camera without additional video recorder. With the provided software, user can access and config the IP camera remotely, also it can perform video recording, motion detection, alarm event reporting and video analysis...etc functions.

IP vs Analog solution

By the way, this web cam is compatible with 3rd party video management software, which in turn, giving users great flexibility. Certainly, some home/shop owners may want to use professional network video recorder for video recording, that's the reason this camera is the default model inside our 4 channel IP camera system kit.

4CH PoE 720P NVR Kit White Color

Power over Ethernet (PoE)

This camera can support Power over Ethernet function(OPTIONAL). Why it's so important? Traditional IP cameras require both Ethernet and power supply connection, which means user need to run two different cables for camera's installation. Power over Ethernet or PoE is mature technology in network transmission industry. The PoE enable IP devices receive the power energy (electricity) through Ethernet cable, which in turn, reduce the required power cable for saving installation cost, reduce the hassle maintenance.

Using the IP camera with PoE feature, user can directly plug the camera to PoE NVR or PoE network switch, then it will start work.

PoE IP Camera Connection

WiFi for wireless communication

Don't want to use Ethernet cable? You can choose to add WiFi feature to this top notch camera. When built-in WiFi module, this camera can achieve wireless communication. Just need to connect it to power supply, it will start to work. Offering you easy to use/install solution to monitor your home or shop.

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical parameters

Model No. EW1012K3-D
Camera Type IP Camera
System Embedded RTOS design
Camera Effective Pixels 1.0 Mega Pixels
Main stream:1280*720,704*576;
Sub stream:704*576,352*288;
Frames Rates PAL: 25fps 1280*720/704*576;
NTSC: 30fps 1280*720,704*576;
Image Sensor 1/4"Progressive Scan CMOS Image Sensor
OV9712 1.0 megapixel resolution (720P)
DSP Dual core   32-bit DSP Dual core
Min. Illumination Color: 0.1Lux @(F1.2,AGC ON),0 LUX with IR
B/W 0.01 Lux @ (F1.2,AGC ON),0 LUX with IR
Adjust Parameters DWDR, BLC, DNR, AE, AGC, Day&Night, Mirror,Flip,etc.
Video Compression H.264 Main profile
Stream support dual stream,AVI format
Bit Rate support 0.1M ~6Mpbs bit rate adjustable
Frame Rates support 1~30fps adjustable
Audio Input and output 1CH  input( microphone), 1CH  output( Speaker&microphone) Optional
Compression G.711 compression,support two-way audio intercom,support audio and video synchronized   output
Alarm Types Motion Detection, Video Blind , Video Loss
Network WEB Browser Support   WEB   remote   config( IE, Safari, Google Chrome, Firefox etc.)
Smart Phone Mobile remote Monitoring (iPhone, Android, Windows Mobile, BlackBerry,Symbian)
CMS Software Uniform CMS Software(multiple   devices   management   system)
Cloud P2P www.p2pipc.net,MYEYE platform and other program,Offer SDK
Network 1   *   RJ45,10/100M,Support RTSP/FTP/PPPOE/DHCP/DDNS/NTP/UPnP/SMTP
ONVIF Support (ONVIF 2.0)
POE Support(optional)
General Language 20 kinds of languages such as English, Finnish, French, German, Greek,Italian, Japanese, Polish, Portuguese, Russian, Spanish, Thai,   S-Chinese, T-Chinese and Turkish
IR Cut Filter Set of double light switch IR-CUT filter
Lens Mount Varifocal Lens 3.6mm
Infrared Luminary 36pcs Infrared Illuminators
Infrared Wavelength 850 nm
Illuminate Distance More than 30 meters
Waterproof Criterion IP67
I/O Connector 1*DC Connector ,1* RJ45(10/100M Network)
Supplied Voltage DC12V/PoE(802.3af)
Power Consumption IR On: 600mA max., IR Off: Less than 200mA
Working Environment -10°C~+60°C, 10%~90% ( Built in Heater being optional added for environment lower than -20° )
Dimensions 200*100*85mm
Weight 1kg
