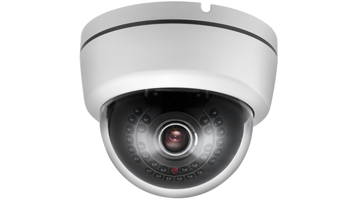

Indoor IP Dome Camera 3MP 1080P HD with IR

Indoor IP Dome Camera 3MP 1080P HD with IR
5.0/5 rating 1 vote

ED2371V is 3 megapixel IP camera, this camera with aesthetics professional plastic dome housing design, suitable for indoor installation. This IP camera is perfect for advanced IP surveillance system which requires to provide ultra images resolution. It's built-in 3 megapixel IP camera module, the IP camera module is adopting the DaVinci DM368 (TMS320DM368) and 1/3 progressive scan CMOS image sensors for true HD video streaming. This IP dome camera can work at day and night, with help of 30 pcs Infrared LEDs, the camera can see up to 100ft at night under complete darkness environment.

ED2371V is equipped with 4mm to 9mm vari-focal lens, this allows user to adjust field of view for flexibility on installation, 3-axis rotation mechanism design for easy setup and get the most ideal view from any installation location.

ED2371V built-in advanced processor, it can support video streaming at 2048*1536@15fps;1920*1080@30fps,1600*1200@30fps, 1280*720@30fps, supporting more advanced features like RTSP, two way audio, P2P, PoE, TF SD card local storage and more. This IP dome camera is Onvif 2.0 compliant network product, working with third-party network video recorder (NVR) and video management software (VMS).

The key features

  • Maximum pixel 3 mega pixel, maximum resolution 2048x1536, output real time at  1920x1080
  • Super low illumination at Color:0.6lux@ F1.2，B/W:0 08ux @ F1.2
  • Wide dynamic range (WDR) at 128DB
  • 2D&3D smart noise reduction
  • 1/3 inch progressive scan CMOS image sensor (Aptina Imaging from USA)
  • Supporting H.264/MPEG-4 video compression
  • 4-9mm vari-focal lens (can be 2.8-12mm)
  • IR-cut technology for true day/night conversion
  • Built-in MIC, two-way talking (paid option)
  • 1 channel  BNC/CVBS video output
  • Protocols TCP,UDP,IP,HTTP,FTP,SMTP,DHCP,DNS,ARP, ICMP, POP3,NTP and RTSP
  • Support TF SD card storage (paid option)
  • Dual streaming at different resolution
  • Working voltage DC12V/PoE (optional)
  • Supporting privacy mask
  • Intelligent motion detection
  • Alarm input/output
  • Built-in web server, accessing via Internet Explorer or desktop software
  • Support with video management software
  • Onvif 2.0 compliant

Indoor IP Dome Camera with IR Indoor IP Dome Camera with IR Indoor IP Dome Camera with IR



1.3 megapixel ultra resolution

1/3" Progressive Scan 3.0Mega Pixel CMOS(Aptina Imaging)，The core component adopt TI DM368 processor，images support single stream.：2048*1536@20fps;dual stream: main stream 2048*1536@15fps;1920*1080@30fps,1600*1200@30fps, 1280*720@30fps, assistant stream:704*576P@30fps，video frame rate: 1Mbps～16Mbps,CBR/VBR lower adjustable.

D1 vs 3 megapixel

120ms lowest video delay

IP camera need to compress the video signal, thus IP camera with ms delay time on video streaming. Compared to other products, our IP cameras with super lowest 120ms video delay.

120ms video delay

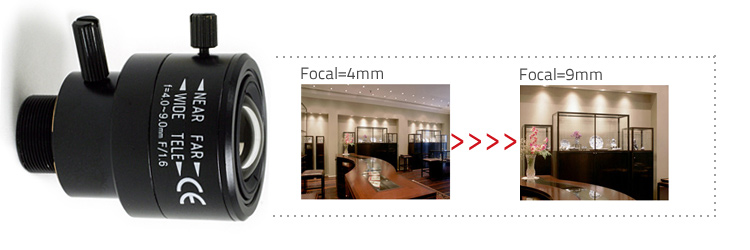

4-9mm Vari-focal lens

Built-in 4-9mm vari-focal lens, manual adjust the field of view for ideal monitoring surveillance scene.

Vari-focal lens 4-9mm

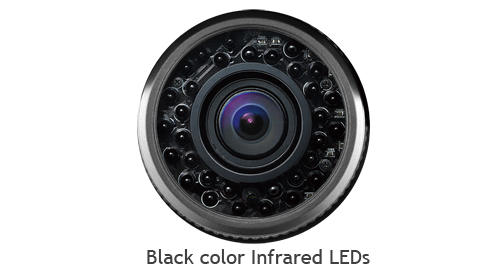

30pcs Black Infrared LEDs

Built-in with 30pcs F5 Infrared LEDs, the camera can capture images under complete darkness environment, IR range up to 100ft.

Black Infrared LEDs

Wide dynamic range at 128DB

Perfect WDR function, allow this IP camera can suitable for installation in varies of light condition, capture clear images minimize the light interference.

Wide dynamic range (WDR)

Dual streaming technology

Dual video streaming for different applications. Local monitoring and recording (video backup) at ultra high resolution, remote surveillance via 3G mobile device at sub-stream for saving bandwidth for smooth video monitoring.

Dual video streaming for local monitoring and 3G remotely surveillance

Technical Information

F

Model No.

ED2371V

General Function

Feature

Wide Dynamic Range

CMOS Type

Aptina Imaging CMOS

CMOS Model

1/3 degree 1.3Mega Pixel

HD Output Image Adjustable

1080P:2048x536P
720P:280x20P
D1:40x80

Illumination

Color:0.6Lux/BW:0.08Lux(F1.2,AGC ON)

IR Distance

20M（30pcs black IR led）

Shutter Speed

1/60Sec~ 1/100,000Sec,Shutter Speed Adjustable

Lens

Standard 4-9mm(F1.2/M12 Mount)Mega HD Lens

Exposure Control

DSP Auto Adjust

AGC & WB

AGC:Auto(high, media, low) White Balance:Auto,Close

S/N Ratio

≥50dB

Network function

Network Steadiness

Auto Reconnect, Register, UPNP, HB Display, Synchronization

Support Agreement

Support ONVIF 2.0, PPPOE,DHCP,TCP/IP,HTTP,UDP,RTP/RTCP, RTSP,UPNP,SMTP,FTP,NTP,DDNS,DNS etc.

Dual Stream

Dual Stream Transfer(H.264,CBR/VBR Adjustable
Main Stream(1M~8Mbps)With Local Skim, etc.
Sub-Stream（0.5MK~2Mbps）With Network Transfer.

Upgrade,maintenance

Support Remote Upgrade, With Password Protect.

Wireless

Adapting P2P Intelligence Mobile Phone Visit

Special function

Optional Function

Charge for Optional,

Mouse Zoom

Click Any Rectangle Area And Zoom In or Zoom Out On the Image by Mouse

3-Axis adjustment

Built in 3-Axis bracket, Adjust the Surveillance Angle at Any Position Easily

Plastic case

ROSH high quality Plastic Cover ,“0 degree warp ray rate” high strength acrylic gauge cover

Smart alarm

Motion detect, Video Shelter, I/O Alarm for Video Lost, IP Address Conflict, Store Abnormal.

Video efficiency

Effective Pixel

1280*1080

Video Frame Rate

50Hz/60Hz: 25fps,30fps,50fps,60fps etc

Image Capture

JPEG for local storage

Image Setting

Saturation, Luminance, Contrast Ratio Adjustable Through Client or IE.

Image rolling-over

Level Transposition, Turn Up-Side Down, Easy for Install & Adjust.

Audio

Audio Encoding

With G.726/G.722/G.711 Standard Code, 64Kbps Transfer Speed

Audio Function

Audio Broadcast Audi Playback

Mount Standard

Power Mount

DC Female Connector，5.5x2.1mm

Network Mount

1c h 10M/100M Ethernet Mouth, RJ45 Mount

Video Output

1ch Local Analog Output, BNC Interface.

Alarm Mount

1ch Alarm Input 1ch Alarm Output

Audio Mount

1ch Audio Input 1ch Audio Output

RS485 Mount

1ch RS485 Mount

Other standard

Working Environment

Environment Temperature-10C~+60C Camera Temperature: 25C~35C Humidity:<90%

Power Consumption

DC 12V±5% ,IR Led on: 5W

Size(mm)

Products Size: 140 x 140 x 120 mm Carton Size: 580 x 430 x 380 mm(36 CTN)

Weight

Net Weight: 0.45 Kg~0.50 Kg Gross Weight:16.20 Kg~18.00 Kg(36 CTN)
