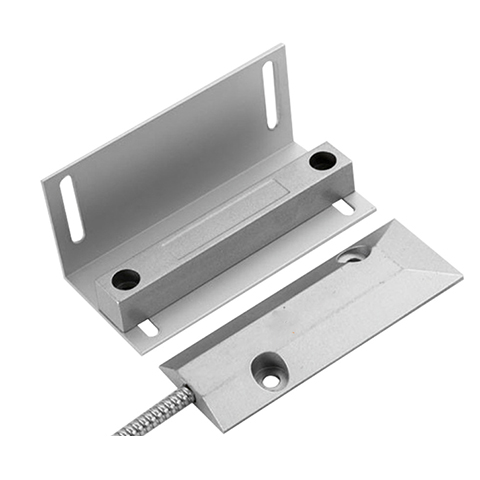

Roller Shutter Gate Magnetic Contact Switch With Bracket

Roller Shutter Gate Magnetic Contact Switch With Bracket
5.0/5 rating (3 votes)

Reliable metal magnetic contact switch for monitoring your garage door. Garage door safety is one of crucial part of your home security plan. From statistics, there are 20% intruders enter from security breaches of garage door.

Unprotected garage door will increase vulnerabilities of your family''s security and safety.Reliable and long-service lifespan, this contact is made of Alloy-Zn/Alloy-Al material to allow it suitable for use in the steel doors commonly found in garage doors.

This unique design metal magnetic contact with built-in high quality and sensitive reed switch for zero false alarm open/close detection. It supports normal closed(NC) output which is the most widely used and standard hardwired connection for alarm system, access control system, and video surveillance system.


Model: MC-50L
Mainly used for roller shutter
Including 6 screws for installation
Housing Material: Alloy-Zn/Alloy-Al
Operating distance: ±10m
Switch Rated-voltage: 100VDC
Housing Color: Silver
Load current: 500mA
Life time: 1,000,000 times
Switch output: NC
Package: 1 pc a bag, 60pcs per cnt
Package box dimension: 375*295*300mm

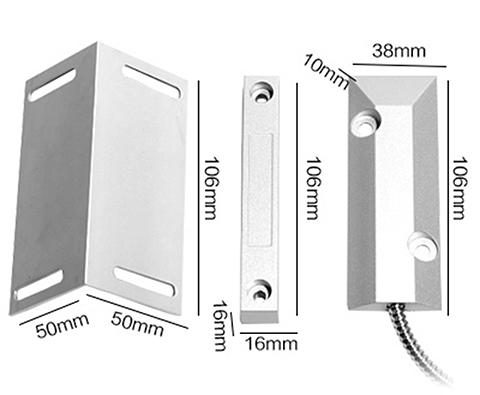

Product Dimension

Magnetic contact switch for roller shutter gate/door

Example Installation

Metal magnetic contact installation diagram
