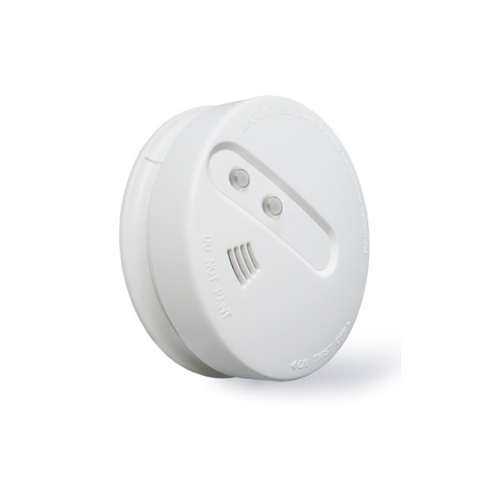

Wireless Photoelectric Smoke Detector Fire Security Sensor

Name: Wireless smoke detector
Model: VS-WY200

Wireless Smoke Alarm Key Features:

Wireless Smoke detector work with wireless alarm
New housing design and adopts MCU technology
Infra-red Photoelectric detecting smoke method
Wireless interconnection support (two wireless detector connect together)
Support hush function
Support self-check function, auto-reset
Flash & sounder when alarm is triggered
SMT manufactured, high performance and stable performance
Dust-proof, Anti-light interference
Anti-RF interference (20V/m-1GHz)

VS-WY200 Smoke Alarm Technical Parameters

Working voltage: DC 9V battery or AC220V, AC110V
Static current: <25uA (average value)
Alarm output: <35mA
Alarm indicator: RED LED FLASH
Sound level: 85dB/3m
Wireless receive/send RF:433MHz
RF distance: 200m(in the open area)
Working condition: -10°C+50°C
Dimension: 128*38mm
CRITERION APPLIED:GB4715-2005; EN14606; UL 217

DETECTING AREA: 80 square meters when the horizontal height is 6m to 12m,60 square meters when the horizontal height is below 6m. The accurate parameters please refer to fire auto- alarm system design  standard GB50116-98
