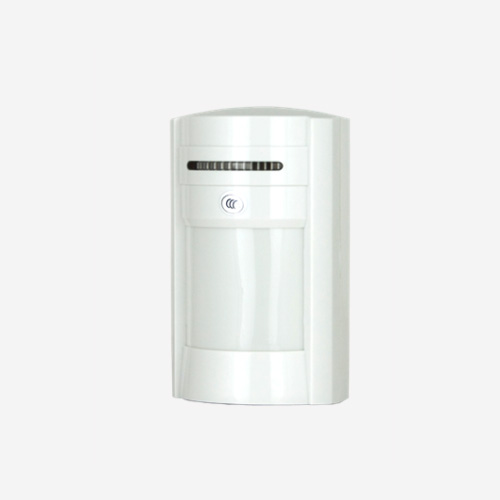

PIR Motion Sensor with Junction Box Bracket DC9-24V

PIR Motion Sensor with Junction Box Bracket DC9-24V
5.0/5 rating (2 votes)

ED683 is a professional wired PIR motion sensor for intrusion detection applications. This PIR motion sensor utilizes high quality dual-element passive infra-red sensors and has combined advanced signal analysis to offer reliable detection. Including true temperature compensation cirucit design to filter false detection caused by environmental factors. It includes patent 86 type junction box for easy installation, N.C. and N.O. alarm output to work with different types of alarm controllers and panels.

Product Specification

  • Model: ED683
  • Dual-element PIR motion sensor
  • 86 type junction box bracket for easy installation
  • Auto temperature compensation technology
  • Environment temperature immunity
  • Alarm indicator On/Off adjustable
  • Power input protecting circuit design
  • Normal close and Normal open alarm output
  • Product dimension: 135mm x 70mm x 56mm
  • Working voltage: DC9-24V
  • Working current: <=25mA
  • Infra-red: dual element infra-red sensor
  • Detection range: distance 12 meters/ angle 110 degree
  • Anti-tamper: Normal close (NC)
  • Alarm output: NC/NO
  • LED indicator: ON/OFF
  • Installation: wall mounted
  • Installation height: 2-2.4m
  • Anti-white light: 6500Lux
  • Working temperature: -10°C - 55°C
  • Working humidity: <=95%
  • Temperature compensation: Auto

DC24V PIR Motion Sensor with Junction Box
