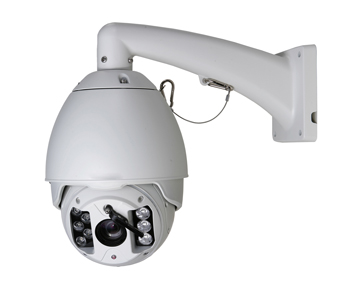

Pro 2 megapixel 1080P IP PTZ camera with IR

Full HD 1080P PTZ Network Camera
4.3/5 rating (8 votes)

Unifore EP2845 1080P IP PTZ dome camera is advanced speed dome camera which is suitable for surveillance for commercial building, warehouse, parking lot, traffic and public utilities, as well as bank. It adopes TI "Davinci" DM368 as its core component, combination with 1/2.8 inch 2 megapixel progressive scan CMOS image sensor, it can capture ultra clear and crisp images up to maximum 1920x1080P in 25/30fps. Adopting a 20x optical zoom lens, the EP2845 is able to capture details, also allow user to zoom in to enlarge the specific area.

The camera module is located in IP66 rated weatherproof rugged aluminum alloy housing to protect the camera against corrosion, rain, dust within a wide temperature range of between -40 to 55. It has anti-surge and anti-lightning protection for outdoor reliable usage. Additionally, this camera with mechanical brush cleaner to automatically clean lens window when it's snowing and raining. This is pan/tilt/zoom dome camera, and it can support pan rotation at 360° with high speed of 200°/s, tilt rotation at 180°, zoom using its 20x optical zoom. Plus, it has 128 presets and support cruise, pattern, tour scanning and other advanced PTZ features.

This is professional speed dome camera which adopts many advanced technologies. It has 120dB wide dynamic range to make sure it provide balanced exposure for all regions of surveillance area, and 2D+3D noise reduction to minimize the video noise. It supports privacy mask and motion detection functions, also can recognize the facial within 100 meters. This is network security dome camera, it has mechanical IR-cut filter for true day/night surveillance, and built-in 8pcs infrared LEDs for long range night vision, dual streaming technology. Most of all, it's conforms of Onvif standard, which can connect any third-party's IP devices or software.

1080P 2 megapixel HD resolution

It has 2 megapixel IP camera module, which adopts latest 1/2.8 inch 2 megapixel progressive scan CMOS image sensor, and working with TI Davinci DM368 image processor for achieving 1080P high-definition video streaming.

D1 vs 2 megapixel resolution

Sony 3.27 Megapixel 20x Zoom HD Color Block Camera

It is equipped with FCBEH6300 Sony HD color block camera which designed for applications that require dynamic, flexibility and high resolution images. This new developed camera model can deliver full 1920x1080P HD resolution.

FCBEH6300 3.27 Megapixel 20x Zoom HD Color Block Camera

Mechanical removable IR-Cut Filter

Built-in mechanical removable IR-cut filter. Automatically switch between day mode and night mode. Using the special filter to prevent invisible light enter into image sensor to achieve true color reproduction images at day. Improving night sensitivity via allowing all light enter into image sensor.

Removable IR-Cut filter

MJPEG/H.264 Dual Codec Technology

Adopting industrial standard H.264 video compression. Dual stream encoding transmission (H.264 baseline compression) and main stream provides local live view and storage, sub-stream to provide network transmission, 3G remotely access. Offering bandwidth and storage efficiency without compromising the quality of video.

H.264 vs MPEG4 vs MJPEG

Long range IR with LED array

This is outdoor IP67 weatherproof grade dome camera, which is equipped with 8 pieces high power infrared LED array to provide long distance infrared illumination at night. It has smart IR control to adjust the power of infrared night, as well as illuminating angle. Moreover, it has one mechanical brush cleaner.

LED array PTZ camera

ONVIF Compliance – Greater compatibility

This product meet the Onvif (Open Network Video Interface Forum) standard which can be compatible with third-party's IP devices. The Onvif is a common protocol for the exchange of information between different IP devices from different manufacturers. With the Onvif standard, the IP camera can work with any NVRs, VMS (video management software).

Onvif IP camera

Application areas

Working Areas: banking, education, hospitals, prisons, stadiums, railway, port, Plaza, River, forest, scenic, parks, streets and other places.

Traffic, parking lot, sear port, industry district, bank, hospital

Download the product's brochure: EP2345/EP2845

IP PTZ Dome Camera Gallery

HD 1080P IP PTZ Camera Sony HD 1080P IP PTZ Camera Sony Outdoor HD 1080P IP PTZ Camera Outdoor 1080P IP PTZ Dome Camera

Get our latest price list

Subscribe to get the latest updates.

Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.

Technical Information

Model EP2845
Name 1080P HD IP PTZ Dome Camera-Pro version
Camera Image Sensor 1/2.8" Sony Exmor Progressive Scan CCD
Effective Resolution 2 megapixel  (1080P:1920*1080P; 720P:1280*720P; D1:640*480)
Minimum Illumination Color 0.1Lux  B/W 0.01Lux;IR ON 0Lux
White Balance Manual/Automatic
AGC Manual/Automatic
S/N >50dB
Back Light Compensation Manual / Automatic
Electric Shutter 1/25~1/10,000s
Day/Night Mode Removable IR-cut filter
Focus Mode Manual/Automatic
Lens Focal length 4.7-84.6mm, 20x optical zoom
Zoom speed Estimate 2 seconds
Horizontal field of view 55.2-2.9
Focal number F1.6-F3.5
Function Pan rotation 360°continues rotation horizontally
Pan speed Keyboard speed:0.4°/s~300°/s,preset rotation speed:300°/s
Tilt rotation -5°~90°
Tilt speed keyboard speed:0.4°~150°/s,preset rotation speed:250°/s
Digital zoom Support
Total number of presets 128
Cruise 4 modes, each cruise can add 27 presets
Pattern 4 modes
Loss power memory Support
Scan function Preset /Cruise scan / Pattern scan / Automatically scan
Horizontal scan 4
Port Alarm Input 1CH (Optional)
Alarm Output 1CH (Optional)
USB Port Audio/USB (Optional)
Network Port 1 RJ45 10/100Base-T port
Power Port


Reset button


Security Mode With account and password protection
User authorization PTZ control、Audio Intercom、Video recording、alarm control、config、playback、check log、Internet view
Users Maximum 10 users online live view simultaneously
OSD overlay 5 different OSD overlay, such as: Date, time, Bit rate, Title
Privacy mask 4 regions
Dual streaming Support
Image resolution Main Stream:1920x1080; 1280×720
Audio Two way audio intercom
Video loss alert Sending E-mail, alarm signal output
Motion detection 8 motion zones, sensitivity:0-9 grade
Motion alert Alarm output、PC event、recording、capture、FTP upload、Send Email
Alarm Input NC/NO
Alarm Input alert Alarm output、PC event、recording、capture、FTP upload、Send Email
Common functions Support PC time sync, remote upgrade, remote reboot, remote reset and local log query
General Power Voltage DC15V (4A)
Power Consumption 25W max
Working Temperature Outdoor:-40℃~65℃, Indoor:-10℃~50℃
Working Humidity >90%
Dimension Φ250×330mm
Ingress rate IP66(Outdoor),6000V anti-surge, anti-lightning protection
Installation method Wall mounted or ceiling mounted
System requirements OS:Microsoft Windows XP、Windows 7 Ultimate Edition / Professional
Browsers:Internet Explorer、Firefox、Chrome、Opera、Safari
