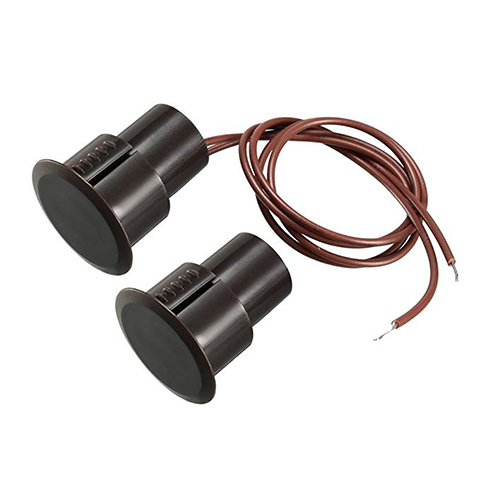

Recessed Mount Magnetic Contact Switch for Wooden Doors/Windows

RC-36 is a button style magnetic contact switch designed for wooden windows and doors. The product supports recess mount installation to be concealed inside doors/windows. It adopts high quality reed switch to provide durable performance. The magnetic contact switch can work with a diversity security equipment including intrusion alarm panel, perimeter security system, access control and IP video surveillance system. RC-36 has white and brown two different color for selection. It's also called as wired door/window sensor to provide reliable and cost-effective intrusion detection for entry-points of your house/building.

Specification

Model: RC-36
Dimension: 23*25mm
Sensing distance: 20-30mm
Output: NC
Material: ABS, white/brown
Cable: 1007UL#24AWG260mm
Electrical: Max. 10W, Max. 100V voltage, Max. 0.5A
Application: Any kind of wooden doors/windows
Package: 10pcs/bag, 800pcs/carton 20KG
