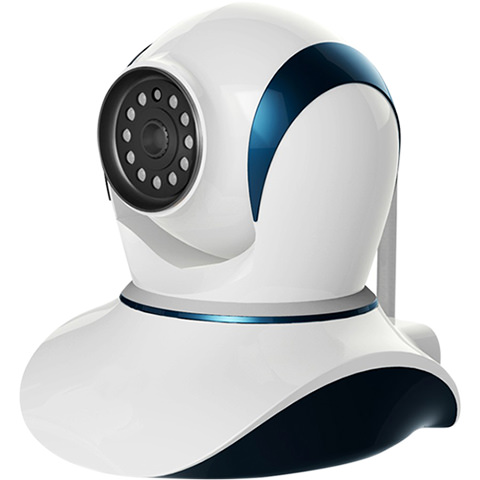

Smart Pan/Tilt Wi-Fi Camera Support Intrusion Alarm Sensors
Smart wireless security camera supports intrusion alarm monitoring, you are able to add a wide range of wireless alarm sensors to have your own 24/7 video monitoring and burglar alarm detection system. Relying on Internet connection, the camera can send instant push notifications to multiple users, they also can receive email alerts with snapshot.
User-friendly free app allows you to tailor your cameras to your lifestyle, while providing the high level of safety that you expect. Users can easily add the camera to the app without running Ethernet cable. You’re able to watch HD live stream and record video on its built-in memory card then playback right from smart device.
Super easy integration with third-party hardware and software, the camera can deliver video stream to any brand network video recorders, free and paid video management software, network attached servers, stream servers and more by using universal RTSP and ONVIF protocol.
Product highlights
*Megapixel CMOS Sensor IP camera
*3.6mm 2-megapixel IR lens
*With IR-CUT filter
*Support two-way audio and dual stream
*Support microSD/TF card and network storage
*With Cloud technology
*Support 2.4GHz 802.11 b/g/n Wi-Fi
*Support up to 64pcs wireless alarm sensors (433MHz)
*Built-in horizontal and vertical control motor (rotation)
*11pcs IR LEDs, IR disatance 10m
*Support IOS/Android mobile remote monitoring
*Up to 5 online users to watch real-time video stream
*Motion video detection
*Send push notification to max. 3 users
*Send email with snapshots
*Make sound when alarm occurs
*Arm/disarm system via app & remote control
*Plug and play (P2P) technology
*Global cluster servers to ensure stable connection
*Free video management software
*Wired 10M/100M adaptive ethernet port
*DC5V 2A power supply input
Pan Tilt Indoor Camera
Indoor type camera supports 355 degree pan and 125 degree tilt rotation to have your entire room covered. The camera offers near 360°panoramic viewing without blind spots. You can pan & tilt right from smartphone, tablet, computers, NVRs, VMS. Included swivel bracket, you can simply place camera on desk/bookshelf or mount it on wall/ceiling. You are able to reverse image to have correct view if you install it on the ceiling.
720p/960p/1080p Resolution
By employing megapixel CMOS image sensors, the camera can capture crystal clear video with high clarity, supporting DWDR, 3D noise reduction, ATW etc image processing technology can enhance image quality further. The camera has three different resolution models including 1-megapixels, 1.3-megapixels, 2-megapixels. Included 850nm wavelength Infrared illuminators, support night vision function, the illuminating distance reaches up to 10 meters. Having an Infrared cut filter between lens and image sensor allows camera to shoot vivid color video in the day time, while maintaining high sensitivity at night.
DIY Alarm Monitoring System
Using the smart camera you can setup a wireless alarm monitoring system, you are able to extend the system by adding as much as 64pcs wireless security sensors. The system uses Internet to transmit alarm signal, so that you don’t need to pay monthly monitoring fee, or buying additional burglar alarm which may require GSM/3G/4G SIM card. In order to provide you a comprehensive system, we are able to provide various kinds of wireless sensor as below:
- PIR motion sensor: crucial to burglar alarm monitoring, PIR motion sensors help detect movement in rooms and hallways and on stairs to alert you of an intruder or presence of people.
- Magnetic contact: the most reliable security sensor, can be installed on all kinds of windows and doors or any open/close objects. Using them can effectively monitor your entry-points that intruders may break-in.
- Smoke detector: smoke detector can detect the density of smoke, once smoke reaches the threshold can trigger fire alarm, you are able to get notified immediately if there is fire threat presence.
- Carbon monoxide detector: carbon monoxide is colorless and tasteless, but it’s a kind deadly gas. Carbon monoxide detector can issue warning if there is CO leakage inside your house.
- Flood detector: we also offer flood detector to work with this smart camera, you can place the sensor on floor of basement to receive early alert if water leakage happens.
- Accessories: offering remote controls to work with the camera, you are able to use them to arm/disarm the system remotely if you are not convenient to use smartphone, offering wireless signal repeater to extend wireless signal coverage, so that you can use wireless sensors as much as possible.
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
What's included in standard package?
- 1x 720/960/1080p pan & tilt camera
- 1x USB power adapter
- 1x 8 feet USB cable
- 1x Wall/ceiling mountable swivel bracket (screws included)
- 1x Quick-guide manual
Specification
- Models: GW-IPDH08-1.0MP/1.3MP/2MP
- Power: 5V DC, 2A
- Smartphone App: 2CU, Yoosee
- Processors: Dual-core CPU Hi3518E/GM8135S/GM8136S (embedded with DDRAM)
- Network interface: Ethernet 10BaseT/100BaseTX, Auto-MDIX, RJ-45
- Wireless interface: IEEE 802.11n 90-150 Mbps, IEEE 802.11g 6-54 Mbps, IEEE 802.11b 1 - 11 Mbps
- Transmit power: 14.5dBm typically @ 802.11g 17.5dBm typically @ 802.11b
- Receiver sensitivity: 54Mbps: Typical -73dBm @ 10% PER, 1Mbps: Typical -86dBm @ 10% PER
- Image sensor: 1/2.7" Progressive Scan CMOS SC1145, SC1135, SC2045
- Image function: Automatic exposure control, automatic white balance, automatic gain control, automatic brightness control.
- Light sensitivity: 0.1 Lux ( IR LED off ), 0 Lux (IR led on)
- Night vision: up to 10 meters
- Lens: 3.6mm, F1.2, viewing angle: 75°
- Video compression: H.264 Baseline Profile
- Frame rate: 25fps (self-adaptive)
- Pan & tilt: pan 355 degree, tilt 120 degree
- Audio: Audio Input & Audio Output
- Audio compression: G.711ALAW
- Security: Device username/password protection
- Video display: ID/password protection
- Firmware: upgrades via smartphone App remotely
- Supported standard: ONVIF 2.4
- Alarm function: 433.92MHz, 100 meters transmission distance
- Works with up to 64 wireless security sensors
- Push notification:instant alarm push notification to max. 3 users
- Snapshot: instant email with snapshots
- On-board storage: Built-in microSD/TF card, up to 64/128GB
- Video management software: CMSClient.exe
