Magnetic Contact Switch Intrusion Sensor for Roller Shutter

MC-59 is a heavy duty magnetic contact switch can effectively detect open and close of object. It’s a kind of proximity sensor by using electromagnetic filed, it can protect entry-points of any critical infrastructure or valuable housing though working with a wide range of security equipment. The magnetic contact switch consists of reed switch and magnetic strip two parts. The detector will trigger an alarm once you separate them apart up to 50-70mm. For instance, it can work with alarm monitoring system, once intruder opens monitored door, alarm will be triggered instantly. It also can be linked to alarm inputs of your video surveillance system (IPC, DVR, NVR) to notify security operators in event of unwanted incidents occur.

Specification

Model: MC-59
Suitable for roller shutter/garage doors

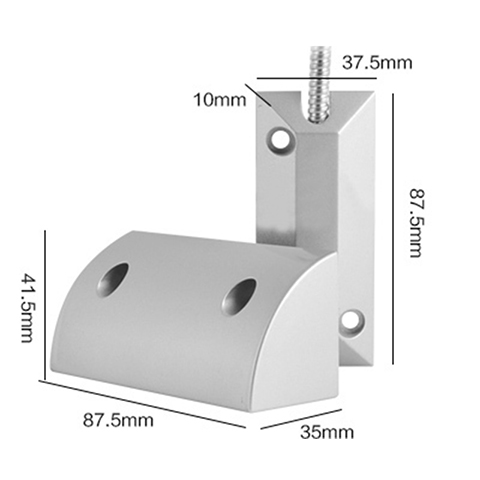

Dimension: 87.5*37.5*10mm 87.5*41.5*35mm
Sensing distance: 50-70mm
Type: normally closed (NC)
Power rate: max. 10W, max. 100V voltage, max. 500mA current
Material: Alloy-Zn
Wire: 1007UL#22AWG 550mm (380mm stainless protection tube)
