Wireless PIR motion detector 433MHz

Wireless indoor PIR motion sensor 433MHz
4.0/5 rating (2 votes)

Name: Wireless  PIR Motion Detector
Model: VS-WH400

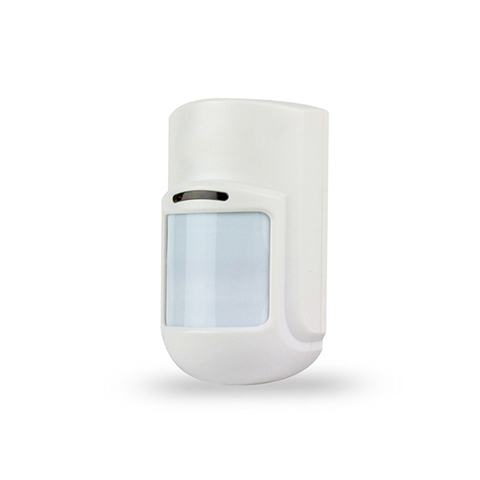

VS-WH400 is a compact Dual Sensor Motion detector which has been designed special for residential installation. It has features as the strong ability to catch signal, false & lost alarm is very low, low power consumption and true temperature compensation.

Equipped with professional pigmented optical lenses to resist the interference of white light, High technology, Smart manufacture, elegant appearances are all shown in our products. Its detective range is 12M, detection angel is 110 degree.

VS-WH400 is equipped  swivel bracket for ceiling, wall or corner mounting.

Download Product Flyer in PDF: Click here !

PIR Motion Detector Main Features:

Upgraded PIR detector with enhanced performance
Wide angle & Long Range Detection Area
Programmable pulse count
Enhanced temperature compensation
Minimized false alarm by adopting 2 sensors
Inter-changeable lenses
Tamper function(option)
Adopted noise-free Photo Mos Relay
Optional Multi-Angle Brackets
Possible to turn on or off LED alarm indicator

PIR Motion Technical Parameters

Power supply
DC 9V (“6F22 ”battery)
Static Current <25uA
Alarm current
Infrared sensor
Dual element, high sensitivity, low noise
Mounting Method
wall or corner  mounted with bracket
Code  form
2262  or 1527
Radio frequency
433MHz or 315MHz
Radio distance
100m (open area)
Low battery indicator Yellow LED
Alarm indicator
Range of coverage
11 distance, 8 middle, 5 vicinities
Detection angle
12m, 110 degree
Installation method
wall mounted or hanged in corner with mount bracket
Installation height
1.7 to 2.5m (2.2m is recommended)
Anti RF interference
10MHz-1GHz  20V/m
Environment humidity
<95% RH (no congelation)
Pulse count
1 / 2 / 3, selectable
Temperature -10°C~50°C(14°F~122°F)
106*62*46mm (801R13)
