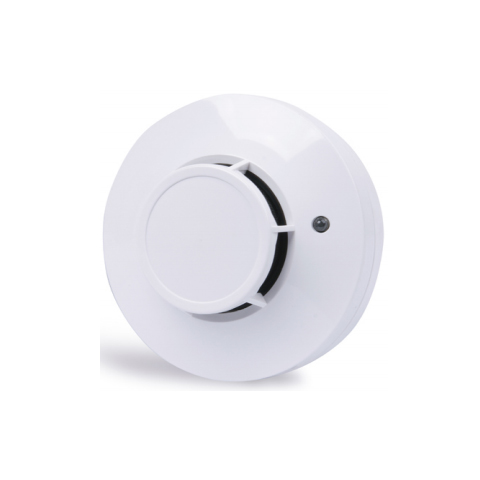

Fire Security Wired Photoelectric smoke detector
Name: Wired Smoke Detector
Model: VS-YY500
Download Smoke Detector Flyer in PDF: Click here !
Wired Smoke Detector Features:
MCU processing adopted
Auto-reset or reset by power off
Strong adaptability for circumstance
SMT Design, High Stability
9-35V DC wide voltage operating range
Low standby current
Stainless steel shield,anti-RFI(20V/m-1GHz)
Dustproof, mothproof, anti-white light
Wired Smoke Detector Technicial Parameters
Operating voltage: DC 9V~35V
Standby current: 55uA
Alarm current: 35mA@ DC12V
60mA@ DC24V
Alarm indication: red LED on
Operating temperature: -10? +50?
Operating humidity: 95% RH
Detecting area: 80 square meters(with the installation
height of 6m-12m), and 60 square meters (with the installation
height of less than 6m)
Dimension size:104 mm dia.*47mm deep
