Comparison between different wireless reed switches/magnetic contact

Reed switch is the basic sensing device, which widely used in security field (including burglary alarm, access control, home automation, Intelligent control...and more).  It has many other names such as magnetic contact or door sensor. The reed switch becomes to the most reliable and cost-effective intrusion sensor in burglary detection area. With different connection methods, the sensor can be divided into hardwired reed switch and wireless reed switch. Hardwired reed switch with similar performance. Today, we are focusing on the wireless reed switch.

If you are buying wireless alarm systems from China, you may find many types of wireless door sensors with similar price. As one of professional alarm equipment manufacturer, we also offer different types of wireless reed switches for user's selection. Different models of sensor without different performance and features. We herein make the comparison between these models.

The internal structure of wireless reed switch

The wireless reed switch consists of three vital parts: Reed switch (high quality reed switch can extend the service life of wireless magnetic contact), Wireless RF transmitter, Battery contact spring.

Wireless reed switch working principle

A reed switch works by having two magnetic wires (reeds) in a glass tube that are either in an off or on position when at rest. Then a magnetic source is introduced to either make the reeds come together (to connect the current) or separate (to stop the current). When the reeds come together or separate, it will send a signal to encoding chip (IC) which generate a unique communication data (encoding), convey it to wireless RF transmitter and emit the RF for wireless connection.

Comparison on different wireless reed switch

Different security manufacturers provide different wireless reed switches with varies of shapes, and different encoding technology, also working in different wireless frequency. Typically, different types of wireless reed switch can not compatible with alarm panel from different manufacturers, even these wireless sensors are working at same frequency (315MHz, 433MHz, 868MHz, 912MHz).

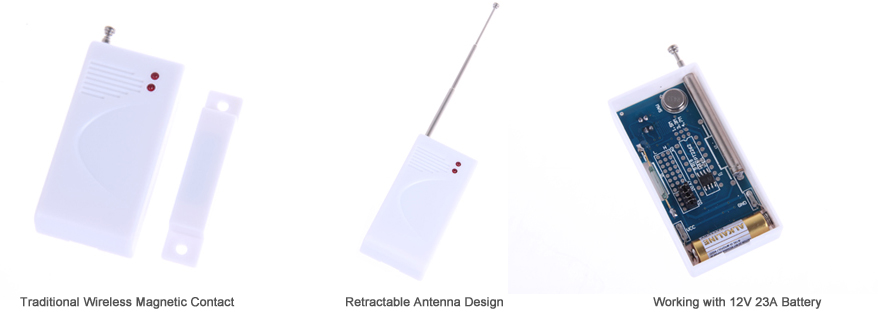

Cost-effective traditional wireless magnetic contact

Our Model: VS-WMC, this is a traditional wireless magnetic contact with reliable reed switch, you can find these type of sensors in majority of Chinese manufacturers. This type of wireless sensor with features: Lowest cost wireless magnetic contact, with Retractable antenna for wireless transmission to increase the signal distance, coming with 3M adhesive sticker for easy installation.  Working with 12V 23A battery, without screws and reserved holes. Wireless transmission range: 100 + meters, battery services time: 12+ months.

Cheap wireless magnetic contact

Our model: VS-XWMC.  This is a widely used new design wireless door magnetic contact sensor. It adopts high quality reed switch for long service. Similar to VS-WMC, it works with 12V 23A battery. It included with 3M adhesive sticker for installation, also comes with screws and reserved holes design on sensor. Wireless transmission range 100 meters, battery services time: 12 months.

Low cost wireless reed switch with smart function

Our model: VS-OWMC, this is a door sensor in G60-Ultimate alarm kit. It's adopted with new design, comes with extra panic button design on it. The wireless transmitter part with removable bracket, easy for installation, coming with 3M adhesive sticker for easy installation, reserved with holes for screws installation. Different from other sensors, this sensor is operated by the AA size battery (1.5V), which can be bought from local drug store in anywhere. The wireless transmission range: 100 + meters (in open space), the battery services time: 12 months (varies by different capacity battery).

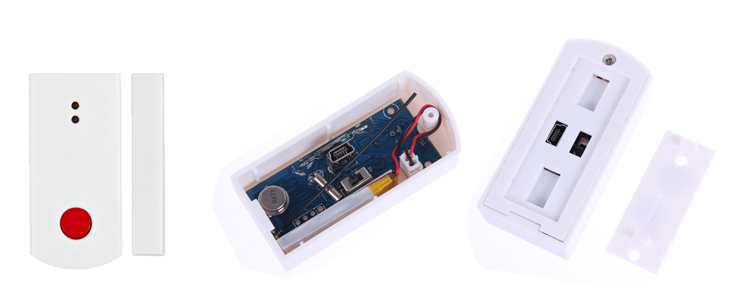

Wireless reed switch powered by Li-ion battery

Our model: VS-PWMC, wireless reed switch with smart function. Different from other reed switches, this door sensor is operated by rechargeable battery (Lithium-ion, 3.7V 200mA). The door sensor comes with standard Mini-USD jack for recharging. After the first recharge, the sensor can work at least 12 months. It takes 8 hours for recharge. You can use the computer, desktop, cellphone charger. The sensor with removable bracket for easy operation and maintenance. Included with 3M adhesive sticker for easy installation, with screws and reserved holes. Extra panic button design on the wireless transmitter. Wireless transmission distance: 100 meters (in open space). Battery services time: 18 + months (after full recharged), 10,000 recharging times.
