H.265 4K NVR 4/8/16-Channels with PoE free AEeye App

H.265 is the latest video compression standard, which will ultimately replace the existing H.264. It not only promises to reduce 50% file size therefore save up to 50% network bandwidth and video storage space, but also be able to retain the image quality to the highest, these benefits that H.265/HEVC can provide have been testified by BBC laboratory.

As the H.265 emerges into the market after the release of its standard, yet it has been integrated into high-end network video recorders. Today, we would like to introduce you our new series inexpensive H.265 NVR products that have the capability to handle 4K video resolution up to 4 channels, 8 channels, 16 channels video inputs.

4-channels and 8-channels NVRs perfectly meet the demands of medium and small video surveillance applications. Our new series 4CH/8CH H.265 4K NVRs can make you benefit from the latest top-notch technologies which will become predominant in the industry. It’s noted that these NVRs only work with IP video streams, they don’t have physical video inputs (BNC) to connect with AHD/HDCVI/HD-TVI security cameras.

1# Triple decoding H.265/H.264/MJPEG supported

The new network video recorders support triple video compression standard. It can accept video streams from your existing H.264 or H.265 IP security cameras. Owning this recorder enables your IP video surveillance system to be a unified industrywide system that is as future-proof as possible.

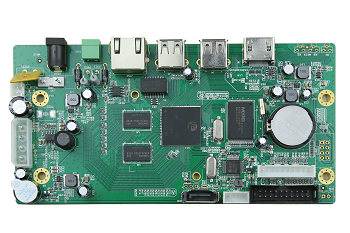

These NVRs are based on reputable Hisilicon 4K SoC – Hi3798MV200 which adopts ARM Quad-core architecture and has a Mali-450 GPU built-in, a powerful HiVXE 2.0 video engine is embedded into this processor to offer multimedia playback in various video standards (offer maximum 4K 60fps 10-bit H.265, or 4K 30fps H.264/MJPEG decoding capability). Hisilicon Hi3789M V200 was released in 2016, despite being used in IP security NVRs, this SoC is a new cheaper SoC from Hisilicon for 4K TV Boxes.

2# 4K 12-megapixel resolution video inputs

Why 4K is important? Up to 4K 12-megapixel resolution, it bring you an impressive video surveillance performance that not only enable a single IP camera to cover a wider area, but also provide high clarity image even after being digitally magnified. The image resolution is selectable from HD to 4K UHD, the entire supported resolution range including 12-megapixel, 8-megapixel, 4-megapixel, 3-megapixel, 1080p (2-megapixel), 720p (1-megapixel), this offers a great flexibility to support from standard HD resolution to Ultra HD resolution security cameras.

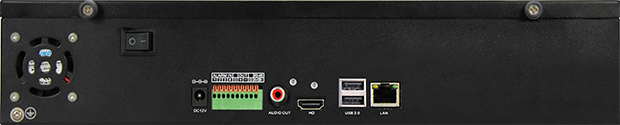

The NVRs are equipped with one HDMI port, this HDMI video port has the capability to transmit video and audio data, while the supported video resolution can reach up to 4K ultra high definition. These NVRs don’t have VGA ports, please make sure you have a 1080p HDTV monitor with a HDMI port.

3# Up to 2 hard drives max. 8TB storage

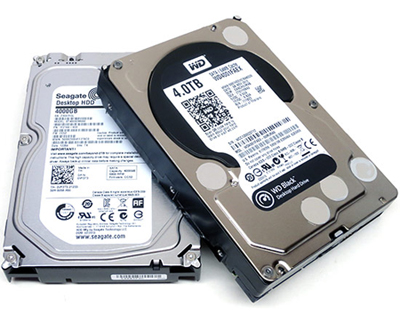

Intending to provide sufficient video storage capacity, these NVRs offer two SATA ports, can be installed with 2 pieces 3.5” size desktop/surveillance HDDs, and each HDD’s capacity size can be 4TB. The verified/tested compatible HDDs including Seagate Barracuda (ST500DM002, ST3500413AS, ST1000DM003, ST2000DM001, ST3000DM001, ST4000DM000) and Western Digital (WD5003ABX, WD10EZEX, WD2002FAEX, WD4001FAEX, WD30PURX, WD4001FYYG), as well as Samsung ST500DM005, Toshiba DT01ACA300.

4# Robust ONVIF compliant NVR

Similar to other NVRs from the competitors, these NVR support regular video management features, for instance, offering multiple video recording modes, various video playback options according to events, calendar, time. It comes a wizard to help you quickly setup the system. The NVR system comes with free P2P protocol to make remote video monitoring over smartphones (AEeye App for iOS & Android) become less cumbersome.

For those users are looking for cost-effective IP video surveillance solution, we offer H.265 4K NVRs with PoE ports. Using the PoE NVRs, the IP security cameras can directly plug to the NVR which will provide both power supply and data transmission to the connected camera, PoE NVRs can offer you a centralized power supply and lower cost solution.

Being compliant with ONVIF specification (Profile S, version 2.4), these NVRs can work with cameras from third-party manufacturers (more than 1000 global manufacturers, 50,000 different security products). The NVR has 1x 3.0 USB ports to support super high-speed data transmission and 2x 2.0 USB ports for mouse operation and regular speed data transmission. 4CH alarm inputs and 1CH alarm output enables the NVR can be integrated with other security detectors and systems hence to offer a smart solution to your security application.

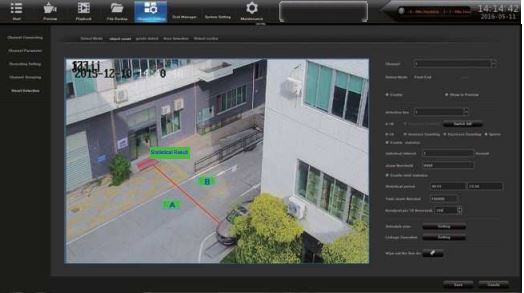

5# Smart Video Analytics 2.0

In addition to the regular motion detection that the most majority of NVRs provided. Utilizing the latest smart NVRs that incorporated with latest smart video analytics 2.0 technology. Our 4K H.265 NVR can achieve object counting, object detection and region detection and perimeter detection. All these smart video analytics can be achieved by NVR itself,  without the cooperation from IP cameras.

Object counting can automatically count the number of object within monitored area, for instance, it can calculate how many customers inside your grocery store. Users can use the mouse to draw a region, once an object enters or leaves the region, will trigger an alarm. Drawing a virtual line to protect the perimeter, once the virtual line is breached, users get notified or respond to the alarm with user-defined actions (sending email alerts, recording video, sending alarm signal via Alarm I/O).

Smart video analytics 2.0 can not only make video monitoring become smart and efficient, it's also a powerful business productivity tool. Our smart 4K H.265 network video recorders are especially designed to meet the requirements of vertical security markets including the retail, banking, hotel and industrial sectors.
