HDTVI 1280H HD Analog Camera HD8060 + Aptina 239
Introducing the breakthrough solution HD-TVI, which is latest analog high definition technology can achieve real HD monitoring with 1080P/720P without delay, the HDTVI has many advantages such as long transmission up to 300m-500m over Coax, high interoperability and compatibility.

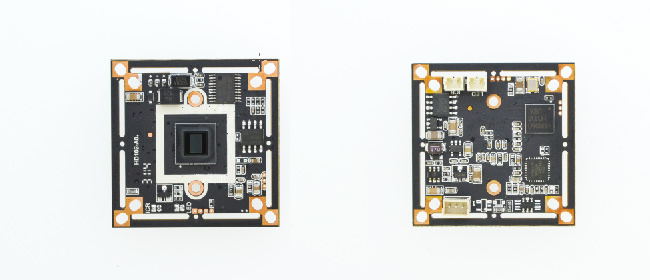

HD8060 + Aptina 239 + Techpoint
- Adopting HD8060 high performance DSP (Digital Signal Processor)
- Techpoint TX Chip for long distance video transmission
- Aptina 239 1.0 megapixel CMOS Image Sensor
- 720p HD image, effective pixels reach 1280*720
- High quality image, no video latency, no compression
- Coaxial cable transmission up to 500 meters
- Utilizing OSP PCB, 32*38 dual borders module design
Technical Information
- Image sensor: 1/4 CMOS Aptina 239
- Effective pixel: 1280*720(25fps/30fps/50fps/60fps) default - 25fps
- TV System: PAL/NTSC
- Horizontal resolution: 1280H
- S/N Ratio ≥49dB
- Low illumination: 0.01LUX
- Back light compensation (BLC): AUTO
- Electrical Shutter (AES): AUTO/ 1/50(1/60)-1/100,000sec
- Auto White Balance (AWB): AUTO
- IR Control Input: DC 0V to 3V/8V
- OSD Menu: 16 different languages
- Video Output: HD-TVI (720P)
- Video Storage: 1H≈1.32 GB(4mm lens)
- Working Voltage: DC12V/97mA ±8mA
- Working Temperature: -20℃ --- 50℃
