Introducing Hikivision IP dome camera with WDR DS-2CD4324FWD
If you want to monitor the entry-points such as front door, lobby, passage...etc places which may encounter the strong-light condition. Hikvision DS-2CD4324FWD probably is your ideal choice. It's an vandal-proof IP dome camera with WDR function.
Hikvision DS-2CD4324FWD is a 2.0 megapixel vandal-proof dome camera equipped with 1/2.8 inch progressive scan CMOS image sensor, built-in ICR and infrared illuminators to provide day&night HD video monitoring. It adopts H.264 video compression, the maximum resolution up to 1080P (1920x1080) with high speed rate 60fps.

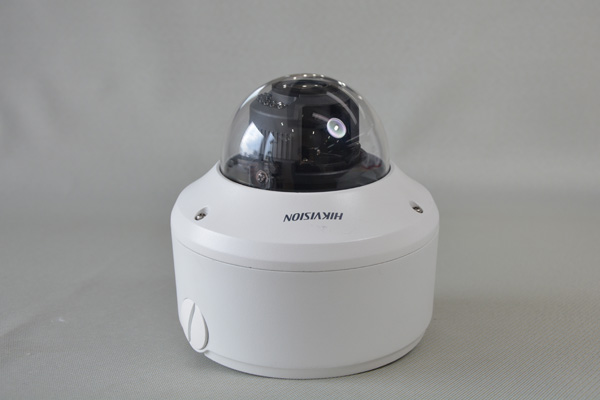

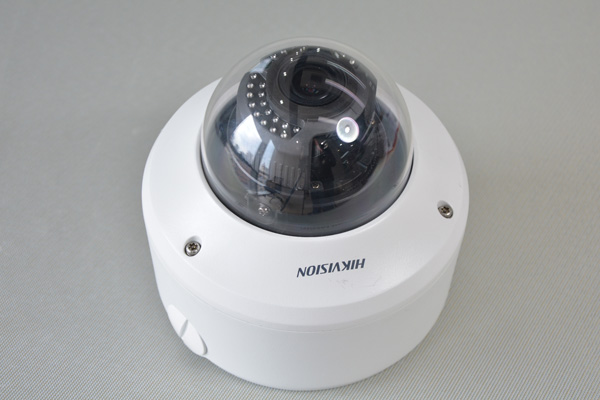

This dome camera adopts Hikvision's unique aluminum metal structure design, added with vandal-proof dome cover, it looks like an UFO. The installation wires can go through the preserved holes.

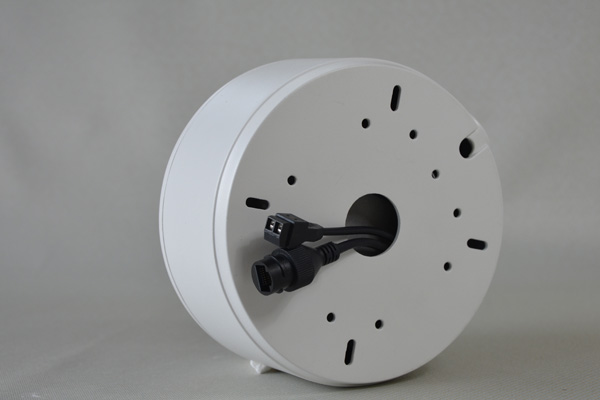

On the bottom, we can see the connectors including RJ45 (supports PoE), and Power Connector. There are many holes which allow users to mount camera on the ceiling or wall.

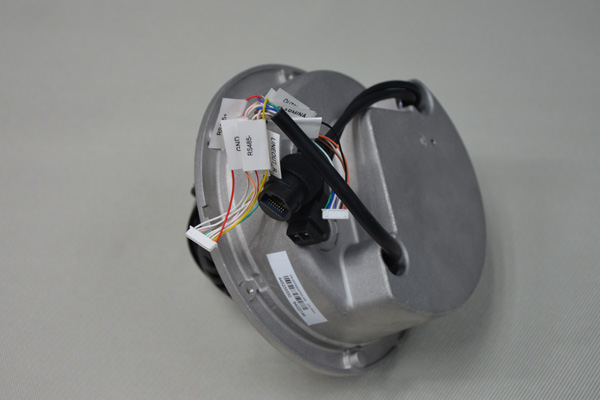

Remove the external housing, we can see other connection wires including Alarm I/O (Input & output), AC24V、DC12V plus PoE three different power connection methods.

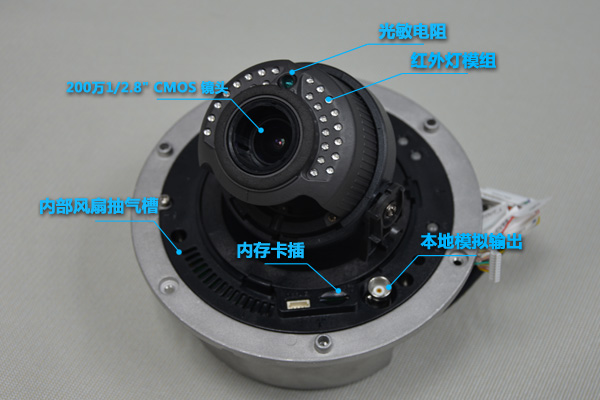

From above picture, the camera module consists of 2.0 MP lens, Photoelectric resistor, MicroSD card slot, local BNC video output. This camera supports maximum 64G Micro SD/SDHC/SDXC local video storage. The equipped infrared LEDs can illuminate up to 30 meters, meanwhile it has internal fan to cool the system, which in turn to provide reliable performance.
In addition to above mentioned basic features, this camera also support defog, digital stabilizer, Anti-strong light and more advanced functions. Additionally, it's a smart IP camera supports cross zone detection, motion detection, facial recognition.
From test, we conclude that Hikvision's DS-2CD4324FWD can provide crystal images even working under challenging lighting environment. By the way, users also can choose to use motorized zoom lens, heater to enable camera work under extreme cold environment.
DS-2CD4324FWD Main Features
- Up to 1920 x 1080 high resolution (up to 60fps)
- Image Sensor:: 1/2.8" Progressive Scan CMOS
- Signal System: PAL/NTSC
- Min. Illumination: 0.02 Lux @ (F1.2, AGC ON), 0 lux with IR 0.027 Lux @ (F1.4, AGC ON), 0 lux with IR
- Shutter time: 1 s to 1/100,000 s
- Lens: 2.8-12mm @ F1.4, angle of view: 113-33.8° 8-32mm @ F1.4, angle of view: 31.2°~10.2°
- Auto Iris: DC drive
- Adjustment Range: Pan:0° - 355°, Tilt: 0° - 75°, Rotation: 0° - 355°
- Day& Night: IR cut filter with auto switch
- Wide Dynamic Range: 120 dB
- Digital noise reduction: 3D DNR
- Focus: Motorized VF lens(-Z model)
- Video Compression: H.264 / MPEG4 / MJPEG
- Bit Rate: 32 Kbps ~ 16 Mbps
- Audio Compression: G.711/G.726/MP2L2
- Triple Streams: Yes
- Max. Image Resolution: 1920 x 1080
- Frame Rate: 50Hz: 50fps(1920 × 1080, 1280 × 960, 1280 × 720) 60Hz: 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
- Third Stream: Independent setting, up to: 50Hz: 25fps (1920 x 1080), 60Hz: 30fps (1920 x 1080)
- Image Settings: Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser
- BLC: Yes, zone configurable
- HLC: Support
- Smart Defog: Support
- EIS: Support
- ROI: Yes, up to 4 configurable areas
- Picture Overlay: 128 × 128, BMP 24bit, zone configurable
- Network Storage: NAS
- Alarm Trigger: Intrusion detection, Defocus detection, Motion detection, Face detection, Dynamic analysis, Tampering alarm, Network disconnect, IP address conflict, Storage exception
- Protocols: TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour(SIP optional)
- Security: User Authentication, Watermark, IP address filtering, anonymous access
- System Compatibility: ONVIF, PSIA, CGI
- Communication Interface: 1 RJ45 10M / 100M ethernet interface
