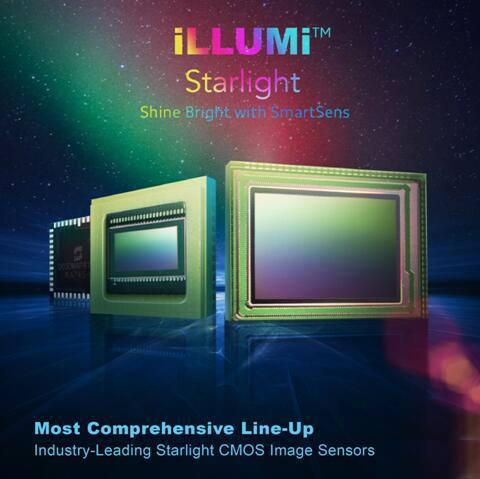

SmartSens iLLUMi Starlight CMOS Sensor SC5300 SC2300 SC1200

Chinese domestic CMOS image sensor manufacturer – SmartSens recently released iLLUMi series CMOS image sensors featuring starlight sensitivity, the new family including SC5300, SC2300 and SC1200 which can be able to shoot color image under extreme low light conditions.

As the emerging CMOS sensor producer, SmartSens CMOS image sensors are widely used in security cameras, iLLUMi is a kind of innovative pixel technology, it has higher sensitivity to the light spectrum between visible and near infrared regions, this pixel technology enables the image sensor to capture high clarity color image under star lighting conditions.

According to the SmartSens Technology, this new series CMOS image sensor can achieve B/W video shooting under nearly 0Lux condition, which means the iLLUMi powered cameras can see what human eye can not see.

Among them, SC5300 is a 1/2.5” progressive scan CMOS image sensor owns 5-megapixel (2592x1944) effective pixels. SC2300 is a 2MP CMOS image sensor adopts 1/2.8” optical design, both SC5300 and SC2300 employ SmartClarity technology to achieve the star light low illumination performance. SC1200 is a 1MP CMOS image sensor offers 1280x720p HD resolution, this image sensor starts mass production on this month, and the mass production of SC2300 is scheduled on June 2017, SC5300 is scheduled on August 2017.

iLLUMi technology offers many advantages can enable your camera to shoot color video under low illumination conditions, this eliminates the usage of Infrared light or white light etc artificial lighting sources. By eliminating the artificial lighting components, your camera can be much more compact and also the power consumption will drop significantly. As we know, the excessive heat generated by the IR LEDs will impact on sensor’s imaging performance, also impair the stability of the camera. Therefore iLLUMi series starlight CMOS image sensor can help clients to produce high stable and eco-friendly security cameras. The new series image sensors are welcomed by SmartSens’agents, now samples are ready to provide.

What’s iLLUMi?

iLLUMi, a trade mark of SmartSens Technology, is an innovative pixel technology developed to capture the image in the visible-light and near infrared light regions, resulting the amazing quality with over two or more times the sensitivity in the near infrared light region.

The introduction of iLLUMi technology allows SmartSens to better compete with similar technologies e.g. Sony Starvis. As there is no technical comparison between the iLLUMi and Starvis,, it's unknown which is better between them.

SmartSens Profile

SmartSens Technology is an emerging CMOS image sensor developer and manufacturer, as one of the "national thousand talents plan" campaigns, the company was established by the Dr. XUCHEN along with several elite engineers from Silicon Valley in 2011.

Compare to the global leading rivals, the SmartSens is able to provide low-cost CMOS image sensors can be used in various HD video applications. The SmartSens CMOS image sensor families have been widely used in video surveillance, vehicle cameras, industrial cameras, and other consumer electronics.
