300-450MHz ASK Receiver SYN500R

315/433MHz (300-450MHz) ASK Receiver RF Module SYN500R

The SYN500R is a multiple purpose, 3V-5.5V ASK RF receiver that operates at 300-450MHz with typical sensitivity of -109dBm. SYN500R is the 433MHz RF module in Erobot camera (D1201-A/B/C, D1000, D1001).

The SYN500R functions as a super-heterodyne receiver for OOK and ASK modulation up to 10kbps. The down-conversation mixer also provides image rejection. All post-detection data filtering is provided on the SYN500R. Any one-of-four filter bandwidths may be selected externally by the user in binary steps, from 1.25KHz to 10KHz. The user need only configure the device with a set of easily determined values, based upon data rate, code modulation format, and desired duty-cycle operation.

SYN510R is the SOP16 package version. SYN520R is the SOP8 package version.


  • - 108 dBm sensitivity, 1kbps and BER 10E-02
  • Frequency from 300MHzz to 450Mhz
  • Supply Voltage from 3V to 5.5V
  • Image Rejection Mixer Data-rate up to 10Kbps (fixed-mode)
  • Low power, 6.0mA, 3.3V @ 433.92MHz, 3.9mA, 3.3V @315MHz, continuous on data rates to 10kbps (Manchester Encoded)
  • Analog RSSI Output
  • No IF filter required
  • Excellent selectivity and noise rejection
  • Maximum input RF power -20dBm
  • Ambient temperature -30 degre to +85 degree
SYN500R Application Diagram


  • Automatic Remote Key-less Entry (RKE)
  • Remote controls
  • Remote fan and light control
  • Garage door and gate openers

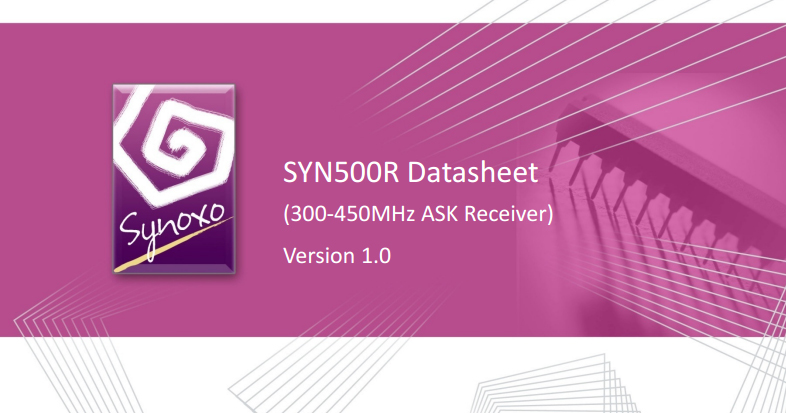

Download the SYN500R DataSheet: http://support.hkvstar.com/file/SYN500R_SYN510R_SYN520_datasheet.pdf
