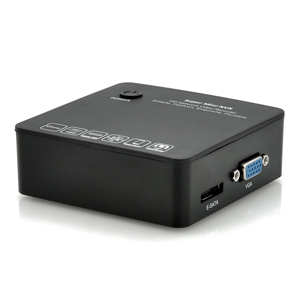

4CH NVR for home office
EN4243 is economical network video recorder with mini compact size design, it's suitable any IP based video surveillance systems for both home and office, as well as small enterprises. The EN4243 is embedded with Linux operation system, supporting 4 IP cameras, with recording resolution at 1080P (1920x1080) at 30fps. The system supports industrial standard H.264 codec video compression to reducing storage space and without compromising video quality, as well as minimize the network bandwidth. Similar to other models, this model can support playback four channels with 960P/720P resolution, and one channel playback with 1080P.
EN4243 is advanced NVR, supporting recording quality selection, dual stream technology, multiply recording modes including manual, schedule, motion detection, alarm detection recording methods. It has one standard SATA HDD port for video storage, and built-in E-SATA port for extending to unlimited storage space, supporting USB, network video backup function enable the system can offer reliable video recording and without data lose. Additionally, the NVR supports motion detection and privacy mark, making your surveillance system becomes intelligent video surveillance system.
EN4243 is 1080P HD NVR, it is equipped with VGA video output, and HDMI video output, fully compatible with HD system, working with HDTV and HD monitor. Included with a mouse for easy operation. It's compatible with Onvif 2.0, working with majority of IP cameras around the world, such as Hikvision, Dahua, Sony, Panasonic, Sanyo, Bosch, Honeywell, Samsung, Vivotek, Histream, Launch, Axis and more.
Key features
- Economical NVR with compact size design
- Supporting 4 units IP cameras
- Compatible with Onvif 2.0
- Recording capability 4CH 1080P/960P/720P
- Recording resolution 1920×1080,1280×960, 1280×720 at 30fps (real time)
- 4 channel playback at 960P/720P in real time
- 15x digital zoom to enlarge images
- Support smart motion detection, region configurable
- Support privacy mask function
- Supporting recording modes: Manual, Schedule, Motion Detection, Alarm detection
- One standard SATA HDD port
- Advanced HDD management to avoid data lose, excellent HDD protection.
- e-SATA port design to extend unlimited storage
- Advanced video backup, supporting USB, U-disc, SATA HDD, Network
- Built-in virtual server, remote surveillance via Internet Browser or Smartphone
- Supporting Smartphone surveillance, offering free iPhone, Android apps
- Compact, slim design for economical applications
- Support USB Wi-Fi Dongle and USB 3G dongle wireless connection
- 3G dongle: ZTE-MF100, HUAWEI-E156G, VITION-E1916, ZTE-AC582, STRONGRISING-ESUV, HUAWEI-E153, HUAWEI-EC1261, ZTE-AD3812
Get our latest price list
Subscribe to get the latest updates.
Your email address will never be shared with any 3rd parties
and you will receive only the type of content for which you signed up.
Technical information
| Model | EN4243 |
| General | |
| IPC Channel | 4 Channel |
| Stream quality | 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps |
| Video Resolution | 1080P(1920×1080)30fps/960P/(1280×960)/720P (1280×720)30fps 1～30fps |
| Recording Mode | Manual, Full Time, Scheduled, Motion Detection, Alarm Event |
| Playback | 4CH playback in 720/960P mode;1CH 1080P playback in 1080P mode |
| Recording storage | One SATA HDD ports, One e-SATA port |
| Backup method | USB HDD, e-SATA HDD, U-disc, Network |
| Remotely surveillance | |
| IE browser | Support LAN management, client management and remote IE visit |
| Dual stream | Individual setting by each channel |
| Mobile Phone Surveillance | Support (iPhone，Windows Mobile，BlackBerry，Symbian，Android) operation system |
| Wireless | Support 3G and WIFI |
| Compatibility | Onvif 2.0, compatible third-party IP cameras, DVS. |
| Mouse Zoom | 15x digital zoom, click any area and zoom in or zoom out on the image by mouse |
| Motion Detection | Motion detection area selection, sensitivity 6 grade selection |
| Search | By time (calender), backup, by event, |
| IP video input | 4 Channel 1080P/960P/720P IP camera inputs |
| Video Output | HDTV HDMI, VGA |
| Video compression | H.264 |
| Audio Compression | Standard G.711 |
| Audio Output | N/A |
| Audio Talk | Two-way intercom |
| Alarm Input | N/A |
| Alarm Output | N/A |
| Network | RJ45 Ethernet port(10M/100M) |
| RS485 | N/A |
| USB | Two USB 2.0 ports |
| E-SATA | One External SATA port |
| SATA HDD Ports | Two SATA HDD ports |
| Electrical | |
| Power Supply | DC5V 2A |
| Consumption | ≤10W（without HDD) |
| Mechanical | |
| Dimensions | 88mm×88mm×32mm |
| Weight | 250g |
| Ingress protection | None/Indoor usage |
| Connectors | RJ-45 10BaseT/100BaseTX, VGA, HDMI, USB |
| Environmental | |
| Protection Class | Indoor/Outdoor |
| Operating Temperature | -10°C to 55°C |
| Operating Humidity | 20% ~ 80% (non-condensing) |
Radovan Matic
Pls send me price list.
Thanks in advance
reply
Alex P
Pls send me price list.
Thanks
reply
ESSIEN
Please send price list of these DSRs.
reply
Pall Arpad
Send me price list.
reply
Unifore
Hello Pall Arpad,
Thanks for your message, we already forwarded your message to our sales team, they will contact you as soon as possible.
reply
Pritesh Patel
What is the price for mini NVR?
reply
Tim Pearson
Hello, Please send me your price list & catalog. Thanks
reply
Marc
Hello,
This product works with POE function ?
If not, what type of your cameras could work with ?
reply
Unifore
Hello Marc, Thanks for your E-mail, this model doesn't contain individual PoE ports. If you are looking for 4CH NVR with PoE, you need to take a look on this model: http://www.hkvstar.com/item/4-channel-network-video-recorder-with-poe.html
reply
Dana Brown
Please send price
reply
Alex
Is there is a way to reset the password? I forgot my password, now I can't log into my Super Mini NVR :(
reply
Unifore
Hi there,
It's impossible to reset the password. If you forget the password, you need to contact your seller. Giving the current date and time of your NVR, then they can use password generator software to give you a temporary super admin.
reply
Alex
Appreciate the feedback. I was finally able to figure out a solution. I forgot I had my caps on when I changed my pass. The solution was to install the Video Monitor Software that came on the disc, once it scanned the network it listed my Super Mini NVR with the password visible. Phew almost had a brick.
reply
Kent
I bought a JOOAN TC-734 720P Cameras 4CH WIFI NVR Wireless Security CCTV system, but hate their NVR software, can I purchase this NVR and use it instead?
Please send me price!
reply
Unifore
Hi there,
This NVR is not compatible with your WiFi NVR kit. The reason is your WIFi NVR adopts WiFi hotspot to communicate with WiFi cameras. This NVR doesn't support WiFi hotspot.
reply
Michal Hajný
Hello,
Please send me the latest update for Super Mini NVR. I have a problem with adding cameras. Camera can not be found.
Thank you Best regards, Michal.
reply
Jackie
Hi there,
If the NVR could not discover the new IP cameras, my advice as below:
1. Making sure your IP camera is compliant with ONVIF (Profile S, version 2.4) standard.
2. Both IP cameras and the NVR should have correct network setting, all of them should connect to the same router.
3. When try to discover the cameras, please ticking/checking all protocols (including ONVIF, I8, I9, I12 etc).
We wrote an article to troubleshoot the connection problem:
http://www.unifore.net/ip-video-surveillance/troubleshooting-ip-cameras-connect-to-the-nvr.html
If the camera could be discovered, but didn't show image. This means the NVR's [Stream Type] setting is incorrect.
http://www.hkvstar.com/technology-news/china-hd-network-video-recorder-nvr-troubleshooting.html
reply
Boris Bringe
Dear Sir or Madam,
I need the PC client software. Unfortunately my cd is not readable. Please give me the link to the download. Thank you very much
reply
Unifore
Hi there, please find the CD content from our helpdesk website: http://support.hkvstar.com
reply
Vladislav
Hello,
After 1 year of use I've faced a problem with USB's - at first, USB HDD could not rotate spindle (some sound like "click-click-click" is hearing from 2.5" HDD box) and then a USB mouse have stopped working (no laser light) - it seems that USB has lack of power. In laptop, both mouse and hdd wirks fine. Which part should be reppaced (or fixed)?
Thank you
reply
Ivan
Good afternoon,
I have bought your mini NVR 8 ch, but using a software like Smart PSS don't find the NVR, it says time out connections.
I hace set up a fixed ip in my local network and using standad port 5050.
If I connect to NVR by Internet explorer browser I see the NVR but I can't save any configuration. If I connect directly on NVR using embedded system it sve the configuration.
HOW I can fix it? Have you a firmware upgrade?
Finally a last question, I have some ip camera that don't support onvif and rstp protocol only http, how I can visualize it?
reply
