Business Burglar Alarm Monitoring System

Burglar alarm system for business
5.0/5 rating 1 vote

High quality and versatile burglar alarm system specifically designed for business alarm monitoring solution. The security kit includes a set of self-contained hybrid alarm panel which supports both wireless and hardwired security detectors, including one wire-free PIR motion sensor to protect interior rooms and one wire-free magnetic contact switch to protect perimeter of your office/shop/store/warehouse.

Comparing with conventional security system, it’s new generation alarm system that supports smart function including Wi-Fi/Internet connectivity, receiving push notification alerts, remote control via smartphone and even home automation integration. It’s based on Tuya IoT platform and one app can support alarm monitoring, home automation (smart sockets, home appliances, smart lights…etc), IP video surveillance.

Unlike other alarm products in market, it adopts large size 4.3” inch color IPS screen support full touch control. Moreover, the system has built-in a RFID reader to support contactless control by using RFID keychain. 2G/GSM + Wi-Fi redundant design it still works even Internet/Wi-Fi service is outage. Instead of using smartphone app, it supports remotely control via short message (SMS).

The product supports self-monitoring and monitored alarm service. Self-monitoring mode, the system will notify up to five users when an alarm occurs. Monitored service mode, the system will submit alarm data to remote alarm receiving center via GPRS.

1# Alexa/Google Speaker Integration

It’s a truly smart system based on reliable and innovative IoT platform which enables it to support smart speaker integration. The system can be added to your existing smart speaker to support voice control. It’s compatible with Alexa echo, Google assistant, Xiaomi, Baidu, Dingdong and more.

2# Hybrid alarm monitoring system

Burglar system supports 100 wireless zones and 4 hardwired zones. It offers a great flexibility by allowing you to enjoy the advantages of both wireless and hardwired security sensors. Hardwired zones adopt EOLR design to supervise the loop, it can set off alarms instantly when wires are cut or short circuit. All zones are editable, you’re able to set zone name, zone type, bypass zone, delay on/off.

3# RFID Contactless Control

The system includes two pieces of RFID keychain, swipe them you’re able to arm and disarm the system more conveniently. It’s able to support 10 pieces of RFID keychain. In addition to RFID keychain, the kit includes two remote key-fobs for remotely control. It also supports remotely control through smartphone app (Android & iOS) anywhere anytime.

4# 4.3” Touch IPS screen

Modern sleek self-contained alarm panel includes a 4.3 inch large IPS screen not only provide high definition UI but also supports full touch control. Users are able to program and operate the system more feasibly. The UI/menu system supports 10 different languages, including English, French, Spanish, Portuguese, Italian, Dutch, Polish, Russia, Chinese.

5# Versatile alarm monitoring

In addition to burglary alarm monitoring, it supports fire, CO, flammable gas, flood alarm monitoring. You’re able to extend the system by adding a wide range of security sensors. Doorbell function, can make Dingdong sound when wireless doorbell button is pressed, SOS/medical alert function to summon aid in emergency. Hands-free cellphone, users can make phone call and read SMS. Moreover, it supports wireless power sockets, users can control home appliances through tapping menu on alarm panel, you also can set timer for each wireless power socket.

Product specification

  • Order ID: G107
  • App: Tuyasmart/Smart life
  • Users: up to 5 users
  • Alarm notification: auto-dialing phone call, SMS, push notification
  • Remote control: RFID, remote keyfobs, app
  • Wi-Fi: IEEE802.11 b/g/n 2.4G
  • Cellular: GSM/2G 850/900/1800/1900MHz
  • Screen type: 4.3” inch IPS color screen
  • Touch control: full captive touch control technology
  • Wireless frequency: 433MHz (default)/868MHz
  • Wireless zones: 100
  • Hardwired zones: 4, 10K EOLR
  • RFID frequency: 13.56MHz
  • RFID keychain: up to 10 pieces
  • Wireless socket: 8 pieces of wireless power socket
  • Speaker & microphone: built-in
  • Power input: microUSB DC5V (power adapter included)
  • Standby current: <=140mA
  • Working current: <=280mA
  • Backup battery: rechargeable 3.7V 1000mAH
  • Ingress protection: N/A indoor application only
  • Alarm panel dimension: 160Lx98Hx19W (mm)

Alarm Panel Structure

alarm panel structure

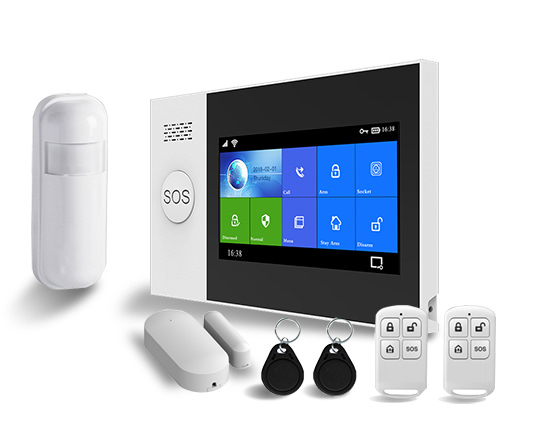

What's included?

  • 1x 4.3"inch touchscreen alarm panel
  • 1x Wireless PIR motion detector
  • 1x Wireless magnetic contact switch
  • 2x Remote key-fobs
  • 2x RFID keychain
  • 1x 108dB piezo siren
  • 1x DC5V power adapter
